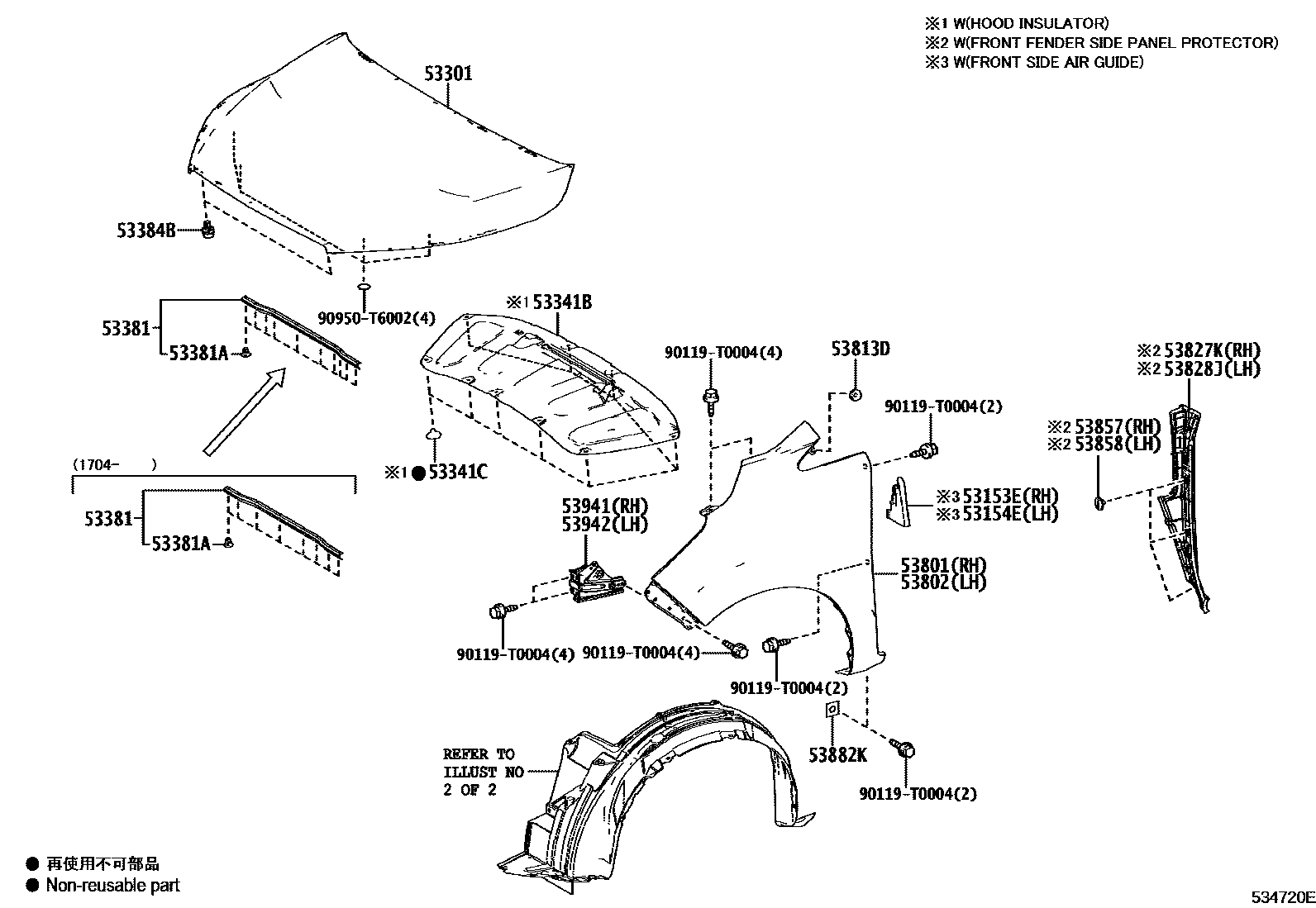

HOOD & FRONT FENDER

0001 1 0002 1

53153EGUIDE, FRONT SIDE AIR

main53153-0K120iGUN143..5F..(GCC,GEN)201511-201904

main53153-0K130iGUN142..5F..IND202011

53154EGUIDE, FRONT SIDE AIR, NO.2

main53153-0K130iGUN14#..(24V,24Z,28Z)..IND201604-202001

main53154-0K010iTGN140..(20G,20V)..MA201704-202012

53301HOOD SUB-ASSY

main53301-0K150iTGN140..5F..MA201511-201905

main53301-0K160iGUN142..5F..IND202011

53341BINSULATOR, HOOD

main53341-0K130iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main53341-0K240iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main53341-0K390iGUN142,TGN140..MA202101

PLANT ASSB

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×9iGUN142..5F..IND202103

(J)

main90467-T0014×9iGUN142..5F..IND202103

(L)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K060iGUN142..TH201511-201707

main53381-0K070iGUN14#..IND201604-202001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013×8iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

53384BCUSHION, HOOD, CENTER

main53384-0K040×2iGUN142..TH201511-201707

53801FENDER SUB-ASSY, FRONT RH

main53801-0K080iTGN140..5F..MA201511-201905

main53801-0K090iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main53801-0K120iTGN140..20V..MA201709-202012

MLM MALAYSIA SPEC

main53801-0K130iGUN14#,TGN141..(24V,27V,27Z,28Z)..IND201704-201709

MLM INDIA SPEC EURO5

53802FENDER SUB-ASSY, FRONT LH

main53802-0K080iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main53802-0K090iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main53802-0K120iTGN141..SRV202009-202304

MLM INDIA SPEC EURO5

main53802-0K130iGUN14#..(24V,28Z)..IND201704-202001

MLM INDIA SPEC EURO4

53813DEXTENSION, FRONT FENDER

main53813-47041×2iGUN142,TGN14#201511-201602

main53813-48011×2iGUN14#..IND201604-201607

main53813-71010×2iGUN142..TH201603-201707

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K060iGUN14#..(24V,24Z,28Z)..IND201604-202001

main53827-0K070iTGN140..(20G,20V)..MA201511-202012

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K060iGUN142..5F..24Z202011

main53828-0K070iGUN142,TGN140..(20Q,20V,24Q,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH);GUN143,TGN141..6FC..(27G,27SRV,28G,28V)..(GCC,LA)201511-202008

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010×3iTGN140..(20G,20V)..MA201804-202012

main53857-47011×3iGUN142..5F..24Z202011

main53857-47020×3iGUN14#..RHD..(24,28Z);GUN143..(IDNP,PHLP)..(28G,28V);GUN142,TGN14#..20Q,20V,24Q,24V,24Z,27V,27Z,28V;GUN142,TGN14#..(20G,24G,27G,27SRV)..(GCC,LA,MA,PHL,VN)201707-201803

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010×3iGUN143,TGN140..PHLP..(20G,28G)201804

main53857-47011×3iGUN142..5F..24Z202011

main53857-47020×3iGUN14#..RHD..(24,28Z);GUN143..(IDNP,PHLP)..(28G,28V);GUN142,TGN14#..20Q,20V,24Q,24V,24Z,27V,27Z,28V;GUN142,TGN14#..(20G,24G,27G,27SRV)..(GCC,LA,MA,PHL,VN)201707-201803

53882KSEAL, FRONT FENDER

main53882-0K020×2iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..PHL;GUN142,TGN141..6FC..(IDN,MA,TH,VN)202009

53941EXTENSION, FRONT END PANEL, NO.1 RH

main53941-0K060iTGN140..5F..MA201511-201905

main53941-0K080iGUN142..5F..IND202011

53942EXTENSION, FRONT END PANEL, NO.1 LH

main53942-0K050iGUN142..TH201511-201707

main53942-0K070iGUN14#..IND201604-202001

90119T0004

main90119-T0004

90950T6002

main90950-T6002

20 parts on this diagram · 2 diagrams in section
