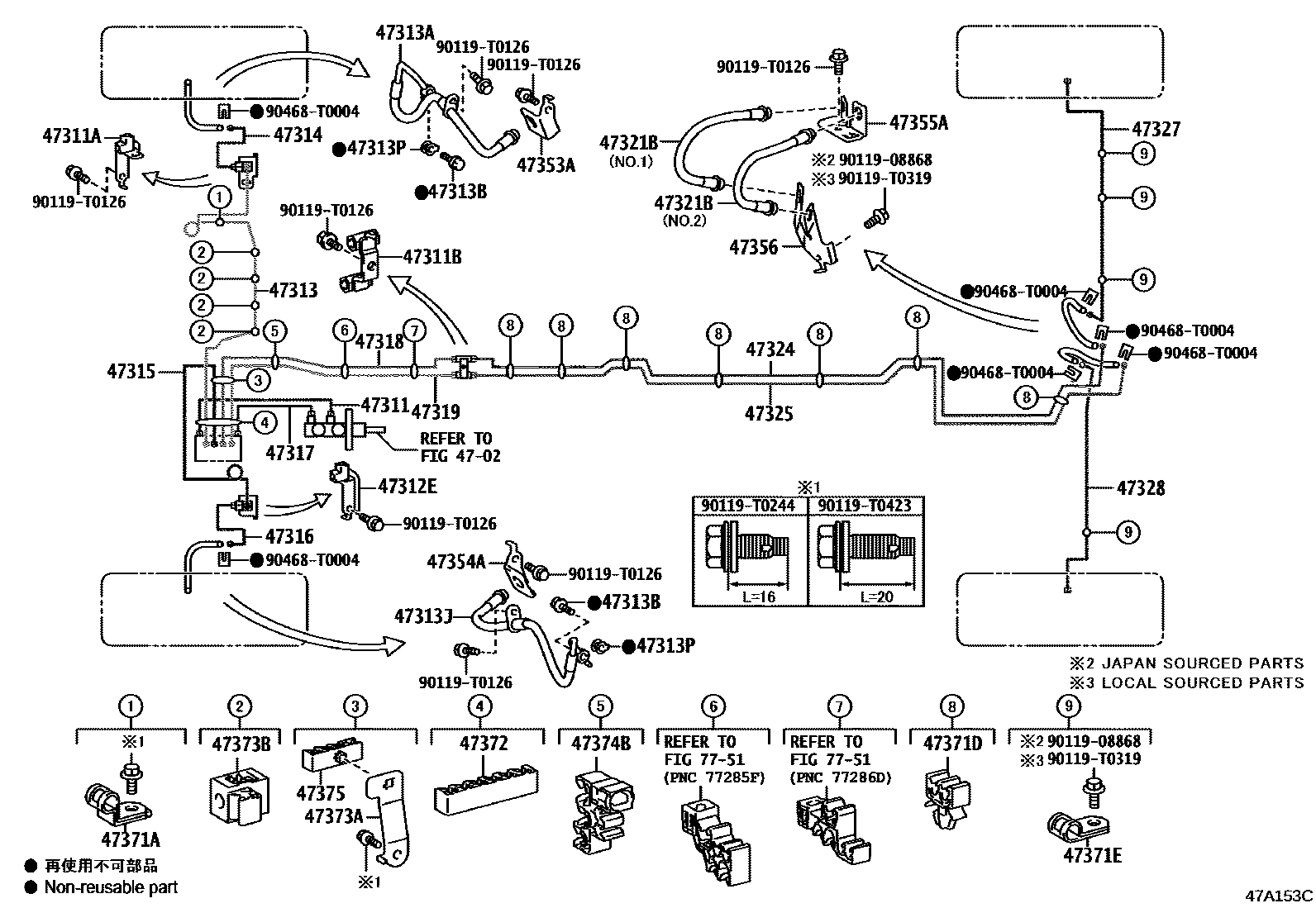

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE W(ABS) 0002 1BRAKE TUBE W(ABS) 0004 1BRAKE TUBE W(VSC) 0005 1BRAKE TUBE W(VSC) 0006 1BRAKE ACTUATOR W(ABS) 0007 1BRAKE ACTUATOR W(ABS) 0009 1BRAKE ACTUATOR W(VSC) 0010 1BRAKE ACTUATOR W(VSC)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020supersedes 47311-KK030iGUN142,TGN141..(24G,24V,24Z,27Z,G,N)..IND..(DCRL,HTWC)201511-202010

main47311-KK030iGUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND201511-202001

main47311-KK070supersedes 47311-KK060iGUN142..28V201604-201807

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10299iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main90412-T0005iTGN140..5F..MA201902-201905

(L)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGUN143,TGN141..5F..(GCC,GEN)201902-201904

(J)

main90412-T0007iTGN140..5F..MA201902-201905

(L)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10300iGUN14#,TGN14#..IDNP202007-202008

main90412-T0006iTGN140..5F..MA201902-201905

(L)

47313TUBE, FRONT BRAKE, NO.3

main47313-KK010iGUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND201511-202001

main47313-KK030supersedes 47313-KK010iGUN142..TH201511-201707

main47313-KK060supersedes 47313-KK040iTGN140..20V..VN201604-202009

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2094iTGN140..6FC..MA201511-202012

main90947-T2096iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2095iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main90947-T2097iGUN142..5F..IND202011

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

47314TUBE, FRONT BRAKE, NO.4

main47314-KK010iTGN140..5F..MA201511-201905

47315TUBE, FRONT BRAKE, NO.5

main47315-KK010iTGN141..(27G,27V)..IND201511-202002

main47315-KK030supersedes 47315-KK010iGUN14#..RHD..IDNP..6FC..(24Q,28G,28V); TGN140..IDN,TH;GUN142..5F..24Q;GUN142..RHD..(24G,24V)..(GEN,IDN)201511-202008

VEHICLE STABILITY CONTROL-W(*HSAC)

main47315-KK060supersedes 47315-KK040iGUN143..6FC..GCC;GUN14#..IDNP..(24V,28V)..(GEN,PHL)201604-202008

47316TUBE, FRONT BRAKE, NO.6

main47316-KK010iTGN140..5F..MA201511-201905

47317TUBE, FRONT BRAKE, NO.7

main47321-KK010iTGN141..(27G,27V)..IND201511-202002

main47321-KK020supersedes 47321-KK010iGUN142..TH201511-201707

main47321-KK040supersedes 47321-KK030iGUN142..28V201604-201807

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010supersedes 47322-KK020iGUN14#..RHD..IDNP..6FC..(24Q,28G,28V); TGN140..IDN,TH;GUN142..5F..24Q;GUN142..RHD..(24G,24V)..(GEN,IDN)201511-202008

VEHICLE STABILITY CONTROL-W(*HSAC)

main47322-KK020iTGN141..(27G,27V)..IND201511-202002

main47322-KK040supersedes 47322-KK110iTGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN143,TGN141..(27V,28,28E,28V,N)..(PHL,VN)202009

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030supersedes 47323-KK040iGUN142..TH201511-201707

main47323-KK040iTGN141..(27G,27V)..IND201511-202002

main47323-KK080supersedes 47323-KK150iGUN143..6FC..GCC;GUN14#..IDNP..(24V,28V)..(GEN,PHL)201604-202008

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2100iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

NO.2:REFER ILLUST.

main90947-T2101iGUN142..5F..IND202011

NO.2:REFER ILLUST.

main90947-T2102iTGN140..5F..MA201511-201905

NO.1:REFER ILLUST.

main90947-T2105iGUN142..5F..IND202011

NO.1:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK030iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

47325TUBE, REAR BRAKE, NO.5

main47325-KK050iGUN142..TH201511-201707

47327TUBE, REAR BRAKE, NO.7

main47327-KK200iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

47328TUBE, REAR BRAKE, NO.8

main47328-KK200iGUN142..TH201511-201707

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-0K011iGUN142..TH201511-201707

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-0K010iGUN142..TH201511-201707

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK030iGUN142..TH201511-201707

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK030iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007iGUN142,TGN140..GEN,SA; GUN142..GCC;TGN141..IDNP..5F..(27G,27SR)201511-201807

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGUN142..TH201511-201707

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iGUN142..TH201511-201707

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGUN142,TGN140..GEN,SA201511-201807

main90949-T1028supersedes 90949-T1029iTGN141..5F..27..GCC201708-201904

47373ABRACKET, TUBE CLAMP

main90949-T2003iGUN14#,TGN14#..LHD..(GCC,GEN,LA)202009-202304

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iTGN140..5F..MA201511-201905

main90949-T1030×4iTGN140..VN201511-202009

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGUN14#..IND201511-202001

main90949-T1032iTGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN143,TGN141..(27V,28,28E,28V,N)..(PHL,VN)202009

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028supersedes 90949-T1029iTGN140..TH;GUN14#..RHD..(20G,28V)202009-202304

main90949-T1029iGUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND201511-202001

main90949-T1031iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0244

main90119-T0244

90119T0319

main90119-T0319

90119T0423

main90119-T0423

90468T0004

main90468-T0004

40 parts on this diagram · 8 diagrams in section
