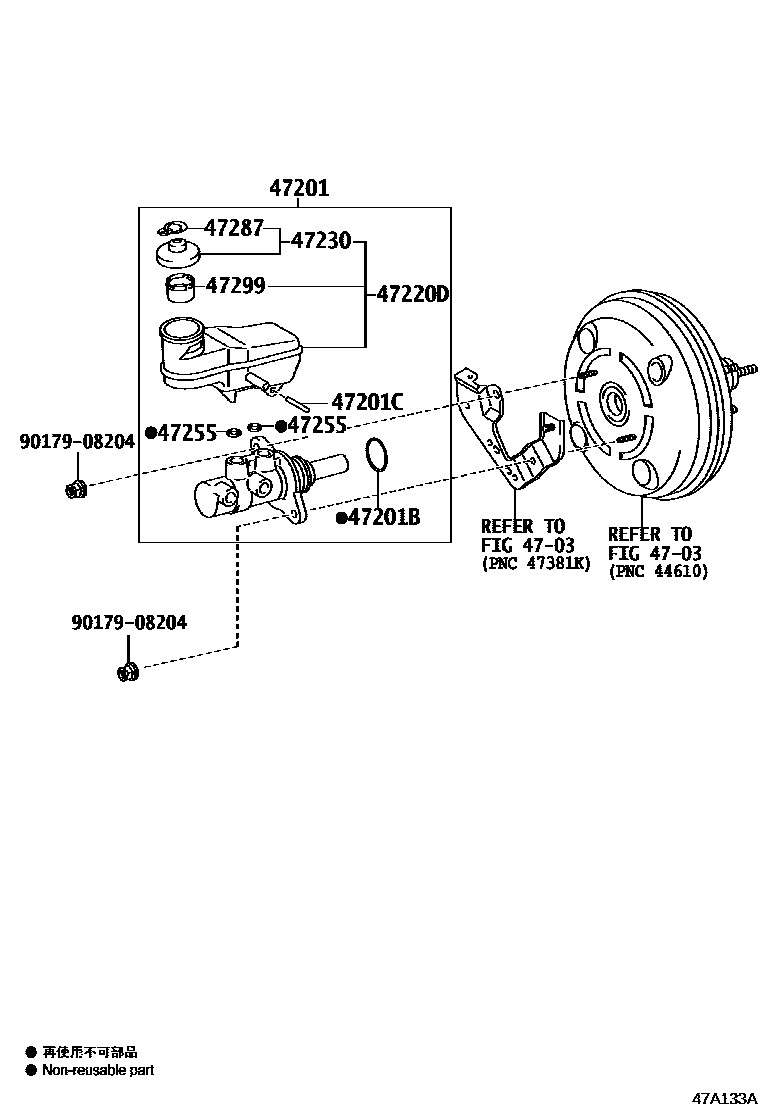

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K240iGUN142..SA201511-201807

VEHICLE STABILITY CONTROL-W(*HSAC)

main47201-0K240iTGN140..6FC..20E..MA201511-201904

main47201-0K250iTGN141..5F..IND201511-201904

main47201-0K260iGUN143,TGN14#..6FC..(20E,20G,27,27SRV,28E,28G)..(LA,PHL,VN)201511-201904

main47201-0K270iTGN141..27SR201511-201904

main47201-0K340iGUN143..28G..IND201604-202002

main47201-0K350iTGN141..5F..IND201604-202002

main47201-0K620iGUN142..6FC..(24,24G)..GCC201604-201904

main47201-0K630iGUN142,TGN141..5F..(24,24G,27G)..GCC201708-201904

main47201-0K640iGUN142,TGN140..6FC..(20G,20Q,20V,24G,24V)..IDN201511-201904

VEHICLE STABILITY CONTROL-W(*HSAC)

main47201-0K640iGUN142..TH201511-201904

main47201-0K650iTGN140..5F..MA201709-201904

main47201-0K660iGUN142..6FC..IND201604-202301

main47201-0K670iGUN142..MTM..IND..DCRL201604-202301

main47201-0K680iGUN142,TGN140..RHD..IDNP..6FC..(20G,20Q,20V,24G,24V)201905-202008

main47201-0K690iGUN142,TGN140..RHD..IDNP..5F201905-202008

main47201-0K700iGUN143,TGN14#..IDNP..6FC..(20E,20G,27,27SRV,28E,28G)..(LA,PHL)201905-202102

main47201-0K710iTGN140..5F..VN201905-202102

main47201-0K740iTGN140..20V..VN201905-202102

VEHICLE STABILITY CONTROL-W(*HSAC)

main47201-0K740iGUN143,TGN14#..6FC..(20,20E,20V,27V,28E,28V)..(PHL,VN)202009-202304

main47201-0K750iTGN140..20E..VN;GUN143,TGN140..5F..(28,28E,N)202009-202304

main47201-0K760iGUN142,TGN140..RHD..IDNP..6FC..(20G,20Q,20V,24G,24V)201905-202008

VEHICLE STABILITY CONTROL-W(*HSAC)

main47201-0K760iTGN140..MA201905-202304

main47201-0K770iGUN142,TGN140..5F..IDN202009

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGUN142..TH201511-202304

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202304

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K160iGUN142,TGN140..GEN,SA201511-202304

main47220-0K170iGUN142,TGN140..5F..IDN201511-202008

main47220-0K180iGUN143,TGN140..PHLP..6FC..(20E,28E,28V)201511-202304

main47220-0K190iGUN143,TGN140..PHLP..5F..(20E,28G)201511-202304

main47220-0K220iGUN142..6FC..IND201604-202301

main47220-0K230iGUN142,TGN141..MTM..(24,27G)201604-202301

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN142..TH201511-202304

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT004iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202304

main90029-48001iTGN141..IND201604-202301

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN14#..IND201511-202304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN142..TH201511-202304

9017908204

main90179-08204

10 parts on this diagram · 4 diagrams in section
