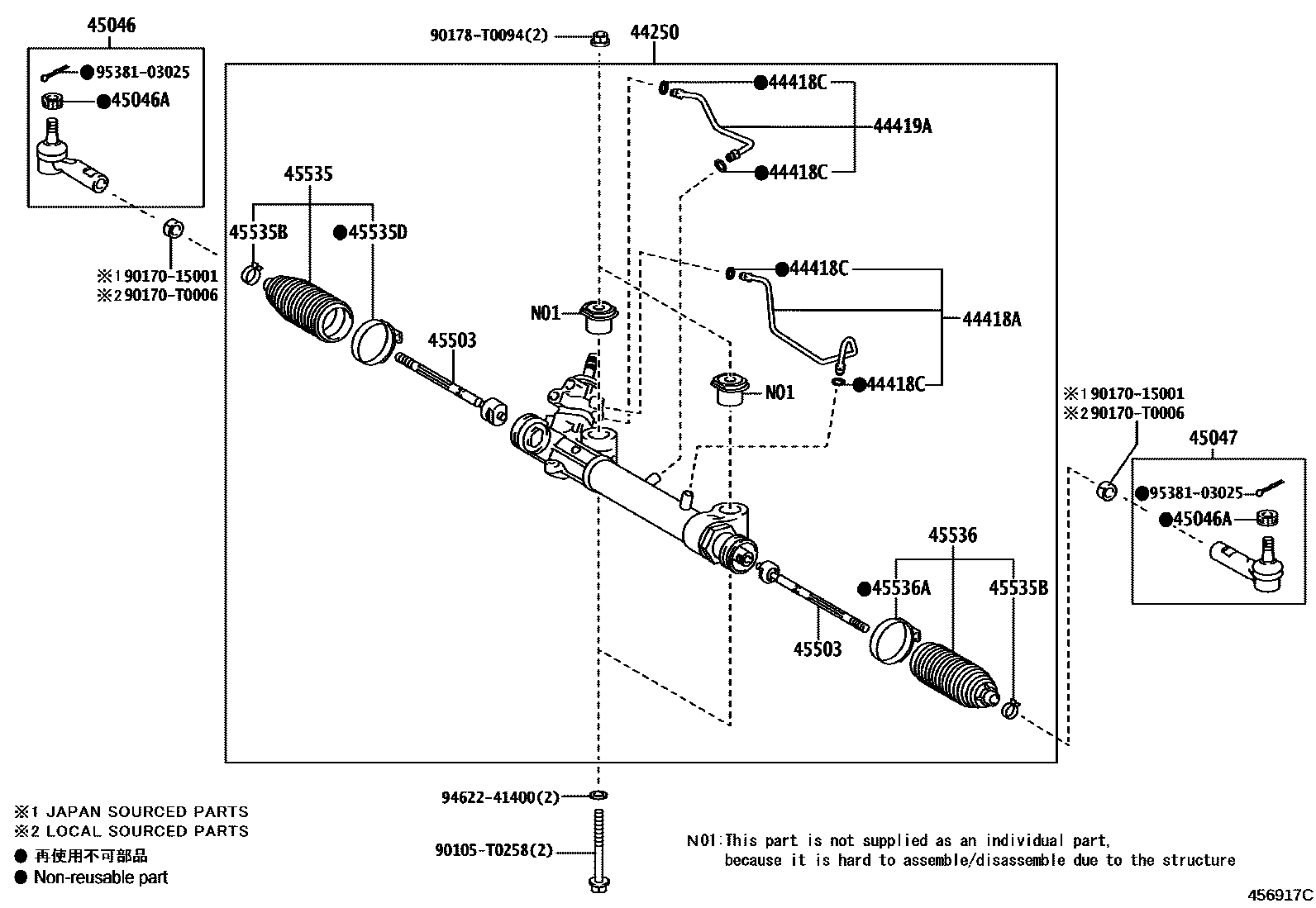

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0K600iTGN140..MA201611-201909

main44250-0K601iTGN140..MA201910-202012

main44250-0K602iTGN140..MA202201-202302

main44250-0K603iTGN140..MA202303

main44250-0K610iTGN141..IND201604-202002

main44250-0K611iGUN142,TGN141..IND202003-202010

main44250-0K612iGUN142,TGN141..IND202204-202301

main44250-0K613iGUN142..5F..IND202302

main44250-0K620iGUN143,TGN140..PHLP,VNP201604-201909

main44250-0K621iGUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N)201910-202106

main44250-0K622iGUN143,TGN14#..PHLP,VNP202112-202303

main44250-0K623iGUN143,TGN14#..PHLP,VNP202304

main44250-0K800iGUN14#,TGN140..RHD..IDNP201511-201909

main44250-0K801iGUN14#,TGN140..RHD..IDNP201910-202008

main44250-0K802iGUN14#,TGN140..RHD..IDNP202104-202201

main44250-0K803iGUN14#,TGN140..RHD..(GEN,TH)202202-202304

main44250-0K810iGUN14#,TGN14#..LHD..IDNP201511-201909

main44250-0K811iGUN14#,TGN14#..LHD..IDNP201910-202008

main44250-0K812iGUN14#,TGN14#..LHD..IDNP202104-202201

main44250-0K813iGUN143..IDNP..PHL202202

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K190iGUN14#,TGN140..RHD..IDNP201511-202008

main44418-0K200iTGN140..MA201611-202012

main44418-0K210iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main44418-0K220iTGN140..VN201511-202009

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032×4iGUN142..TH201511-201707

main90301-T0033×4iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K190iGUN14#,TGN140..RHD..IDNP201511-202008

main44419-0K200iGUN142,TGN140..MA202101

main44419-0K210iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main44419-0K220iTGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN143,TGN141..(27V,28,28E,28V,N)..(PHL,VN)202009

45046END SUB-ASSY, TIE ROD, RH

main45046-09780iTGN140..6FC..MA201604-202012

main45046-09830iGUN14#..IND201604-202001

main45046-09840iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0004×2iGUN142..TH201511-201707

45047END SUB-ASSY, TIE ROD, LH

main45046-09780iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

main45046-09830iGUN142..5F..IND202011

main45046-09840iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

45503END SUB-ASSY, STEERING RACK

main45503-0K040×2iGUN142..TH201511-201707

main45503-0K110×2iTGN140..6FC..MA201604-202012

main45503-0K120×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

45535BOOT, STEERING RACK, NO.1

main45535-09380iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main45535-09400iGUN142,TGN140..MA202101

main45535-09460iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46334×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main90466-T0004×2iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

main90466-T0005×2iGUN142,TGN140..MA202101

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0K010iGUN142..TH201511-201707

main45538-0K020iGUN142,TGN140..MA202101

45536BOOT, STEERING RACK, NO.2

main45535-09380iGUN142..TH201511-201707

main45535-09400iTGN140..6FC..MA201611-202012

main45535-09460iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0K010iGUN142..TH201511-201707

main45538-0K020iTGN140..5F..MA201611-201905

90105T0258

main90105-T0258

9017015001

main90170-15001

90170T0006

main90170-T0006

90178T0094

main90178-T0094

9462241400

main94622-41400

9538103025

main95381-03025

19 parts on this diagram · 2 diagrams in section
