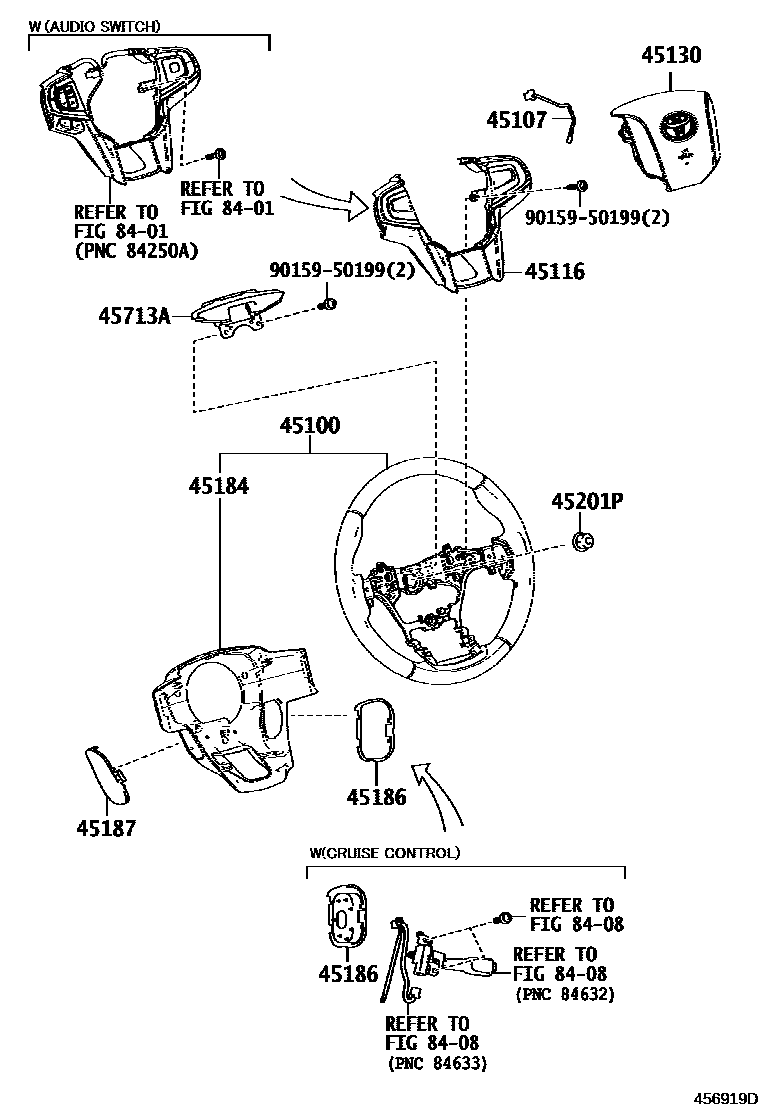

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#,4#
3-SPOKE,URETHANE,WITH(MLM PACKAGE)&SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#
3-SPOKE,URETHANE,WITH(MLM LUXURY)&SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,URETHANE,BLACK/ RED,TRIM2#
3-SPOKE,URETHANE,WITH(MLM PACKAGE),BLACK/ RED,TRIM2#
3-SPOKE,URETHANE,WITH(MLM PACKAGE)&SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK/ RED,TRIM2#
3-SPOKE,URETHANE,WITH(MLM LUXURY),BLACK/ RED,TRIM2#
3-SPOKE,URETHANE,WITH(MLM LUXURY)&SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK/ RED,TRIM2#
3-SPOKE,URETHANE,BLACK/ ORANGE,TRIM4#
3-SPOKE,URETHANE,WITH(MLM PACKAGE),BLACK/ ORANGE,TRIM4#
3-SPOKE,URETHANE
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK/ RED,TRIM2#
3-SPOKE,LEATHER,BLACK/ RED,TRIM20
3-SPOKE,LEATHER,GRADE MARK-V,BLACK/ RED,TRIM2#
3-SPOKE,LEATHER,BLACK/ ORANGE,TRIM4#
main45100-0KE40-C6iGUN142..(6F,6FC)..(24V,24Z)..IND;GUN14#,TGN141..(5F,6FC)..(24V,27V,27Z,28Z)..IND201704-202010
3-SPOKE,LEATHER,BLACK/ RED/ BLACK,TRIM20
3-SPOKE,LEATHER,BLACK/ BEIGE/ BLACK,TRIM20
3-SPOKE,LEATHER,BLACK/RED,TRIM2#
3-SPOKE,LEATHER,GRADE MARK-V,BLACK/RED,TRIM2#
3-SPOKE,LEATHER,BLACK/ORANGE,TRIM4#
45107WIRE SUB-ASSY, HORN BUTTON
(L)
STEERING SWITCH-AUDIO&TEL&VR,(L)
AUDIO-AM/FM & CD & *BT,(L)
AUDIO-WITHOUT & WITH(DOP-AUDIO LESS COVER),(L)
CRUISE CONTROL-WITHOUT,(L)
WITH(MLM PACKAGE)
(J)
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM2#,4#
BLACK,TRIM2#
SRS AIR BAG-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
45130BUTTON ASSY, HORN
main45130-0K170-C0iGUN142..IDN,TH;TGN140..20E..VN;TGN140..PHLP..20;GUN143..(28,28V)..PHL;TGN140..IDNP..(20,20G,20Q)..(IDN,PHL)201511-202304
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#
main45184-0K100-C0iTGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH)201511-202304
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
CRUISE CONTROL-WITH,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
WITH(MLM PACKAGE),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
main45186-0K080-C0iTGN140..PHLP..20;GUN14#..(24G,24V,28,28V)..(IDN,PHL);TGN140..IDNP..(20,20G,20Q)..(IDN,PHL)201604-202102
BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,4#
WITH(MLM PACKAGE)&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,4#
BLACK,TRIM4#
CRUISE CONTROL-WITH
main45186-0K100-C0iTGN141..27V;GUN142,TGN141..(6F,6FC)..(24G,24V,27G)..IND..(DCRL,HTWC)201809-202301
CRUISE CONTROL-WITH,BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM4#
WITH(MLM PACKAGE),BLACK,TRIM2#,4#
WITH(MLM PACKAGE),BLACK,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM4#
WITH(MLM PACKAGE),BLACK,TRIM2#,4#
WITH(MLM PACKAGE),BLACK,TRIM4#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9015950199
main90159-50199
12 parts on this diagram · 1 diagram in section
