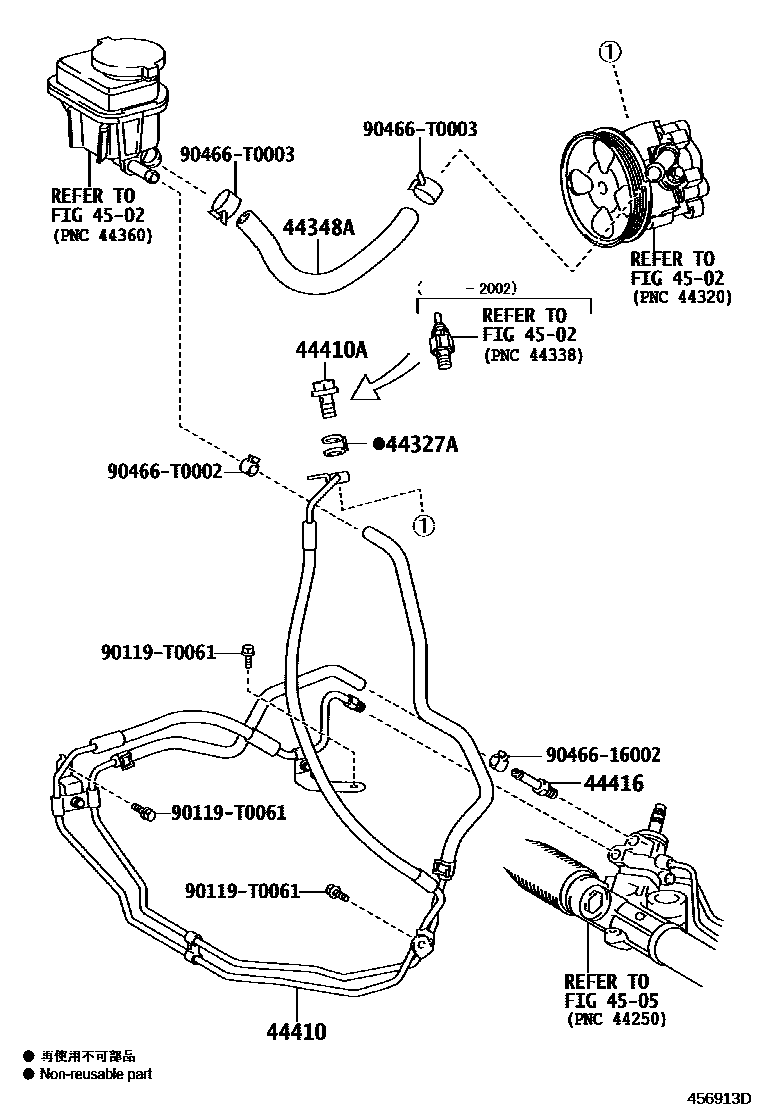

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iTGN140..5F..MA201511-202304

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K100iGUN142..TH201511-201904

main44348-0K110iGUN14#..IDNP201905-202304

44410TUBE ASSY, PRESSURE FEED

main44410-0K180iTGN140..5F..MA201511-202304

main44410-0K200iGUN142..TH201511-202304

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iTGN141..5F..27..GCC201511-202304

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..201511-202304

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

9046616002

main90466-16002

90466T0002

main90466-T0002

90466T0003

main90466-T0003

11 parts on this diagram · 4 diagrams in section
