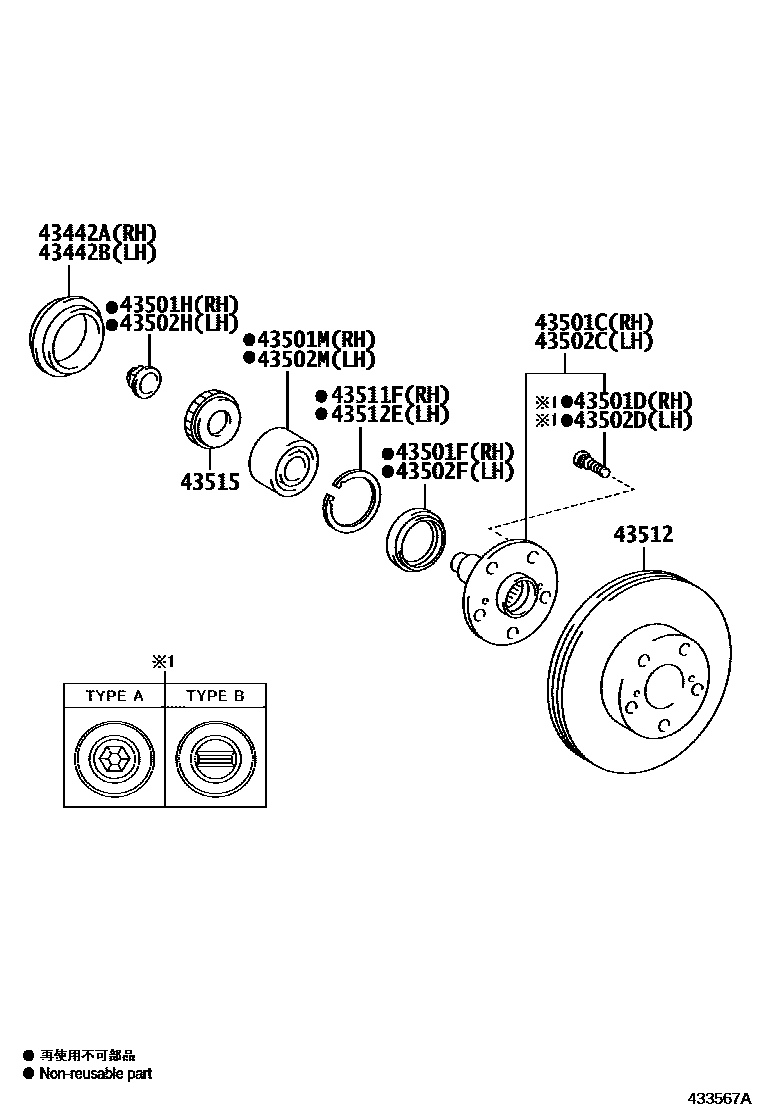

FRONT AXLE HUB

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0K010iTGN140..20..GEN;TGN141..5F..27..GCC;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN142..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N);GUN143,TGN141..5F..(24,27G,27SR,28,28G)..(GCC,GEN,LA)201511

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0K010iGUN14#,TGN140..IDNP..(IDN,PHL)202411

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK030iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

TYPE A:REFER ILLUST.

main90942-02081×5iTGN140..6FC..MA201511-202012

TYPE B:REFER ILLUST.

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-T0010iTGN141..6FC;GUN142..GEN,IDN,IND;GUN143,TGN140..6FC..(GCC,MA);GUN143,TGN140..IDN,IND,PHL,TH,VN;TGN141..5F..(27,27G,27V)..(IND,LA)201511-201912

main90311-T0090iGUN14#,TGN14#..IDNP202001-202008

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-24010iGUN142..TH201511-201707

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-T0007iTGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN142..5F..(24G,24Z,G)..IND;GUN14#,TGN14#..(MAP,PHLP,VNP)..(20,24G,27V,28,28E,28V,N)202010

main90366-T0008iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK030iGUN142..TH201511-201707

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

TYPE A:REFER ILLUST.

main90942-02081×5iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

TYPE B:REFER ILLUST.

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-T0010iTGN140..5F..MA201511-201905

main90311-T0090iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)202001-202102

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-24010iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-T0007iTGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN142..5F..(24G,24Z,G)..IND;GUN14#,TGN14#..(MAP,PHLP,VNP)..(20,24G,27V,28,28E,28V,N)202010

main90366-T0008iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-T0003iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

43512DISC, FRONT

main43512-0K170×2iGUN143..PHLP;TGN140..(PHLP,VNP)..5F;TGN140..(MAP,PHLP,VNP)..6FC201604-202004

main43512-0K180×2iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202004

main43512-0K190×2iGUN14#,TGN141..IND201604-201904

main43512-0K290×2iTGN140..VN202005-202009

main43512-0K300×2iGUN14#,TGN14#..IDNP202005-202008

main43512-0K310×2iGUN142,TGN141..IND..(DCRL,HTWC)201905-202010

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-T0003iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

43515ROTOR, SKID CONTROL, FRONT

main43515-0K010×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

MADE IN THAILAND

main43515-0K030×2iGUN142..IDN,TH;GUN143,TGN140..IDNP..(IDN,PHL)202009

MADE IN INDONESIA

16 parts on this diagram · 1 diagram in section
