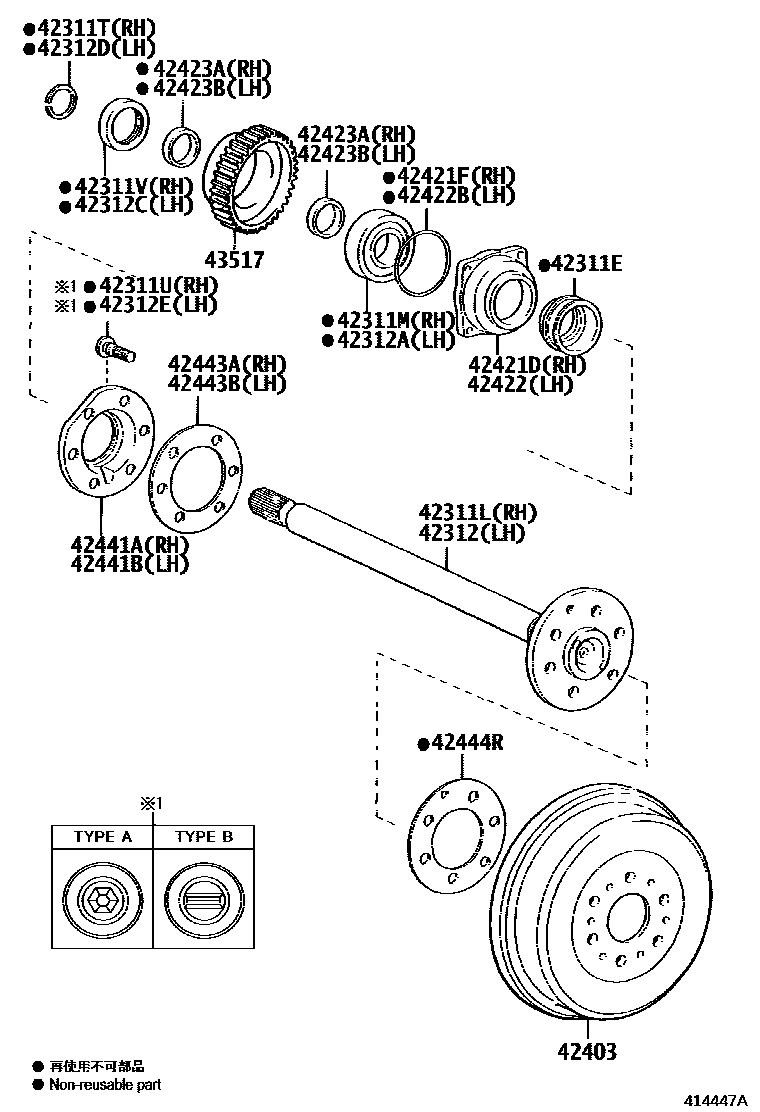

REAR AXLE SHAFT & HUB

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-T0001×2iGUN14#..IND201511-202001

42311LSHAFT, REAR AXLE, RH

main42311-0K020iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90363-T0033iTGN140..6FC..MA201511-202012

main90363-T0034iGUN14#,TGN141..IND201604-201912

main90363-T0050iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main90363-T0051iGUN142,TGN141..IND202001-202010

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-T0036iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iGUN142..TH201511-201707

TYPE A:REFER ILLUST.

main90942-02081×5iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

TYPE B:REFER ILLUST.

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-T0006iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

42312SHAFT, REAR AXLE, LH

main42311-0K020iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90363-T0033iTGN140..20..GEN;TGN141..5F..27..GCC;TGN140..(MAP,PHLP)..5F;GUN142..(GCC,SA,TH)..DCR;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN141..5F..(24,27G,27SR,28,28G)..(GCC,GEN,LA)201511-202108

main90363-T0034iGUN14#,TGN141..IND201604-201912

main90363-T0050iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

main90363-T0051iGUN142..5F..IND202011

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-T0006iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-T0036iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iGUN142..TH201511-201707

TYPE A:REFER ILLUST.

main90942-02081×5iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

TYPE B:REFER ILLUST.

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0K190×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main42431-0K200×2iGUN14#..IND201604-202001

42421DCASE, REAR AXLE BEARING, RH

main42421-0K020iTGN140..5F..MA201511-201905

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-T0016iGUN142..TH201511-201707

42422CASE, REAR AXLE BEARING, LH

main42421-0K020iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-T0016iGUN142..TH201511-201707

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-20010×2iGUN142,TGN140..IDN201511-201604

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-20010×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-26010iGUN142..TH201511-201707

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-26010iGUN142..TH201511-201707

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-30010iGUN142..TH201511-201707

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-30010iGUN142..TH201511-201707

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35070×2iGUN142..TH201511-201707

43517ROTOR, SKID CONTROL, REAR

main43517-35010×2iGUN142..TH201511-201707

24 parts on this diagram · 1 diagram in section
