Toyota 614210 — PROPELLER SHAFT & UNIVERSAL JOINT

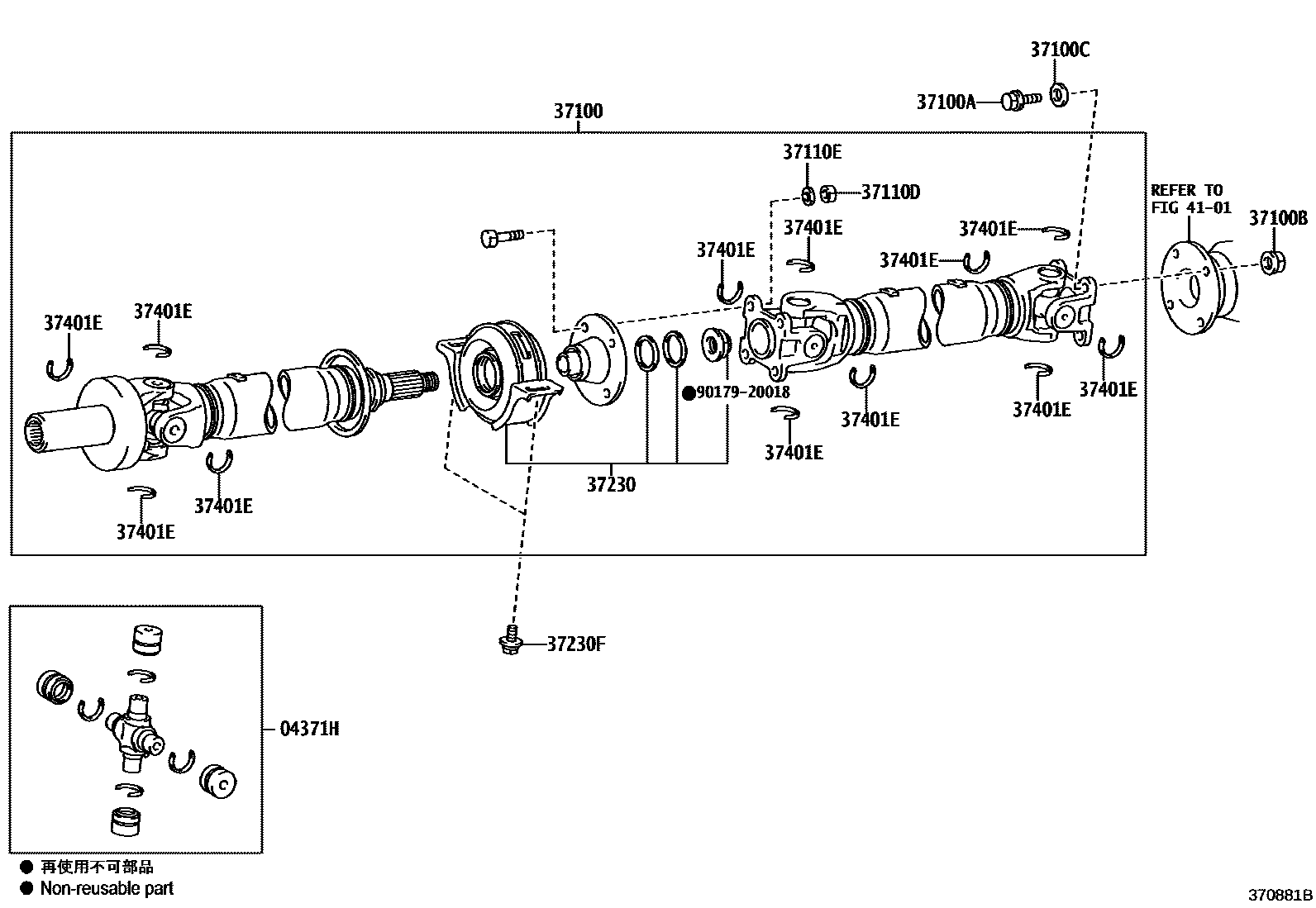

Parts diagram

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37110DNUT (FOR PROPELLER SHAFT)

37110EWASHER (FOR PROPELLER SHAFT)

37230BEARING ASSY, CENTER SUPPORT, NO.1

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

9017920018

12 parts on this diagram · 4 diagrams in section

PROPELLER SHAFT & UNIVERSAL JOINT for Toyota 614210

This section contains 15 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota 614210. Key components include: SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT, SHAFT ASSY, PROPELLER W/CENTER BEARING, BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING).
