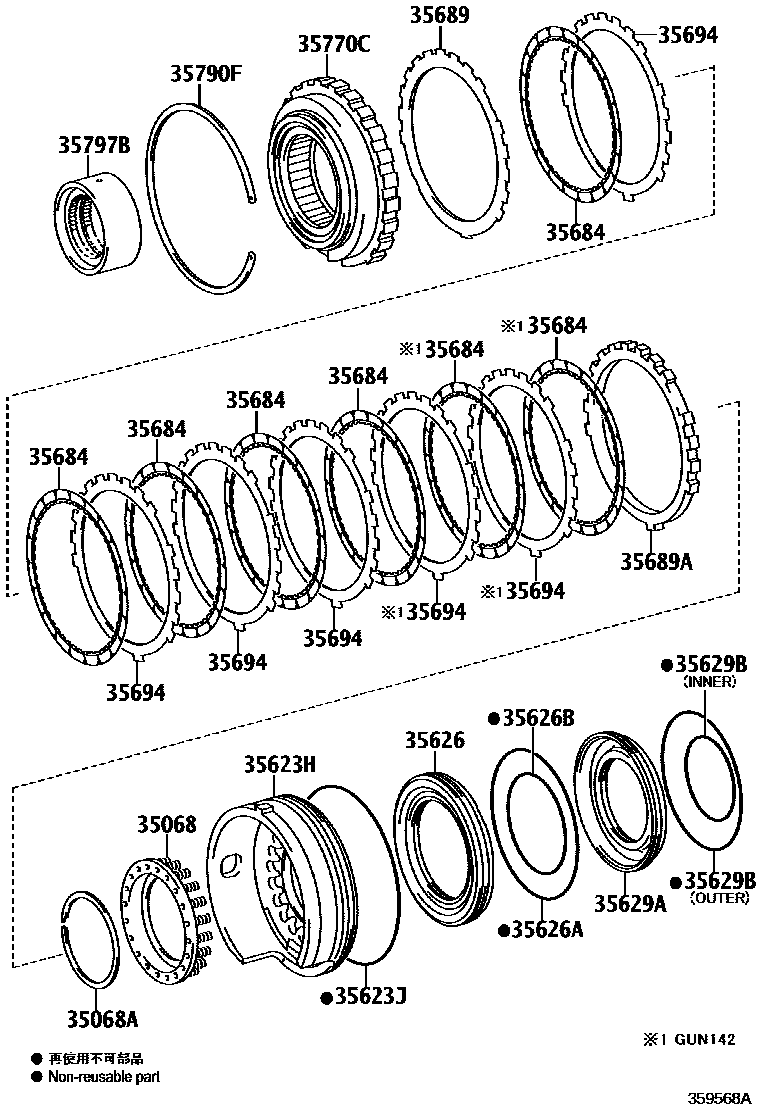

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010iGUN143,TGN140..PHLP..6FC..(20G,28G)201912

main35068-60010iGUN142..TH201511-201707

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iTGN140..6FC..MA201511-202012

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010iGUN143..PHLP..6FC..(28E,28V)201809-202102

(L)

main35623-0K020iTGN140..6FC..VN201912-202009

main35623-71010iGUN142..6FC..(GCC,SA)201511-201807

(J)

main35623-71020iTGN141..IDNP..6FC202103-202304

(J)

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGUN142..6FC..IDN;GUN143..IDNP..6FC; TGN141..IDNP..6FC201511-201808

(J)

main90301-T0072iGUN142..6FC..DCR201808-202008

(L)

35626SLEEVE, BRAKE REACTION

main35626-50010iGUN143,TGN141..IDNP..6FC201511-201808

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGUN142..6FC..IDN;GUN143..IDNP..6FC; TGN141..IDNP..6FC201511-201808

(J)

main90301-T0073iGUN143..PHLP..6FC201809

(L)

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGUN142..6FC..24Z; GUN142..6FC..IND; TGN141..6FC..IND202011-202301

(J); ECO PACKAGE-WITH(IDLE STOP SYSTEM)

main90301-T0074iGUN143..IDNP..6FC; TGN141..IDNP..6FC201809-202008

(L)

35629APISTON, BRAKE, NO.4

main35629-50020iGUN142..TH201511-201707

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGUN142..6FC..24Z; GUN142..6FC..IND; TGN141..6FC..IND202011-202301

ECO PACKAGE-WITH(IDLE STOP SYSTEM),INNER; INNER; INNER,(J)

main90301-99084iGUN142..6FC..24Z; GUN142..6FC..IND; TGN141..6FC..IND202011-202301

ECO PACKAGE-WITH(IDLE STOP SYSTEM),OUTER; OUTER; OUTER,(J)

main90301-T0075iTGN140..MA201912-202012

OUTER,(L)

main90301-T0076iGUN143..IDNP..6FC; TGN141..IDNP..6FC201809-202008

INNER; INNER,(L)

35684DISC, BRAKE, NO.4

main35684-0K010×7iGUN142..6FC..(IDN,MA,TH);GUN143..6FC..(28E,28V)..PHL; TGN140..6FC..20G..IDN;TGN14#..6FC..(20,20E,20Q,20V,27V)202009

(L)

main35684-60030×7iGUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202103-202304

(J)

35689FLANGE, BRAKE, NO.4

main35689-60270iGUN142,TGN140..IDNP..6FC..(20E,20G,20Q,20V,24G,24Q,24V)..(GEN,IDN,PHL)201511-202008

T=1.8,MARK 0

main35689-60280iGUN142,TGN141..6FC..IND201511-202010

T=1.97,MARK 1

main35689-60290iGUN143,TGN141..IDNP..6FC201809-202008

T=2.11,MARK 3

main35689-60300iGUN143,TGN140..PHLP..6FC..(20G,28G)201511

T=2.25,MARK 4

main35689-60310iGUN142,TGN141..6FC..IND202009-202301

T=2.39,MARK 5

main35689-60320iGUN142,TGN141..6FC..IND201511-202010

T=2.53,MARK 7

main35689-60330iTGN140..6FC..VN201511-202009

T=2.67,MARK 8

main35689-60340iGUN143..IND201511-202001

T=2.81,MARK10

main35689-60350iGUN143,TGN141..IDNP..6FC201809-202008

T=2.95,MARK 11

main35689-60360iGUN143..IND201511-202001

T=3.09,MARK 12

main35689-60370iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-71010iGUN143,TGN140..PHLP..6FC..(20E,28E,28V)201511-202102

35694PLATE, BRAKE, NO.4

main35694-0K010×6iGUN14#..(20G,24V,28,28V)..(GCC,GEN,TH); TGN14#..6FC..(GCC,GEN,LA,TH)202009-202309

(L)

main35694-60011×4iGUN142..6FC..24Z; GUN142..6FC..IND; TGN141..6FC..IND202011-202301

(J); ECO PACKAGE-WITH(IDLE STOP SYSTEM)

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K010iGUN143..(IDNP,PHLP)..6FC; TGN141..IDNP..6FC201809-201911

(L)

main35770-0K020iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009

(L)

main35770-60030iGUN14#..IDNP..6FC..(IDN,PHL)202206

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iTGN140..6FC..MA201511-202012

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iGUN142..TH201511-201707

16 parts on this diagram · 1 diagram in section
