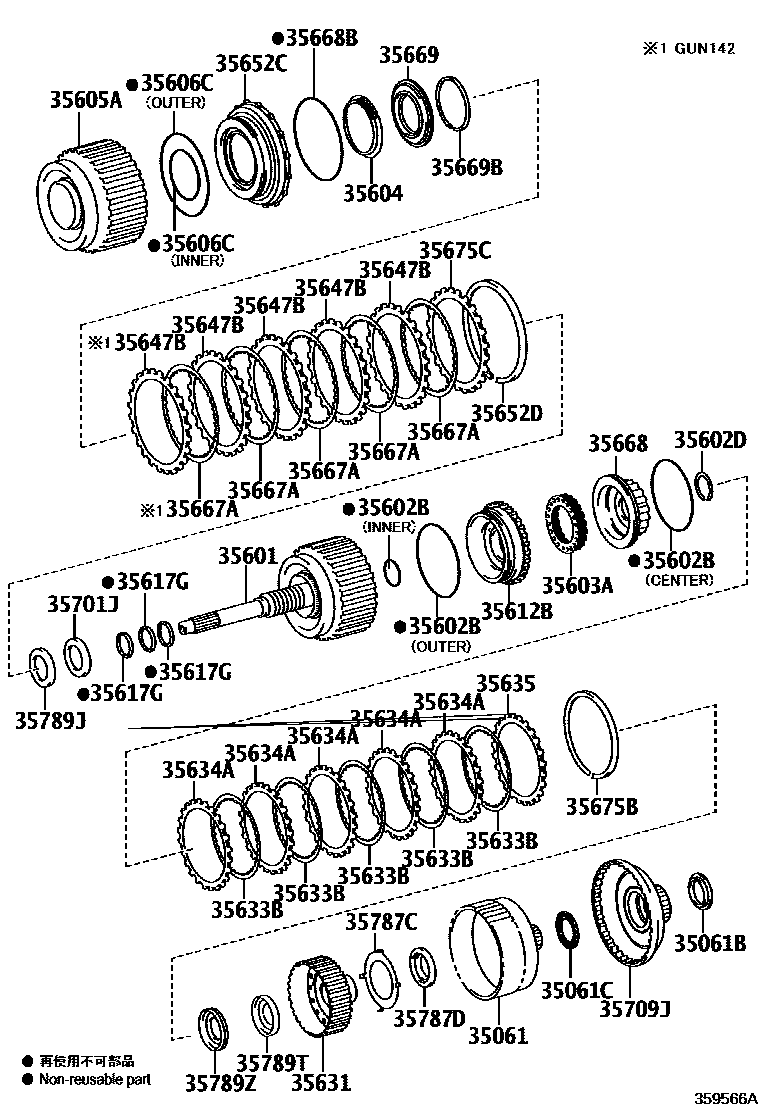

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35601DRUM SUB-ASSY, CLUTCH
(L)
(L)
(J)
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
CENTER
main90301-99145iGUN14#..(MAP,PHLP)..6FC..(24G,28E,28V); TGN140..6FC..20G..IDN;TGN14#..6FC..(20,20E,20Q,20V,27V)202009
(J),OUTER; OUTER
main90301-T0087iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202309
(L),OUTER
(L),INNER
(L),CENTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
(L)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
(L)
35605ADRUM SUB-ASSY, DIRECT CLUTCH
main35605-0K010iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009
(L)
##
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
OUTER
(L),INNER
(L),OUTER
35612BPISTON, FORWARD CLUTCH
(L)
35617GRING, CLUTCH DRUM OIL SEAL
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
main35631-0K010iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009
(L)
(J)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=3.0
35635FLANGE, FORWARD CLUTCH
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
T=4.0
T=4.1
main35635-71130iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202309
T=4.2
35647BPLATE, CLUTCH, NO.2
35652CPISTON, DIRECT CLUTCH
(L)
(L)
(J)
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
main90520-T0289iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202309
(L)
35667ADISK, DIRECT CLUTCH
35668BALANCER, CLUTCH, NO.1
(L)
(J)
35668BRING, O(FOR CLUTCH BALANCER)
(J)
main90301-T0094iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009
(L)
35669BALANCER, CLUTCH, NO.2
(L)
35669BRING, SNAP (FOR CLUTCH BALANCER)
(L)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
main90520-T0286iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009
(L)
35675CFLANGE, DIRECT CLUTCH
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
main35675-71090iTGN140..IDNP..6FC..20G;TGN140..6FC..(20,20E,20Q,20V,N);GUN14#,TGN141..6FC..(20G,24G,24V,24Z,27,27G,27Z,28,28E,28V,G,N,SRV)202009-202104
T=3.8
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35709JDRUM SUB-ASSY, SUN GEAR INPUT
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
35789ZBEARING, THRUST NEEDLE ROLLER
33 parts on this diagram · 1 diagram in section
