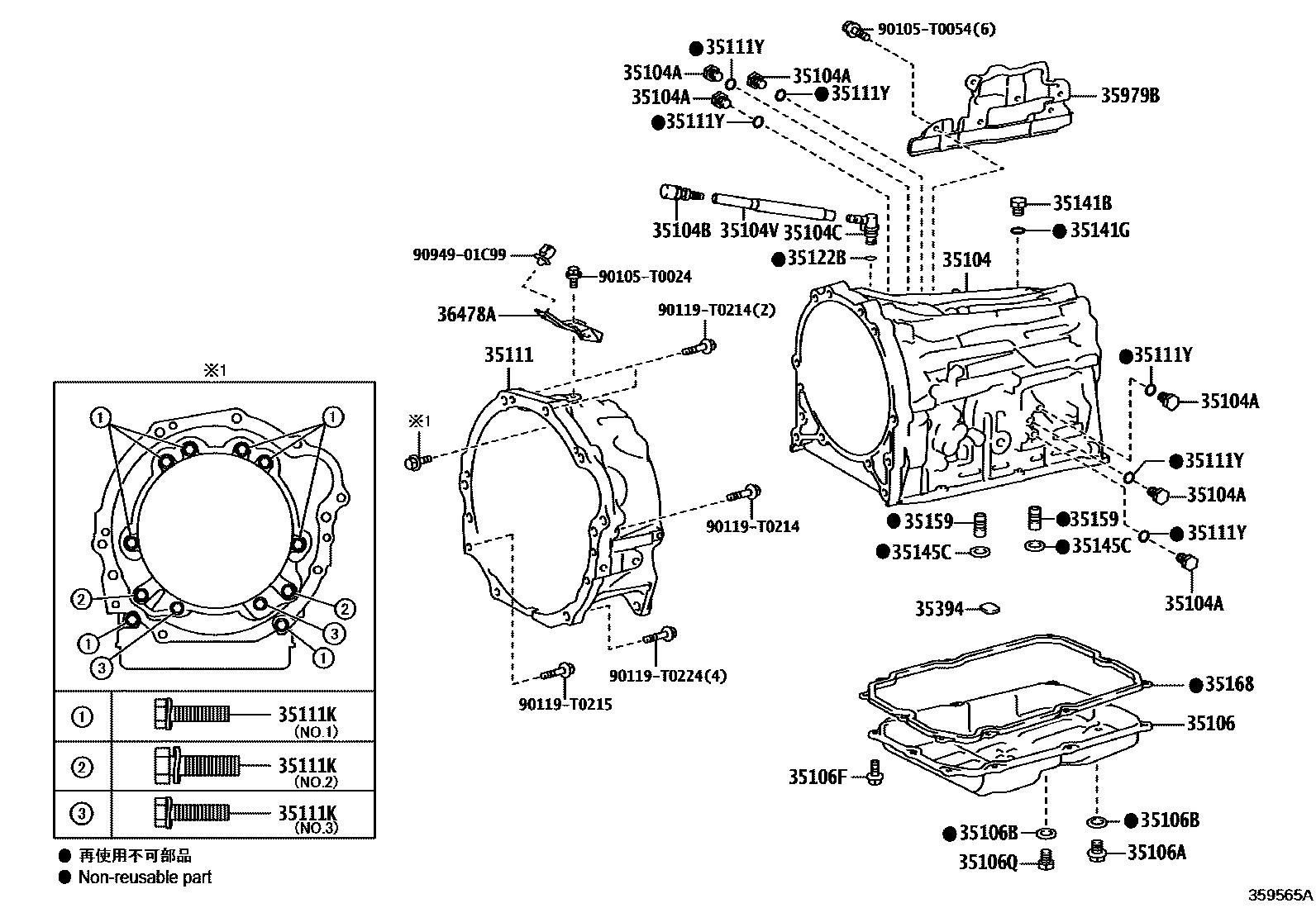

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AC60E 0002 1AC60E

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0K010iGUN142..6FC..DCR201808-202008

(L)

main35104-71020iGUN142,TGN140..6FC..(GCC,GEN,SA)201511-201807

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×6iGUN142,TGN141..6FC..IND202009-202301

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iGUN142,TGN140..6FC..(GCC,GEN,SA)201511-201807

main90930-T3004iGUN14#,TGN14#..IDNP..6FC201912-202008

(L)

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iGUN14#..IDNP..6FC..(IDN,PHL)202206

main90930-T3006iTGN140..6FC..VN201912-202009

(L)

35104VHOSE (FOR BREATHER PLUG)

main90447-11078iTGN140..GEN201511-201807

main90447-11081iGUN142..TH201511-201707

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0K010iGUN143..IDNP..6FC; TGN141..IDNP..6FC201809-202008

(L)

main35106-71050iGUN14#,TGN141..IDNP..6FC202103-202206

(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGUN142..TH201511-201707

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGUN14#,TGN141..IDNP..6FC202103-202206

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×10iGUN142,TGN140..6FC..(GCC,GEN,SA)201511-201807

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0K010iGUN142..6FC..(IDN,MA,TH);GUN143..6FC..(28E,28V)..PHL202009

(L)

main35111-0K020iTGN140..MA201912-202012

main35111-71030iGUN142..6FC..IND202011-202301

(J)

main35111-71040iTGN141..IDNP..6FC201511-201808

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-08C62iGUN143..IND201511-202001

*8-1.25PX30-23.5

main90119-10232×8iGUN142,TGN141..6FC..IND202009-202301

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-10947×2iGUN143,TGN140..PHLP..6FC..(20E,28E,28V)201511-202102

*10-1.50PX35-29.3,NO.3:REFER ILLUST.

main90119-12378×2iGUN143..IND201511-202001

*12-1.75PX38-30,NO.2:REFER ILLUST.

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×6iGUN142..6FC..IDN;GUN143,TGN141..IDNP..6FC201511-201808

main90301-T0067×6iTGN140..PHLP..6FC..(20E,20G)201912

(L)

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-08015iGUN14#,TGN141..6FC..(GCC,GEN,LA,TH)202206-202304

main90301-T0070iTGN140..IDNP..6FC201912-202008

(L)

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iTGN140..6FC..VN201511-202009

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iTGN140..6FC..(IDN,MA,PHL,VN)201511-201912

main90301-T0069iGUN142..6FC..DCR201808-202008

(L)

35145CGASKET, TRANSAXLE CASE

main35145-60020×2iGUN143..IND201511-202001

35159GASKET, BRAKE DRUM

main35159-0K010×2iGUN143,TGN140..PHLP..6FC..(20E,28E,28V)201912-202102

main35159-71010×2iGUN142,TGN141..6FC..IND201511-202010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-0K010iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)202009

(L)

main35168-71010iGUN142,TGN141..6FC..IND202011-202301

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGUN142..TH201511-201707

35979BINSULATOR, TRANSMISSION, RH

main35979-0K010iGUN142..TH201511-201707

36478ABRACKET, TRANSMISSION BREATHER

main36478-0K040iTGN140..GEN201511-201807

90105T0024

main90105-T0024

90105T0054

main90105-T0054

90119T0214

main90119-T0214

90119T0215

main90119-T0215

90119T0224

main90119-T0224

9094901C99

main90949-01C99

28 parts on this diagram · 2 diagrams in section
