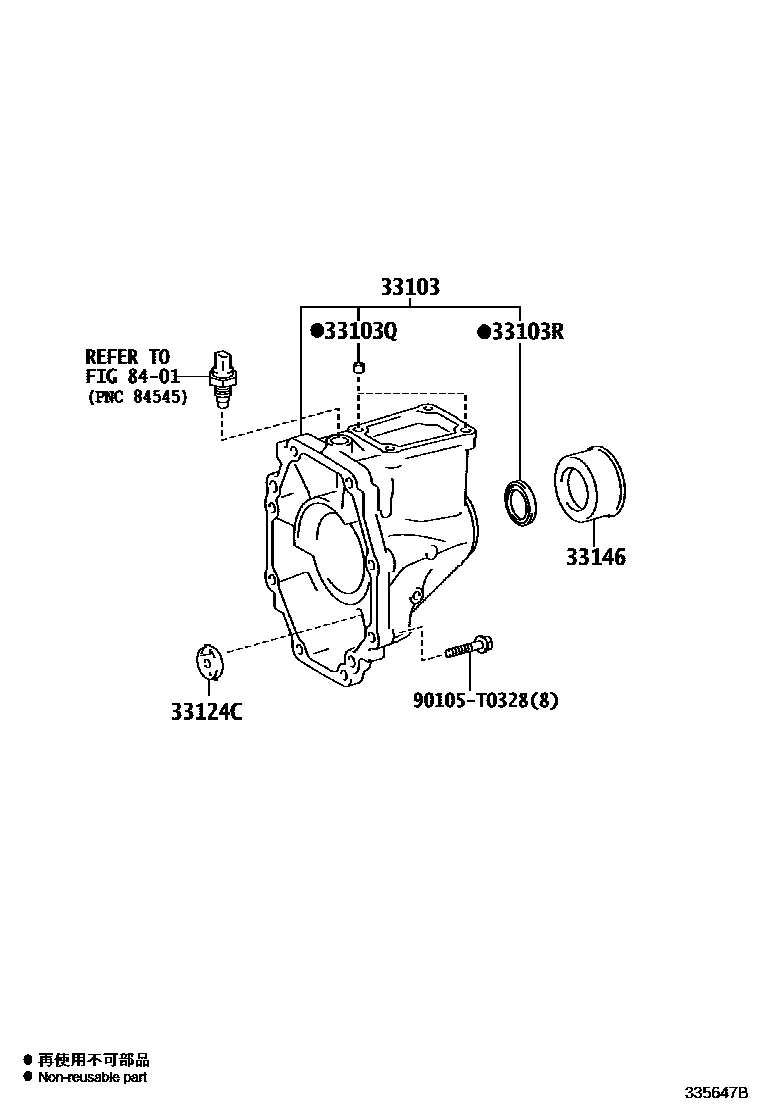

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K011iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202108

TYPE A:REFER 33-01

main33103-0K012iGUN142..5F..IND202101-202305

TYPE A:REFER 33-01

main33103-0K031iTGN14#..5F..(20E,27,27G)..(IND,LA,VN);GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)201511-202108

TYPE C:REFER 33-01

main33103-0K032iTGN141..5F..LA202101-202304

TYPE C:REFER 33-01

main33103-0K041iTGN141..5F..IND201511-202107

TYPE B:REFER 33-01

main33103-0K110iGUN142..24201709-202301

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-11021iGUN142..6F201709-202301

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40035iGUN14#,TGN14#..5F201511-201706

TYPE C:SEE 33-01,(J)

main90311-40048iTGN141..5F..IND202208-202305

(L),TYPE A:REF.33-01,(J),TYPE A:REF.33-01

main90311-40048iTGN141..5F..27G201707-202303

TYPE C:SEE 33-01,(J)

main90311-T0051iGUN14#,TGN14#..5F201511-201712

TYPE B:REFER 33-01

main90311-T0052iGUN14#,TGN14#..5F201511-201810

TYPE A:REFER 33-01

main90311-T0067iGUN14#,TGN14#..5F201511-201802

TYPE C:SEE 33-01,(L)

main90311-T0069iGUN142..24201709-202301

main90311-T0095iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201712-202107

main90311-T0095iGUN14#,TGN141..5F..(GCC,GEN)201712-202101

TYPE B:SEE 33-01

main90311-T0096iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)201803-202304

TYPE C:SEE 33-01,(L)

main90311-T0097iGUN143,TGN141..5F..(GCC,GEN);GUN14#,TGN140..(INDP,MAP,PHLP)..5F..(DCR,HTWC)201810-202208

TYPE A:REFER 33-01

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0K070iGUN142..24201709-202301

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-0K020iGUN142..24201709-202301

main33146-0K050iTGN140..5F..VN201511-202305

(L),NO MARK

main33146-0K060iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202305

(L),MARK 6

main33146-35030iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202305

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0328

main90105-T0328

7 parts on this diagram · 2 diagrams in section
