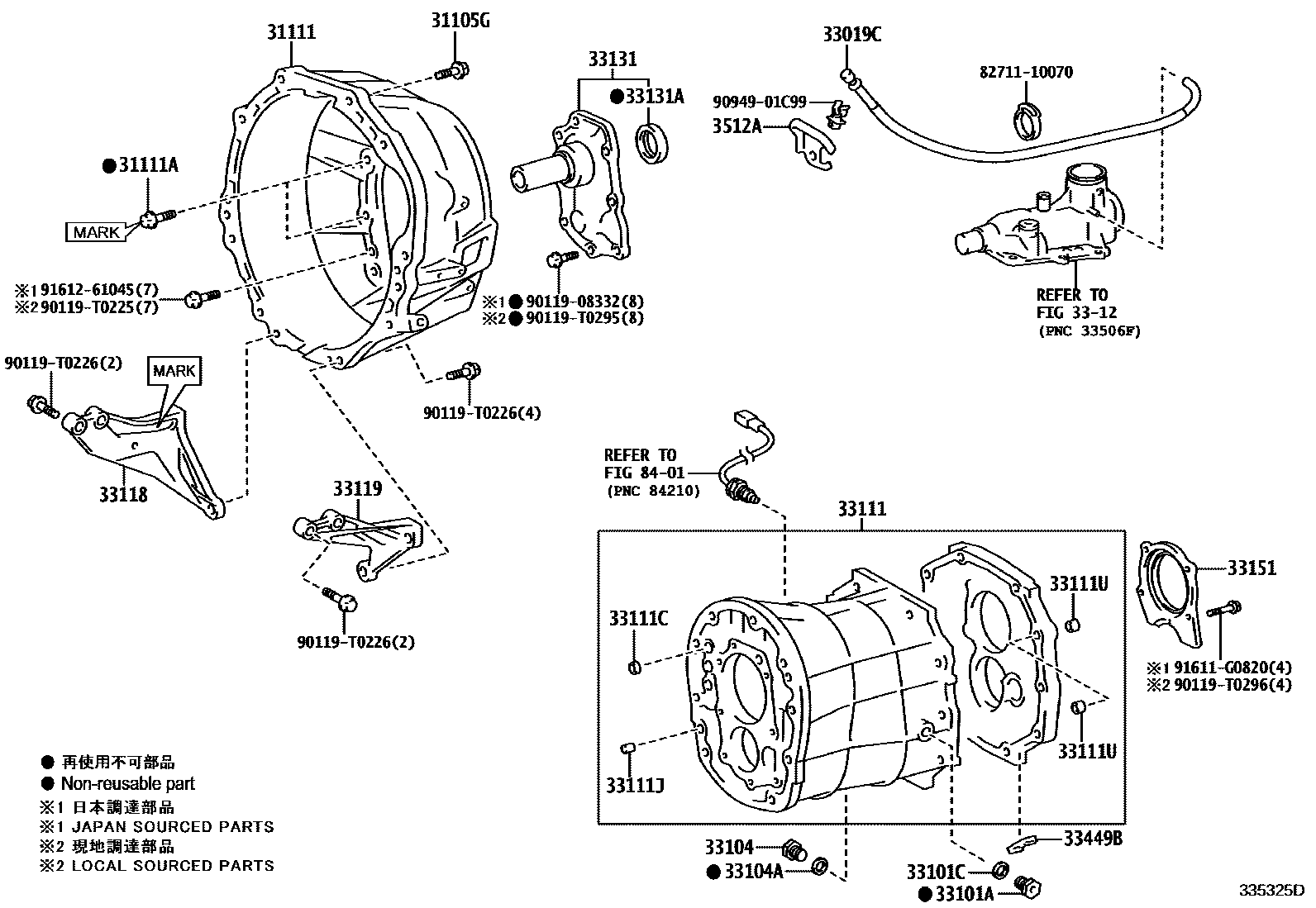

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0214×3iTGN141..5F..27..GCC;TGN141..5F..(27G,27SR);TGN140..(MAP,PHLP)..5F201511

*12-1.25PX55-30,NO.1:REFER ILLUST.

main90119-T0215iTGN140..20E..VN;TGN140..5F..(20G,20Q,N)202009

*12-1.25PX60-30,NO.2:REFER ILLUST.

main90119-T0227×5iGUN142..24202009-202301

*12-1.25PX50-30

31111HOUSING, CLUTCH

main31111-0K010iGUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main31111-0K020iTGN140..20E..VN;TGN14#..5F..(20G,20Q,27,N)202009-202305

TYPE A:REFER 33-01

main31111-0K061iGUN143..PHLP..5F;GUN14#..5F..(GCC,GEN,IND)..DCR201511-202101

TYPE B:SEE 33-01,(L)

main31111-0K070iTGN14#..IDNP..5F..(20E,20G,20Q,20V,27,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:SEE 33-01,(L)

main31111-0K090iGUN14#..IDNP..5F..(IDN,PHL)201511-202008

TYPE C:REFER 33-01

main31111-0K100iTGN141..5F..IND201511-202010

TYPE C:REFER 33-01

main31111-0K140iGUN142..6F201709-202010

main31111-26073iTGN141..5F..IND201511-202010

TYPE B:SEE 33-01,(J)

main31111-35102iGUN14#..IDNP..5F..(IDN,PHL)201511-202008

TYPE B:SEE 33-01,(J)

31111ABOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)

main90119-T0225×2iTGN140..5F..VN201905-202009

(L),MARK=6T

main90119-T0297×2iTGN141..5F..27G202009-202301

(L),MARK=6.8

main91612-61045×2iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

(J),MARK=6T

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-0K010iGUN14#..IDNP..5F201511-202008

main33019-0K020iGUN142..5F..IND201604-202010

main33019-0K030iTGN140..PHLP..N;TGN140..20E..VN202010

main33019-0K130iGUN142..24202011-202301

main33019-0K180iTGN14#..IDNP..5F..(20E,20G,20Q,20V,27,N)..(IDN,LA,PHL,TH)201511-202008

main33019-0K240iGUN143..PHLP..5F..(28E,28G,N)201604

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-0K090iGUN142..6F201709-202010

main33101-0K091iGUN142..24202107-202301

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main90341-18032iGUN142..24202011-202107

T/P A:SEE 33-01,NO.1

main90341-18033iGUN142..6F201709-202010

T/P A:SEE 33-01,NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iTGN141..5F..IND201511-202010

TYPE C:REFER 33-01

main90430-T0011iGUN14#,TGN14#..IDNP..5F..(IDN,LA,PHL,TH)201901-202008

TYPE A:REFER 33-01

main90430-T0021iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iTGN141..5F..LA202009-202304

TYPE C:REFER 33-01

main90430-T0011iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main90430-T0021iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33101-0K010iGUN14#,TGN14#..5F201511-201605

TYPE A:REFER 33-01

main33101-0K011iGUN142,TGN141..5F..IND..(DCRL,HTWC)201605-202010

TYPE A:REFER 33-01

main33101-0K030iGUN14#,TGN14#..5F201511-201612

TYPE C:REFER 33-01

main33101-0K031iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201612-202008

TYPE C:REFER 33-01

main33101-0K040iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

33111CPLUG(FOR TRANSMISSION CASE)

main96411-41800×3iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

OD=18,TYPE C:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-11003×2iGUN142..24202011-202301

L=11,OD=11,(J),NO.2:REFER ILL.

main90250-12002×2iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

L=16,OD=12,TYPE C:REFER 33-01

main90250-T0020×2iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

L=16,OD=12,TYPE B:REFER 33-01

main90250-T0029×2iGUN142..24202011-202301

L=11,OD=11,(L),NO.2:REFER ILL.

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

L=14,OD=15,TYPE B:REFER 33-01

main90253-T0011×2iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201612-202008

L=14,OD=15,TYPE C:SEE 33-01,(L)

33118PLATE, STIFFENER, RH(MTM)

main33118-0K030iGUN142..24202011-202301

MARK = 0K030

main33118-0K050iGUN142..MTM..IND201604-202010

MARK = 0K050

main33118-0K060iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009

MARK=0K060

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020iGUN142..5F..IND202011

main33119-0K030iGUN14#..5F..(GCC,GEN);GUN143..PHLP..5F..(28E,28G,N)201511

3312

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K011iGUN14#,TGN14#..5F201511-201812

TYPE A:REFER 33-01

main33018-0K012iGUN142,TGN141..5F..IND..(DCRL,HTWC)201812-202010

TYPE A:REFER 33-01

main33018-0K040iGUN14#,TGN14#..5F201511-201806

TYPE B:REFER 33-01

main33018-0K041iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201806-202008

TYPE B:REFER 33-01

main33018-0K070iGUN14#,TGN14#..5F201511-201909

TYPE C:REFER 33-01

main33018-0K071iTGN141..5F..IND201909-202010

TYPE C:REFER 33-01

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-T0027iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main90311-T0057iGUN14#,TGN14#..5F201511-201706

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90311-T0066iGUN142..24202011-202301

main90311-T0094iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01

main33151-0K030iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33151-0K040iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE C:REFER 33-01

33449BMAGNET, TRANSMISSION

main33449-35030iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

TYPE A:REFER 33-01

main33449-60010iGUN142..6F201709-202010

3512ABRACKET, TRANSMISSION BREATHER, NO.1

main3512A-0K100iGUN142..MTM..IND201611-202010

MADE IN INDONESIA

main3512A-0K110iTGN141..5F..LA202009-202304

main3512A-0K140iGUN142..5F..IND202011

IND SOURCED PARTS

8401

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

9011908332

main90119-08332

90119T0225

main90119-T0225

90119T0226

main90119-T0226

90119T0295

main90119-T0295

90119T0296

main90119-T0296

9094901C99

main90949-01C99

91611G0820

main91611-G0820

9161261045

main91612-61045

31 parts on this diagram · 3 diagrams in section
