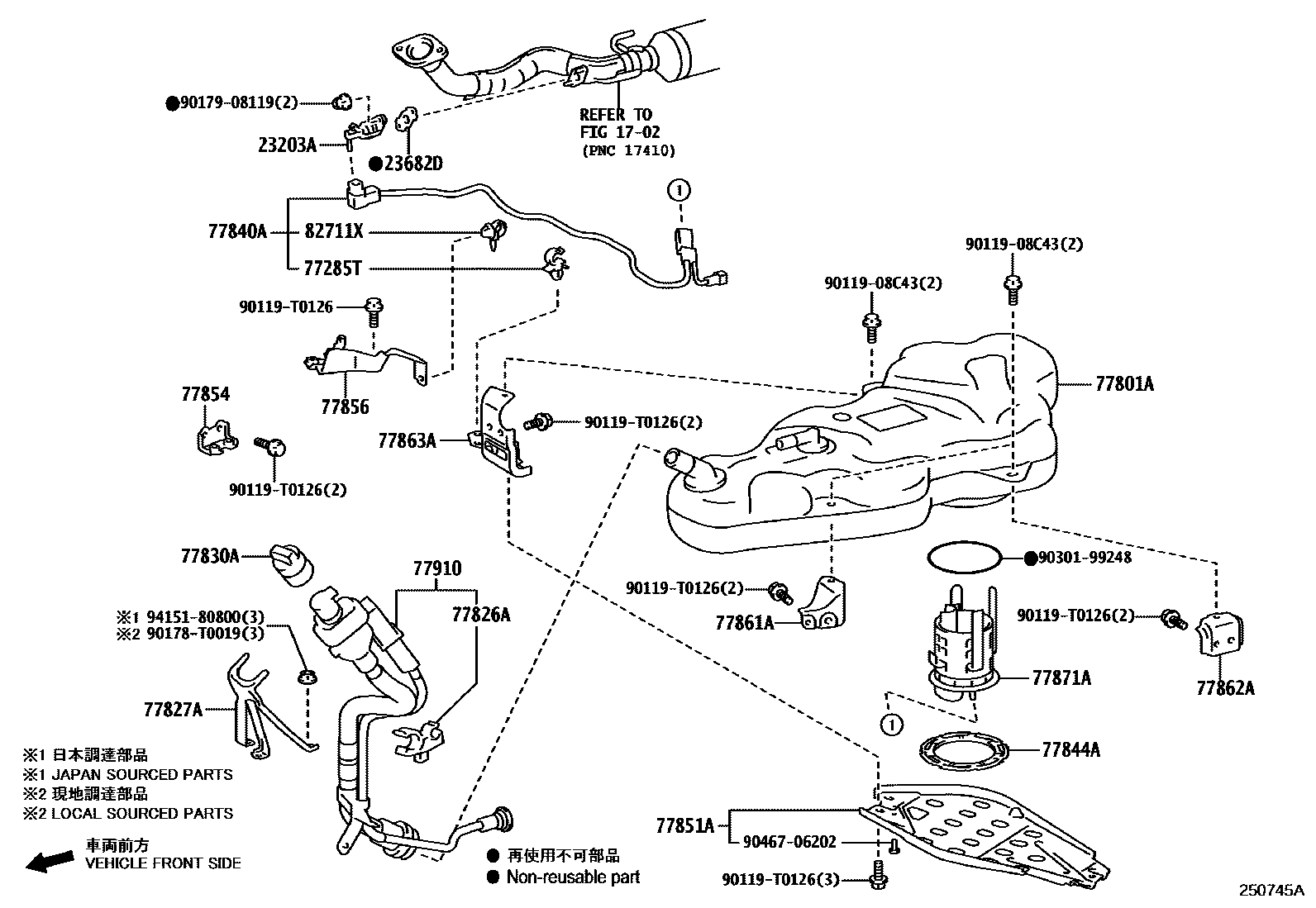

UREA TANK & TUBE

1702EXHAUST PIPE

→ Go to FIG 17-02

23203AINJECTOR SET, UREA

main23203-11030i2GDFTV..GUN142..IND202002-202010

23682DGASKET, NOZZLE HOLDER

main23682-11010i2GDFTV..GUN142..IND202002-202010

77285TCLAMP, UREA TUBE, NO.1

main77285-26140iGUN142..IND202002-202010

77801ATANK SUB-ASSY, UREA

main77801-0K100iGUN142..IND202002-202010

77826ASUPPORT, UREA TANK FILLER PIPE, NO.1

main77916-0K010iGUN142..IND202002-202010

77827ASUPPORT, UREA TANK FILLER PIPE, NO.2

main77916-KK010iGUN142..IND202002-202010

77830ACAP ASSY, UREA TANK

main77830-0K030iGUN142..IND202002-202010

77840ATUBE ASSY, UREA W/HEATER

main77840-0K040iGUN142..IND202002-202010

77844ARETAINER, UREA PUMP GAGE

main77844-0K020iGUN142..IND202002-202010

77851APROTECTOR, UREA TANK

main77851-KK040iGUN142..IND202002-202010

77854BRACKET, UREA TANK PROTECTOR, FRONT NO.1

main77854-KK010iGUN142..IND202002-202010

77856BRACKET, UREA TANK PROTECTOR, REAR NO.1

main77856-KK010iGUN142..6F202002-202010

main77856-KK020iGUN142..6FC..IND202011-202310

77861ABRACKET, UREA TANK, NO.1

main77861-KK030iGUN142..IND202002-202010

77862ABRACKET, UREA TANK, NO.2

main77862-KK020iGUN142..IND202002-202010

77863ABRACKET, UREA TANK, NO.3

main77863-KK030iGUN142..IND202002-202010

77871APUMP, UREA

main77871-0K020iGUN142..IND202002-202010

77910PIPE ASSY, UREA TANK FILLER

main77910-0K040iGUN142..IND202002-202010

82711XCLAMP, WIRING HARNESS

main82711-34490iGUN142..IND202002-202010

9011908C43

main90119-08C43

90119T0126

main90119-T0126

90178T0019

main90178-T0019

9017908119

main90179-08119

9030199248

main90301-99248

9046706202

main90467-06202

9415180800

main94151-80800

26 parts on this diagram · 1 diagram in section
