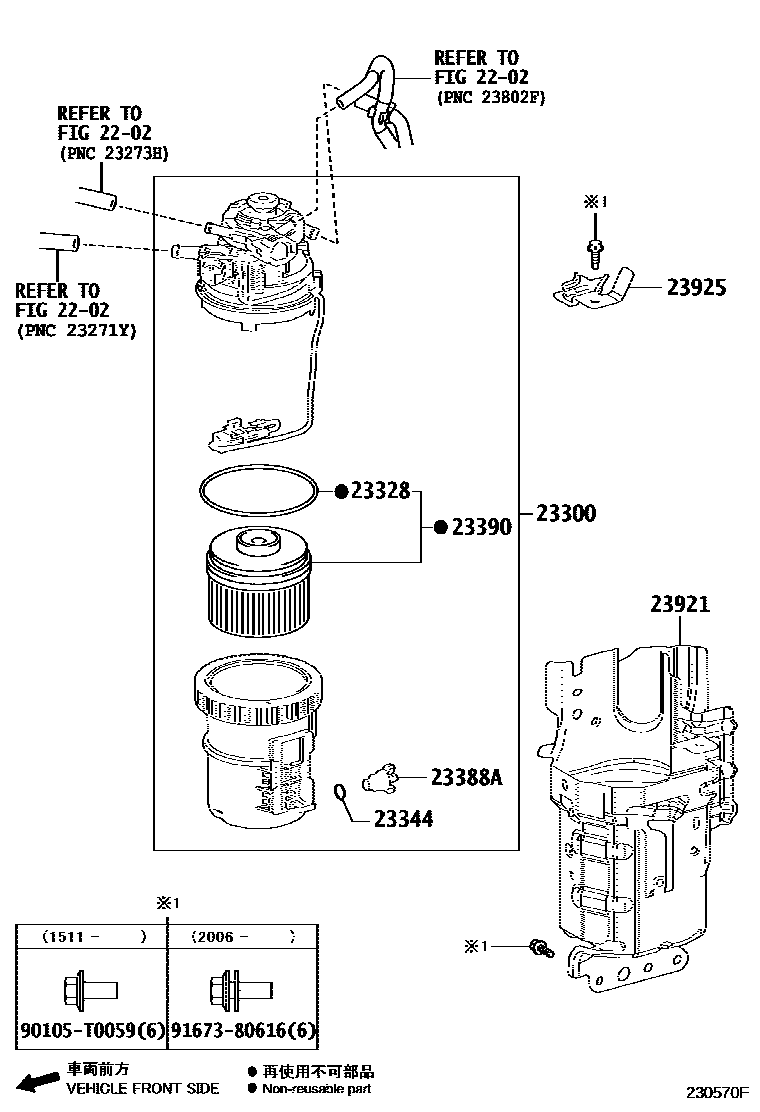

FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23300FILTER ASSY, FUEL

main23300-0L070i2GDFTV..GUN142..GCC,IDN,TH201511-201602

main23300-0L071i1GDFTV,2GDFTV..GUN14#..INDP,PHLP201603-202110

MARK 23300-0L071

main23300-0L072i2GDFTV..GUN142..5F;1GDFTV..GUN143..PHL;2GDFTV..GUN142..6FC..IDN202111-202304

MARK 23300-0L072

main23300-0L080i2GDFTV..GUN142..SA201511-201602

main23300-0L081i2GDFTV..GUN142..SA201603-201807

MARK 23300-0L080

23328GASKET(FOR FUEL FILTER)

main23344-0L070i2GDFTV..GUN142201511-202304

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202304

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202304

23390ELEMENT ASSY, FUEL FILTER

main23390-0L070i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202111

main23390-0L100i2GDFTV..GUN142..(6F,6FC)..IND202111-202304

23921SUPPORT, FUEL FILTER

main23921-0L190i1GDFTV,2GDFTV..GUN14#201511-201610

main23921-0L191i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201611-202304

23925STAY, FUEL FILTER SUPPORT

main23925-0L010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202304

90105T0059

main90105-T0059

9167380616

main91673-80616

10 parts on this diagram · 2 diagrams in section
