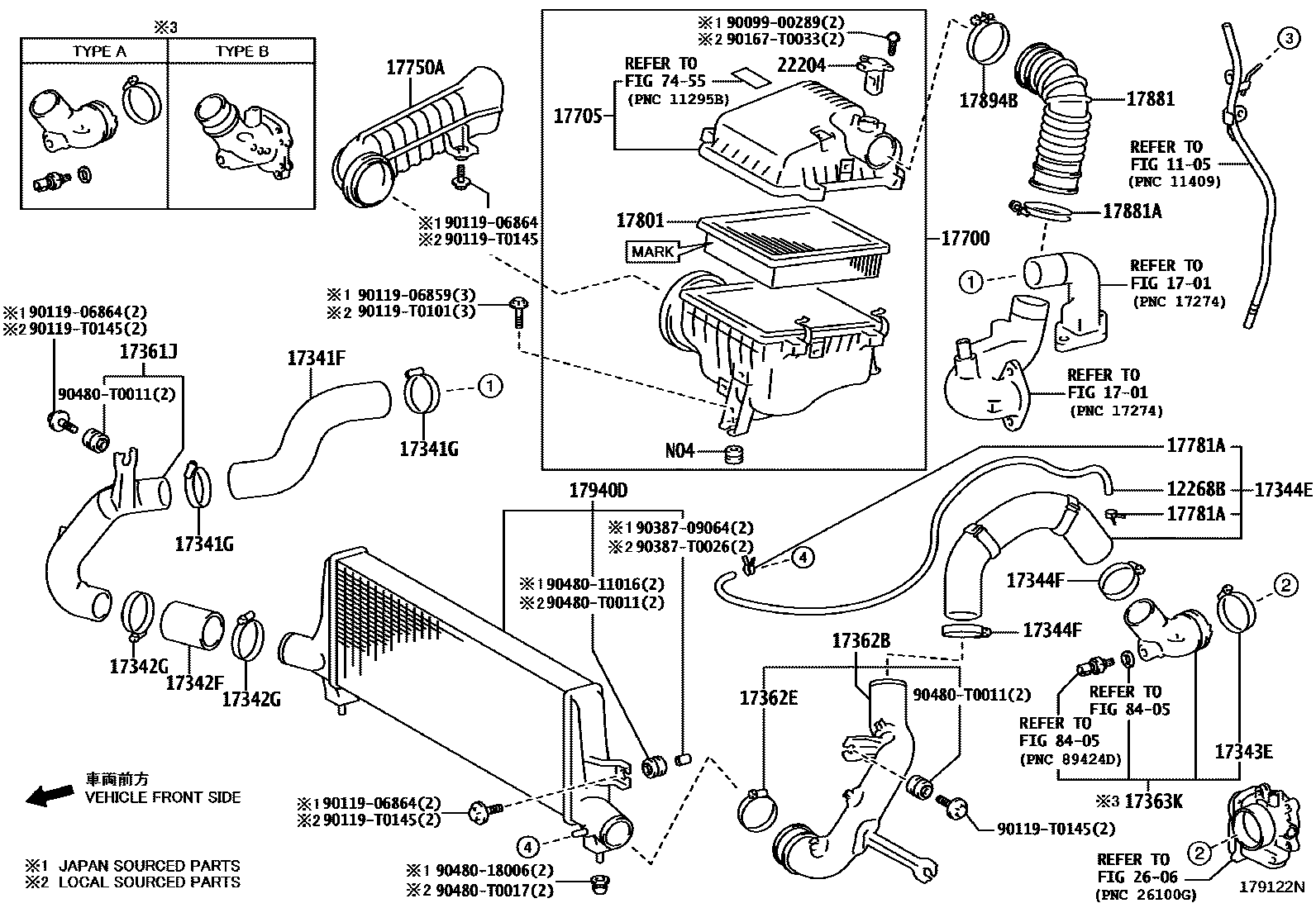

AIR CLEANER

0001 1 0005 1 0010 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

12268BHOSE, OIL RETURN

main12268-0L020i1GDFTV..GUN143..PHLP..(28E,28V,N)201511-202102

1701MANIFOLD

→ Go to FIG 17-01

17341FHOSE, AIR, NO.1

main17341-0E021i2GDFTV..GUN142..20G,24,24G,24Z,G;1GDFTV,2GDFTV..GUN14#..(IDNP,PHLP)..(24V,28,28E,28V,N)202009-202207

main17341-0E022i1GDFTV,2GDFTV..GUN14#..GCC,GEN,TH202208-202304

main17341-0L020i2GDFTV..GUN142..GCC,SA201511-201807

main17341-0L040i1GDFTV,2GDFTV..GUN14#..IND201604-202001

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90460-65012×2i2GDFTV..GUN142..TH201511-201707

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-0L020i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202008

main17342-0L030i1GDFTV,2GDFTV..GUN14#..IND201604-202001

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-65012×2i1GDFTV..GUN143..5F..(GCC,GEN)201511-201904

17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)

main90460-80006i1GDFTV..GUN143..PHLP..28G201511

17344EHOSE, AIR, NO.4

main17344-0L020i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202008

main17344-0L030i1GDFTV,2GDFTV..GUN14#..IND201604-202001

17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)

main90460-65012×2i1GDFTV..GUN143..PHLP..28G201511

17361JTUBE, AIR, NO.1

main17361-0E010i2GDFTV..GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

main17361-0L021i1GDFTV..GUN143..5F..(GCC,GEN)201511-201904

17362BTUBE, AIR, NO.2

main17362-0E010i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009

main17362-0L020i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202008

17362ECLAMP, NO.2(FOR AIR TUBE, NO.2)

main90460-67008i1GDFTV,2GDFTV..GUN14#..IND201511-202001

17363KTUBE, AIR, NO.3(FOR INTERCOOLER)

main17363-0L020i2GDFTV..GUN142..TH201511-201707

TYPE A:REFER ILLUST.

main17861-0E010i1GDFTV..GUN143..5F..(GCC,GEN)201903-201904

TYPE B:REFER ILLUST.

17700CLEANER ASSY, AIR

main17700-0C210i1TRFE..TGN140..VN201604-202009

main17700-0C220i2TRFE..TGN141..5F..27..GCC201511-201904

main17700-0L350i1GDFTV..GUN143..PHLP..(28E,28V,N)201604-202102

main17700-0L360i2GDFTV..GUN142..TH201511-201707

main17700-0L370i1GDFTV,2GDFTV..GUN14#..IND201604-202001

17705CAP SUB-ASSY, AIR CLEANER

main17705-0C140i1TRFE..TGN140..GEN;2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

main17705-0C160i1TRFE..TGN140..PHLP..20G;1TRFE..TGN140..PHLP..5F..20E201604

main17705-0L290i1GDFTV..GUN143..PHLP..28G201604

main17705-0L300i1GDFTV..GUN143..5F..(GCC,GEN)201511-201904

main17705-0L310i1GDFTV,2GDFTV..GUN14#..IND201604-202001

17750AINLET ASSY, AIR CLEANER

main17750-0L070i1GDFTV..GUN143..PHLP..28G; 1TRFE..TGN140..PHLP..20G;1TRFE..TGN140..PHLP..5F..20E201511

17781ACLAMP, HOSE

main90466-07002×2i1GDFTV..GUN143..5F..(GCC,GEN)201511-201904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0L040i1TRFE,2TRFE..TGN14#; 2GDFTV..GUN142201511-201602

MARK 17801-0L040

main17801-0L050i1GDFTV..GUN143..5F..(GCC,GEN); 2TRFE..TGN141..5F..27..GCC201602-201904

MARK 17801-0L050

17881HOSE, AIR CLEANER, NO.1

main17881-0C110i1TRFE..TGN140..PHLP..20G;1TRFE..TGN140..PHLP..5F..20E201604

main17881-0C111i1TRFE,2TRFE..TGN14#..MA,VN202310

main17881-0C120i1TRFE..TGN140..IDNP..(IDN,PHL)202009

main17881-0E020i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

THA SOURCED PARTS

main17881-0E021i1GDFTV,2GDFTV..GUN14#..IDNP..(IDN,PHL)202307

THA SOURCED PARTS

main17881-0E030i1GDFTV,2GDFTV..GUN14#..IDNP202002-202008

main17881-0E040i2GDFTV..GUN142..IND202008-202010

main17881-0E060i1GDFTV..GUN143..28G202101

main17881-0L190i1GDFTV,2GDFTV..GUN14#..IND201604-202001

main17881-0L260i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202001

main17881-0L280i1GDFTV..GUN143..PHLP201604-202012

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0005i2GDFTV..GUN142..TH201511-201707

main90460-T0020i2TRFE..TGN141..IND201511-202010

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main90460-T0020i1GDFTV..GUN143..5F..(GCC,GEN)201511-201904

17940DINTERCOOLER ASSY

main17940-0E010i2GDFTV..GUN142..IDN,MA,TH;1GDFTV..GUN143..(28,28E,28V,N)..PHL202009

main17940-0E020i2GDFTV..GUN142..IND202002-202010

main17940-0L110i1GDFTV..GUN143..PHLP..(28E,28V,N)201511-202102

main17940-0L120i1GDFTV,2GDFTV..GUN14#..IND201604-202001

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-30030i1GDFTV,2GDFTV..GUN14#..IND201511-202001

main22204-75040i1TRFE..TGN140..6FC..MA201511-202012

2606VENTURI

→ Go to FIG 26-06

7455CAUTION PLATE

→ Go to FIG 74-55

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900289

main90099-00289

9011906859

main90119-06859

9011906864

main90119-06864

90119T0101

main90119-T0101

90119T0145

main90119-T0145

90167T0033

main90167-T0033

9038709064

main90387-09064

90387T0026

main90387-T0026

9048011016

main90480-11016

9048018006

main90480-18006

90480T0011

main90480-T0011

90480T0017

main90480-T0017

39 parts on this diagram · 3 diagrams in section
