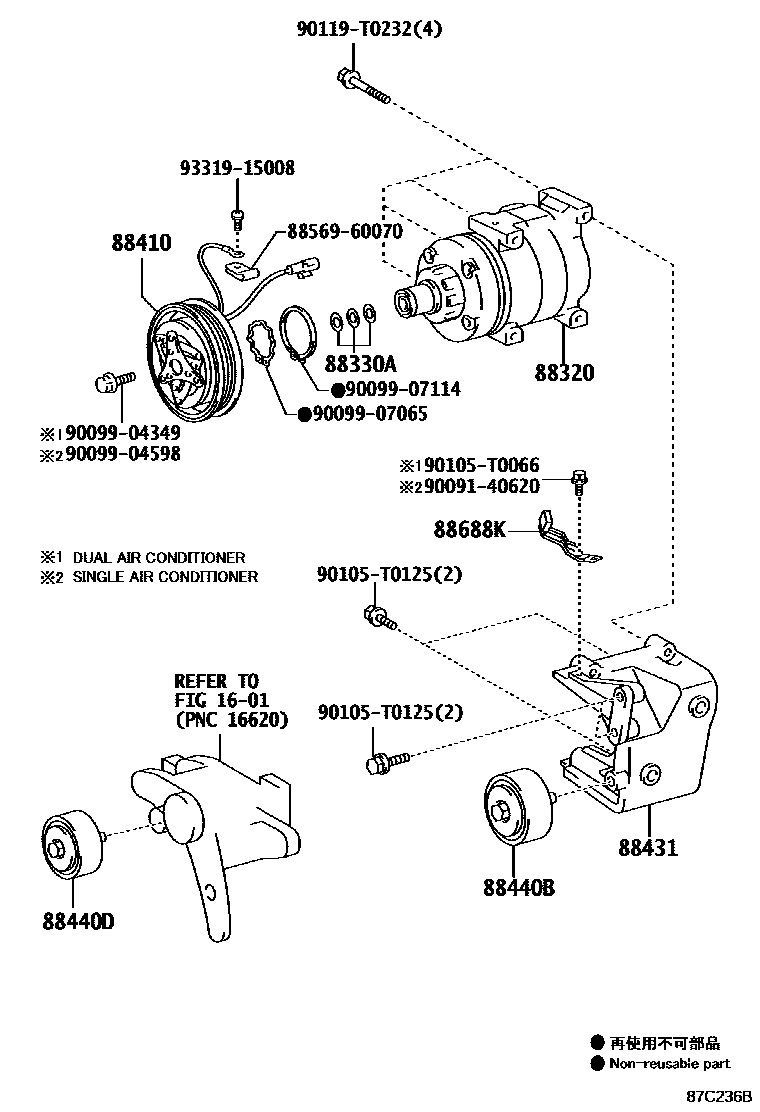

HEATING & AIR CONDITIONING - COMPRESSOR
1601WATER PUMP
88320COMPRESSOR ASSY, COOLER
MULTI INFORMATION DISPLAY-CLOCK ONLY
MULTI INFORMATION DISPLAY-CLOCK ONLY
INDIA SPEC(EURO 3 REGULATION)&FRONT HEATER-WITH(EVAPORATOR)
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AIR CONDITIONER DUAL
88330AWASHER (FOR MAGNET CLUTCH)
88410CLUTCH ASSY, MAGNET
AIR CONDITIONER-AIR CONDITIONER DUAL
INDIA SPEC(EURO 3 REGULATION)&AIR CONDITIONER-SINGLE AIR CONDITIONER
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88440BPULLEY ASSY, IDLE
88440DPULLEY ASSY, IDLE NO.2
88688KBRACKET, COOLER COMPRESSOR
INDIA SPEC(EURO 3 REGULATION)&AIR CONDITIONER-AIR CONDITIONER DUAL; INDIA SPEC(EURO 3 REGULATION)&AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AIR CONDITIONER DUAL; AIR CONDITIONER-SINGLE AIR CONDITIONER
8856960070CLAMP (FOR COOLER RELAY)
main88569-60070
9009140620
main90091-40620
9009904349
main90099-04349
9009904598
main90099-04598
9009907065
main90099-07065
9009907114
main90099-07114
90105T0066
main90105-T0066
90105T0125
main90105-T0125
90119T0232
main90119-T0232
9331915008
main93319-15008
18 parts on this diagram · 7 diagrams in section
