HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1AUTO FRONT HEATER CONTROL 0002 1MANUAL FRONT HEATER CONTROL 0003 1REAR HEATER CONTROL 0004 1FRONT AIR DUCT 0005 1FRONT AIR DUCT 0006 1REAR AIR DUCT 0007 1SENSOR

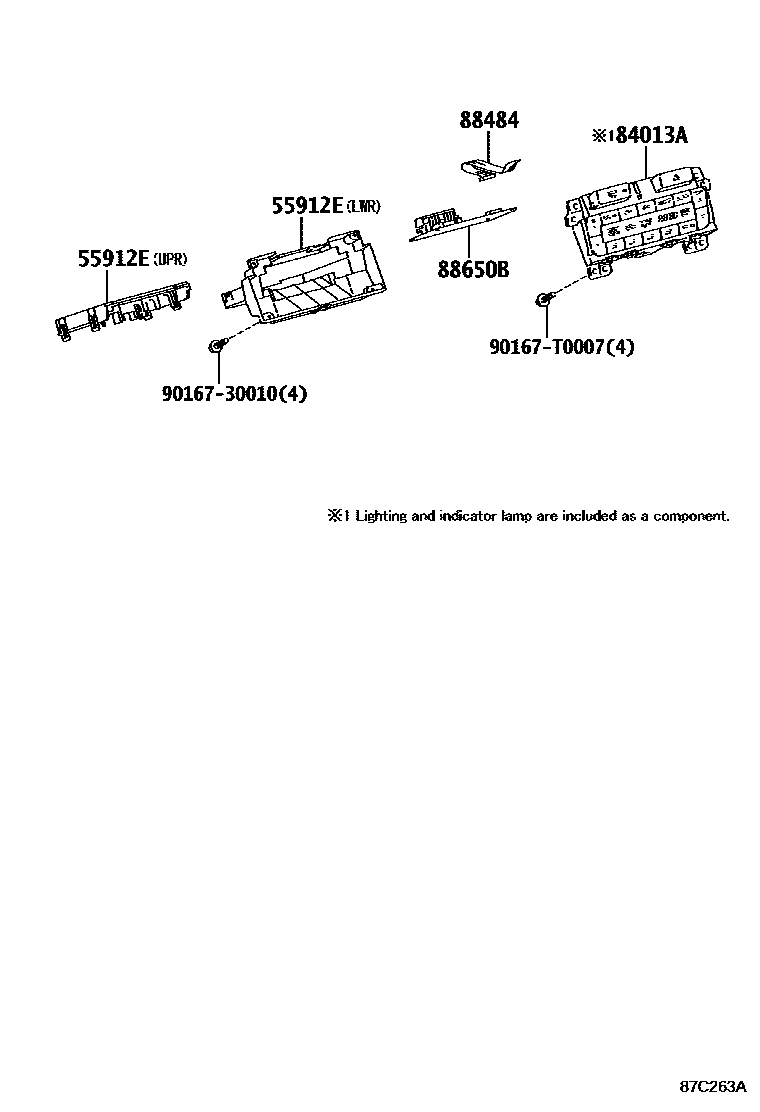

55912EBASE, HEATER CONTROL, LOWER

main55912-0K080iKUN40,TGN4#..GL201107-201611

LOWER

main55912-0K120iTGN40..DLX..TH201208-201611

UPPER

84013APANEL SUB-ASSY, INTEGRATION

main84013-0K030iKUN40,TGN4#..GL201107-201611

88484WIRE, COOLER, NO.1

main88484-0K110iKUN40,TGN4#..GL201107-201611

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-0K060iKUN40,TGN40..DLX..IND201201-201603

main88650-0K200iKUN40,TGN40..(DLX,STD)..PHL201202-201603

main88650-0K230iTGN40..DLX..TH201208-201603

main88650-0K240iKUN40,TGN4#..GL..(IND,SA,VN)201107-201611

main88650-0K370iTGN41..GL..GCC201107-201510

9016730010

main90167-30010

90167T0007

main90167-T0007

6 parts on this diagram · 7 diagrams in section
