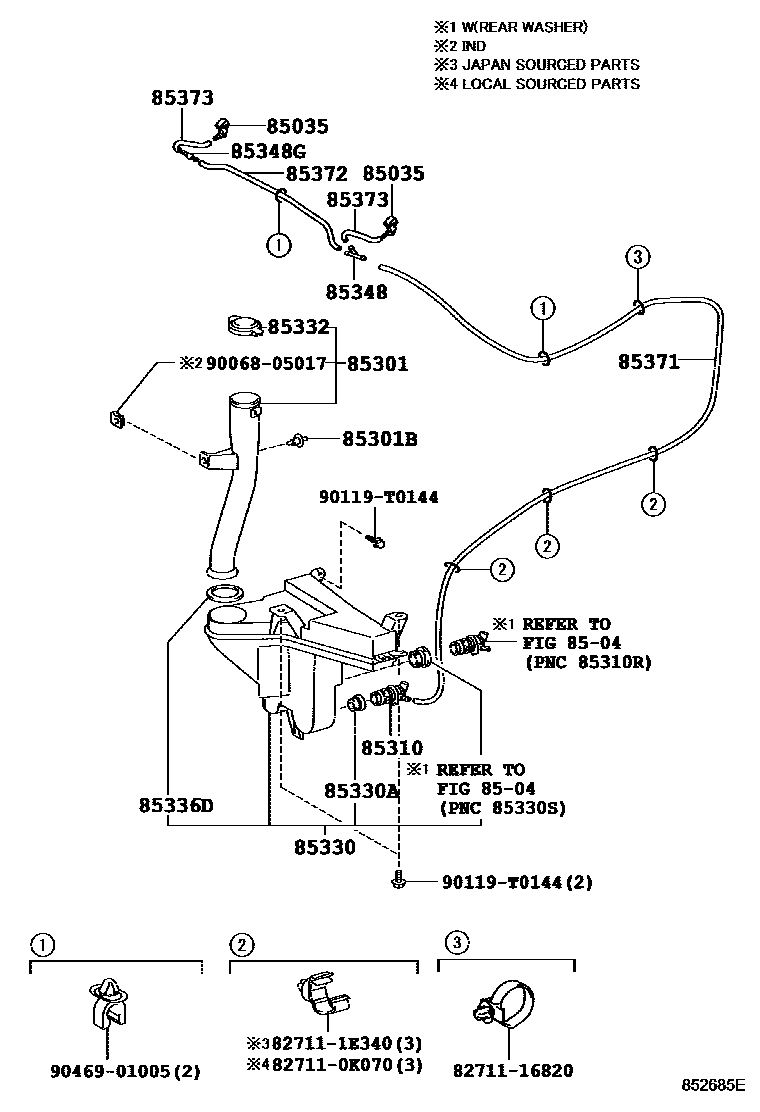

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K020×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main85381-0K030×2iKUN40,TGN40..IND201201-201603

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-0K021iKUN40,TGN40..PHL201202-201603

main85301-0K041iKUN40,TGN4#..GCC,IDN,SA,TH,VN201107-201611

main85301-0K071iTGN40..MA201110-201601

main85301-0K130iKUN40,TGN40..IND201201-201603

main85301-0K051iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

85301BCLIP, WASHER

main90467-07076-A0iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

IVORY

main90467-T0022iKUN40..IND201205-201603

INDIA SPEC(EURO 3 REGULATION)

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D100iKUN40,TGN4#201107-201611

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K070iTGN40..STD..VN;KUN40,TGN40..LO201107-201611

main85315-0K080iTGN40..(DLX,GL)..VN;KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,SA,TH)201107-201611

main85315-0K090iKUN40..STD..IND201201-201603

main85315-0K100iKUN40,TGN40..(DLX,GL)..IND201201-201603

main85315-0K110iTGN40..MA201110-201601

main85315-0K120iKUN40,TGN40..STD..PHL201202-201603

main85315-0K130iKUN40,TGN40..(DLX,GL)..PHL201202-201603

85330ABUSH, WINDSHIELD WASHER JAR

main85336-0K020iKUN40,TGN40..PHL201202-201603

main85336-0K140iTGN40..MA201110-201601

main85336-60300iKUN40,TGN4#..GCC,IDN,IND,SA,TH,VN201107-201611

85332CAP, WINDSHIELD WASHER JAR

main85316-0K010iKUN40,TGN40..IND,PHL201201-201603

main85316-0K040iKUN40,TGN4#..GCC,IDN,SA,TH,VN201107-201611

main85386-0K070iTGN40..MA201110-201601

85336DPACKING, WINDSHIELD WASHER JAR

main85336-0K010iKUN40,TGN40..PHL201202-201603

main85336-0K070iKUN40,TGN4#..GCC,IDN,SA,TH,VN201107-201611

main85336-42190iKUN40,TGN40..IND,MA201110-201603

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iKUN40,TGN4#201107-201611

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iKUN40,TGN4#201107-201611

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-59042iKUN40,TGN4#201107-201611

L=1870

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59041iKUN40,TGN4#201107-201611

L=490

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-59040×2iKUN40,TGN4#201107-201611

L=120

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

9006805017

main90068-05017

90119T0144

main90119-T0144

9046901005

main90469-01005

20 parts on this diagram · 1 diagram in section
