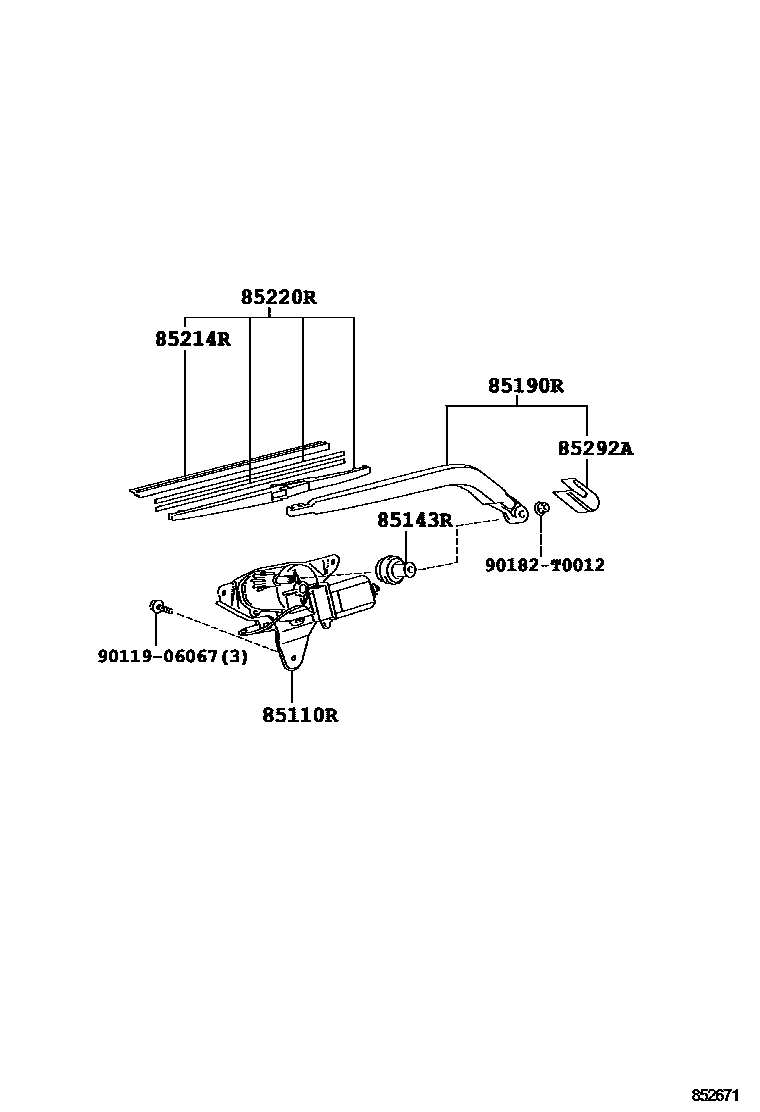

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0K020iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

main85130-0K030iKUN40,TGN40..(DLX,GL)..IND201201-201501

main85130-0K031iKUN40..(DLX,GL)..IND201501-201603

85143RGROMMET, REAR WIPER MOTOR

main85143-0K010iKUN40..STD..IDN;KUN40,TGN41..DLX,GL;TGN40..LHD..(DLX,GL);TGN40..RHD..(DLX,GL,STD)201107-201611

85190RARM ASSY, REAR WIPER

main85241-0K010iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

main85241-0K020iKUN40,TGN40..(DLX,GL)..IND201201-201603

85214RRUBBER, REAR WIPER

main85214-0K010iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

main85214-0K080iKUN40,TGN40..(DLX,GL)..IND201201-201603

85220RBLADE ASSY, REAR WIPER

main85242-0K010iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

main85242-0K020iKUN40,TGN40..(DLX,GL)..IND201201-201603

85292ACAP, REAR WIPER ARM HEAD

main85292-0K010iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

main85292-0K020iKUN40,TGN40..(DLX,GL)..IND201201-201603

9011906067

main90119-06067

90182T0012

main90182-T0012

8 parts on this diagram · 1 diagram in section
