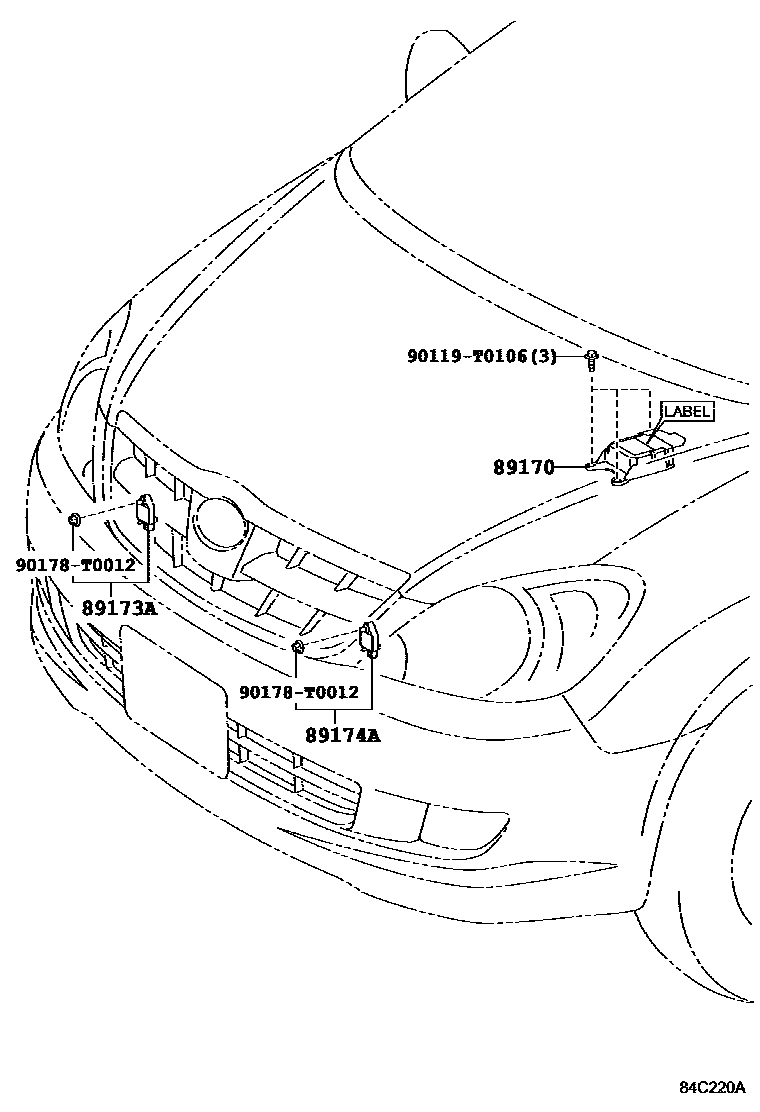

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-0K171iKUN40,TGN40..GL..PHL201107-201302

P/N LABEL=891700K171

main89170-0K181iTGN41201107-201611

P/N LABEL=891700K181

main89170-0K191iTGN40..DLX..MA201107-201207

P/N LABEL=891700K191

89173ASENSOR, AIRBAG, FRONT RH

main89173-09550iKUN40..(DLX,STD)..IND201501-201611

main89173-09560iTGN40..MA201110-201601

89174ASENSOR, AIRBAG, FRONT LH

main89173-09550iKUN40..(DLX,STD)..IND201501-201611

main89173-09560iTGN40..MA201110-201601

90119T0106

main90119-T0106

90178T0012

main90178-T0012

5 parts on this diagram · 1 diagram in section
