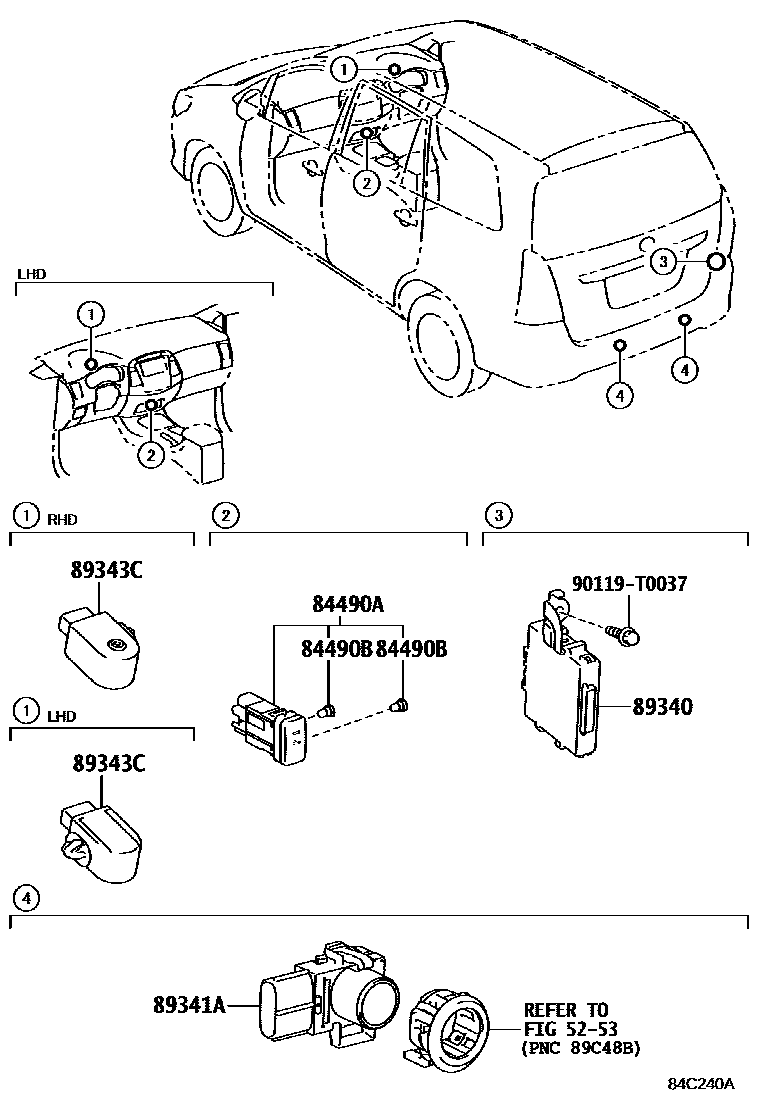

CLEARANCE & BACK SONAR

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-0K010supersedes 84490-0K011iTGN40..GL..VN201107-201403

main84490-0K011iKUN40,TGN40..DLX..IND; KUN40..GL..IND201401-201501

SRS AIR BAG-WITH(DRIVER ONLY)

main84490-0K020iTGN40..DLX..TH;TGN41..GL..GCC;KUN40,TGN40..(DLX,GL)..IDN201208-201307

main84490-0K021iTGN40..DLX..TH;TGN41..GL..GCC;KUN40,TGN40..(DLX,GL)..IDN201308-201510

84490BBULB(FOR BACK SONAR SWITCH)

main90010-01089supersedes 90011-01056iTGN40..DLX..TH;TGN40..GL..(IND,PHL);KUN40,TGN41..LHD..GL;KUN40,TGN40..(DLX,GL)..(IDN,VN)201308-201611

14V 0.63W,W(CAP)

main90011-01055iTGN40..GL..TH201107-201208

14V 0.84W,W(CAP)

main90011-01056iTGN40..GL..TH201107-201208

14V 0.91W

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-71030supersedes 89340-71050iTGN40..DLX..TH201208-201510

89341ASENSOR, ULTRASONIC, NO.1

main89341-48010-C1×2supersedes 89341-60050-C2iTGN41..GL..GCC;KUN40,TGN40..(DLX,GL)..IDN201107-201510

DUMMY-MAT BLACK,040 ,1C0 ,1D6 ,1E3 ,1H2 ,209 ,218 ,4U3 ,5A7 ,8S9

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iTGN40..GL..TH201107-201208

90119T0037

main90119-T0037

7 parts on this diagram · 1 diagram in section
