SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1DOOR,ROOF,FLOOR & BACK DOOR

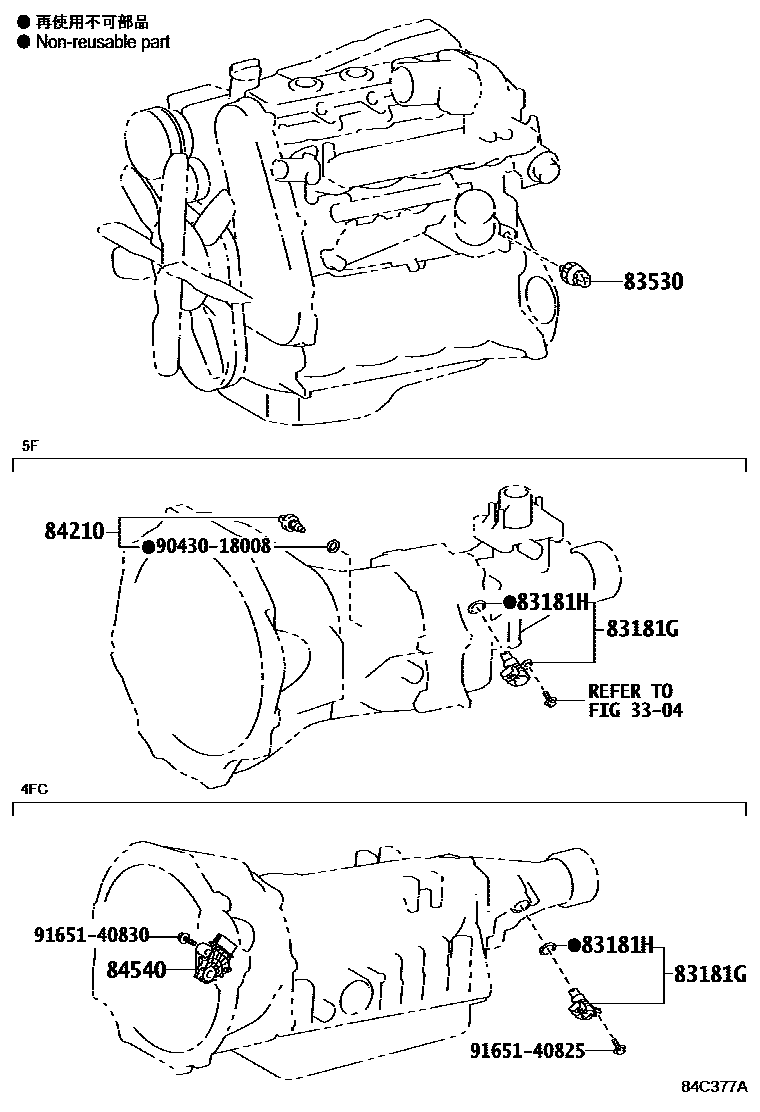

3304

83181GSENSOR, SPEEDOMETER

main83181-12020iTGN41..5F201107-201510

main83181-24050iTGN40..4FC..DLX..MA201107-201611

main83181-35041iKUN40,TGN40..5F201107-201611

main83181-35070iKUN40,TGN41..4FC201107-201603

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iTGN40..4FC..DLX..MA201107-201611

main90301-18018iKUN40,TGN40..5F201107-201611

main96711-24030iTGN41..5F201107-201510

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN40..IND,PHL201107-201603

DENSO

main83530-28020iTGN40..IND,VN201107-201603

DENSO

main83530-60010iKUN40..IDN201107-201603

YAZAKI

main83530-60020iTGN40..4FC..MA;TGN4#..IDN,SA,TH201107-201603

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN40,TGN40..5F201107-201611

TYPE D:REFER 33-01

main84210-52050iKUN40,TGN40..5F201107-201611

TYPE A:REFER 33-01

main84210-71020iTGN41..5F201107-201510

84540SWITCH ASSY, NEUTRAL START

main84540-04010iKUN40..HDCR201309-201603

(L)

main84540-35050iTGN41..4FC201107-201510

main84540-71010iKUN40..HDCR201107-201309

main84540-71010iKUN40..HDCR201309-201603

(J)

main84540-71020iTGN40..4FC201107-201611

9043018008

main90430-18008

9165140825

main91651-40825

9165140830

main91651-40830

9 parts on this diagram · 10 diagrams in section
