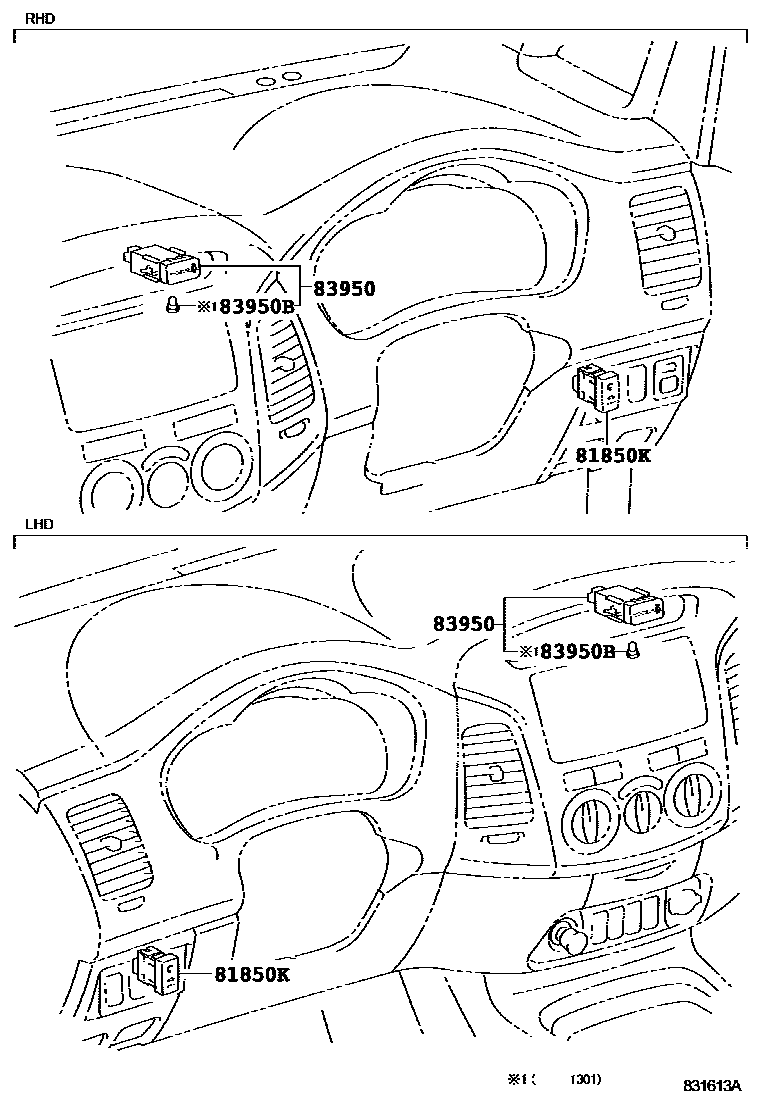

INDICATOR
81850KLAMP ASSY, SECURITY INDICATOR
ANTI-THEFT SYSTEM-*IM&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main81850-71010iTGN40..4FC..DLX..VN;KUN40,TGN40..LHD..GL;TGN4#..(DLX,GL)..(GCC,MA,SA,TH)201107-201611
83950LAMP ASSY, TELLTALE
main83950-0K010iTGN40..5F..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..4FC..(DLX,STD)..IDN; TGN41..DLX;TGN40..4FC..DLX..VN201107-201301
SRS AIR BAG-WITH(DRIVER & PASSENGER)
83950BBULB, TELLTALE LAMP
main90010-07011iTGN40..5F..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..4FC..(DLX,STD)..IDN; TGN41..DLX;TGN40..4FC..DLX..VN201107-201301
14V 1.4W; 14V 1.4W,SRS AIR BAG-WITH(DRIVER & PASSENGER)
3 parts on this diagram · 1 diagram in section
