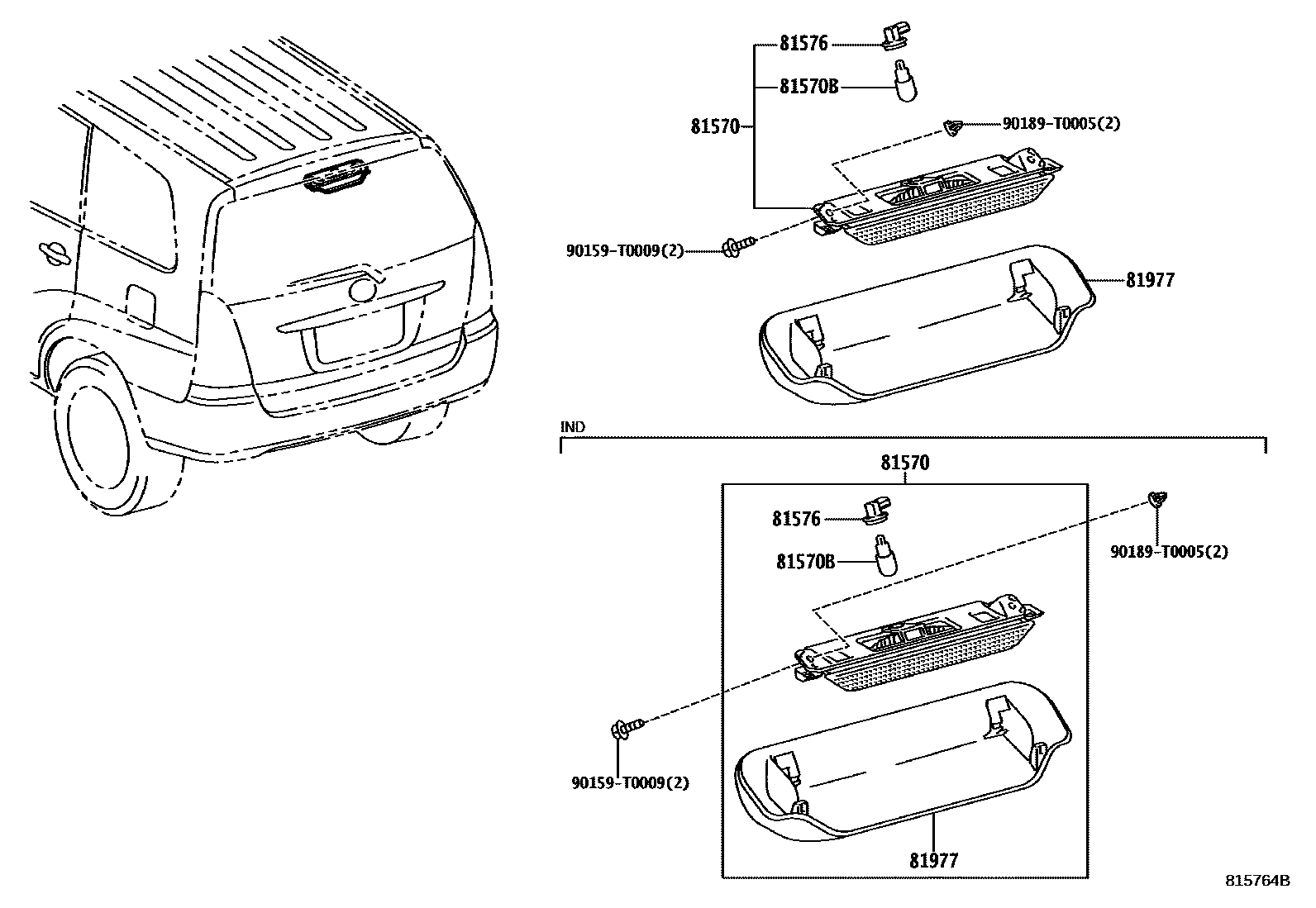

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-09012iKUN40,TGN40..IND201201-201603

main81570-0K030iTGN40..DLX..VN;TGN4#..GCC,MA,SA,TH;KUN40,TGN40..GL..(IDN,PHL,VN)201107-201611

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iKUN40..IND201510-201611

12V 16W

main90981-WB007iKUN40,TGN40..IND201201-201510

12V 16W

81576SOCKET & WIRE, CENTER STOP LAMP

main81275-12501iTGN40..DLX..VN;TGN4#..GCC,MA,SA,TH;KUN40,TGN40..GL..(IDN,PHL,VN)201107-201611

main81576-0K040iKUN40,TGN40..IND201201-201603

81977COVER, CENTER STOP LAMP

main81977-0K010iKUN40,TGN40..DLX..PHL201502-201611

main81977-0K020iKUN40,TGN40..IND201201-201603

90159T0009

main90159-T0009

90189T0005

main90189-T0005

6 parts on this diagram · 1 diagram in section
