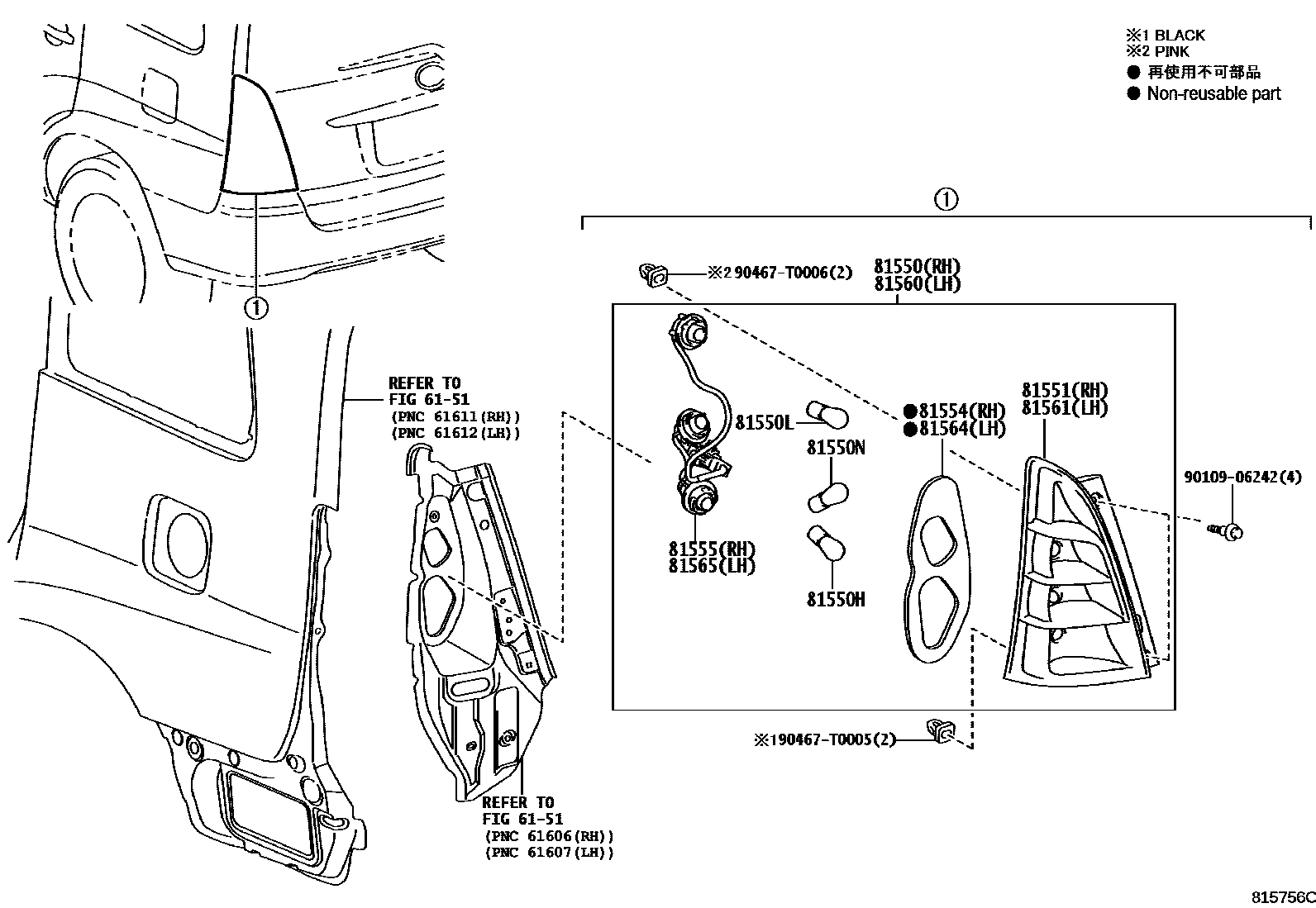

REAR COMBINATION LAMP

0001 1 0002 1

6151SIDE MEMBER

→ Go to FIG 61-51

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main81550-0K220iKUN40,TGN40..IND201201-201603

81550HBULB, TAIL & STOP LAMP

main99132-21210×2iKUN40,TGN4#201107-201611

81550LBULB, REAR TURN SIGNAL LAMP

main90080-81116×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90981-WF005×2iKUN40,TGN40..IND201201-201603

81550NBULB, BACK UP LAMP

main90981-11059×2iKUN40,TGN40..IND201201-201603

main99132-11210×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main81551-0K220iKUN40,TGN40..IND201201-201603

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-0K220iKUN40,TGN40..IND201201-201603

main81554-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main81555-0K220iKUN40,TGN40..IND201201-201603

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main81560-0K220iKUN40,TGN40..IND201201-201603

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main81561-0K220iKUN40,TGN40..IND201201-201603

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-0K220iKUN40,TGN40..IND201201-201603

main81564-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K210iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main81555-0K220iKUN40,TGN40..IND201201-201603

9010906242

main90109-06242

90467T0005

main90467-T0005

90467T0006

main90467-T0006

15 parts on this diagram · 2 diagrams in section
