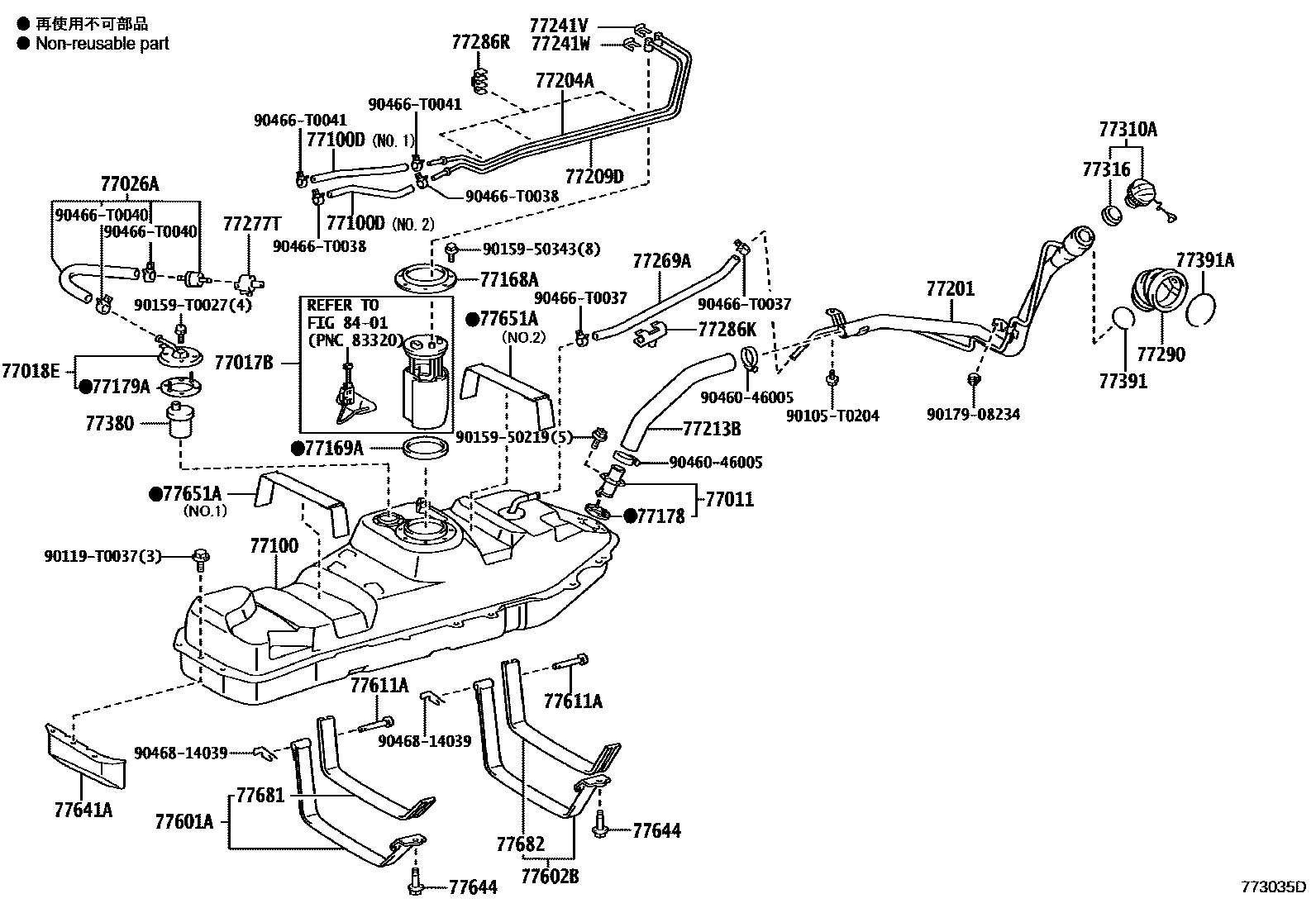

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE,W(FUEL COOLER) 0007 1FUEL TUBE 0008 1FUEL LID OPENER

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-0K040iKUN40,TGN40201107-201611

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-0K030iKUN40..IDN,PHL201107-201603

main77010-0K050iKUN40..IND201201-201603

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-0K020iKUN40201107-201603

main77018-0K030iTGN40201107-201611

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0K020iTGN41201107-201510

main77027-0K030iKUN40201107-201603

77100TANK ASSY, FUEL

main77001-0K030iTGN41201107-201510

main77001-0K310iTGN40201107-201611

main77001-0K320iKUN40201107-201603

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95338-08022iKUN40..IDN201107-201510

L=220,NO.1:REFER ILLUST.

main95338-10020supersedes 95337-08044iKUN40..IDN201107-201510

L=200,NO.2:REFER ILLUST.

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iKUN40,TGN40201107-201611

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iTGN41201107-201510

main77169-0K020iKUN40,TGN40..IND201201-201603

(L)

main77169-33020iKUN40,TGN40..IND201201-201603

(J)

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iKUN40,TGN40..IDN201107-201510

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-0K010iKUN40,TGN40201107-201611

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K151iTGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main77201-0K161iKUN40..IDN,PHL201107-201603

main77201-0K190iKUN40,TGN40..IND201201-201603

77204ATUBE, FUEL TANK RETURN

main77204-0K030iTGN41201107-201510

main77204-0K050iTGN40201107-201611

main77204-0K060iKUN40201107-201603

main77204-0K070iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K030iTGN41201107-201510

main77209-0K050iTGN40201107-201611

main77209-0K060iKUN40201107-201603

main77209-0K130iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K030iKUN40,TGN40201107-201611

main77213-0K070iTGN41..GCC201107-201301

main77213-0K080iTGN41..GCC201301-201510

77241VCLIP, TUBE JOINT

main77241-35450iKUN40201107-201603

77241WCLIP, TUBE JOINT

main77241-33011×2iTGN4#201107-201611

77269AHOSE, FUEL TANK BREATHER

main77269-0K030iTGN41201107-201510

main77269-0K040iKUN40,TGN40..IDN,MA,PHL,TH,VN201107-201611

main77269-0K050iKUN40,TGN40..IND201201-201603

77277TBRACKET, CHECK VALVE

main77277-0K010iKUN40201107-201603

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K120iKUN40,TGN4#201107-201611

77286RCLAMP, FUEL TUBE, NO.10

main77286-0K020×3iKUN40,TGN40201107-201611

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main77291-0K040iKUN40,TGN40..IND201201-201603

77310ACAP ASSY, FUEL TANK

main77300-52030iKUN40,TGN4#201107-201611

77316GASKET, FUEL TANK CAP

main77316-52040iKUN40,TGN4#201107-201611

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iKUN40,TGN40201107-201611

77391RING, FUEL INLET BOX

main77371-35010iKUN40,TGN4#201112-201611

main77391-0K010iKUN40,TGN4#201107-201112

77391ARING, FUEL INLET BOX

main77391-0K020iKUN40,TGN4#201107-201611

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K020iTGN41201107-201510

main77601-0K030iKUN40,TGN40..IDN,MA,TH,VN201107-201611

main77601-0K060iKUN40,TGN40..IND201201-201603

main77601-0K110iKUN40,TGN40..PHL201202-201603

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K020iTGN41201107-201510

main77602-0K030iKUN40,TGN40..IDN,MA,TH,VN201107-201611

main77602-0K060iKUN40,TGN40..IND201201-201603

main77602-0K100iKUN40,TGN40..PHL201202-201603

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×3iTGN41201107-201510

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K010iKUN40,TGN40201107-201611

77644BOLT, FUEL TANK

main77644-35030×3iTGN41201107-201510

77651ACUSHION, FUEL TANK, NO.1

main77651-0K010iKUN40,TGN40..IDN,MA,PHL,TH,VN201107-201611

NO.1:REFER ILLUST.

main77651-0K020iKUN40,TGN40..IDN,MA,PHL,TH,VN201107-201611

NO.2:REFER ILLUST.

main77651-0K040iKUN40,TGN40..IND201201-201603

NO.1:REFER ILLUST.

main77652-0K050iKUN40,TGN40..IND201201-201603

NO.2:REFER ILLUST.

77681SEAT, FUEL TANK BAND, RH

main77681-0K020iKUN40,TGN40201107-201611

main77681-0K050iTGN41201107-201510

77682SEAT, FUEL TANK BAND, LH

main77681-0K030iKUN40,TGN40201107-201611

main77682-0K010iTGN41201107-201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0204

main90105-T0204

90119T0037

main90119-T0037

9015950219

main90159-50219

9015950343

main90159-50343

90159T0027

main90159-T0027

9017908234

main90179-08234

9046046005

main90460-46005

90466T0037

main90466-T0037

90466T0038

main90466-T0038

90466T0040

main90466-T0040

90466T0041

main90466-T0041

9046814039

main90468-14039

47 parts on this diagram · 8 diagrams in section
