SEAT & SEAT TRACK

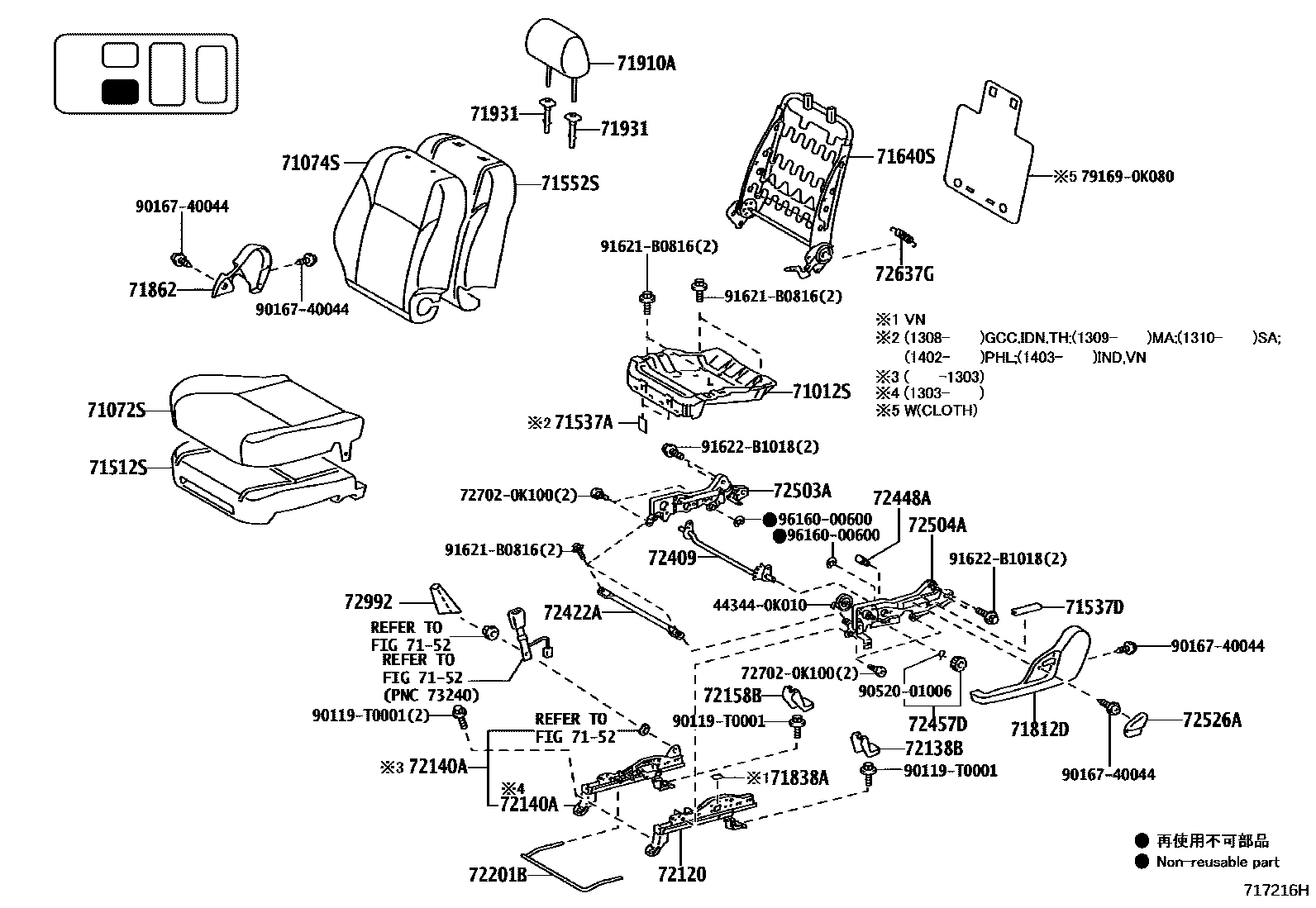

Parts diagram
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-0K030i201107-201603
main71011-0K050i201110-201611
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0K310-E2i201110-201601
GREGE,TRIM4#
main71072-0K320-E2i201110-201601
GREGE,TRIM4#
main71072-0K340-E1i201201-201501
GREGE,TRIM4#
main71072-0K340-E3i201501-201603
ORK,TRIM4#
main71072-0K400-B1i201202-201603
MD.GRAY,TRIM1#
main71072-0K410-B1i201202-201603
MD.GRAY,TRIM1#
main71072-0K420-E0i201202-201603
GREGE,TRIM4#
main71072-0K440-E2i201107-201510
GREGE,TRIM4#
main71072-0K450-E1supersedes 71072-0K510-E2i201107-201510
GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GREGE,TRIM4#
main71072-0K560-E1i201201-201408
GREGE,TRIM4#
main71072-0K561-E1i201408-201501
ORK,TRIM4#
main71072-0K590-E0i201403-201611
GREGE,TRIM4#
main71072-0K620-E0i201201-201501
GREGE,TRIM4#
main71072-0K620-E3i201501-201603
ORK,TRIM4#
main71072-0K850-E1i201107-201510
GREGE,TRIM4#
main71072-0KB80-E2i201202-201611
GREGE,TRIM4#
main71072-0KC51-E0i201107-201510
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71072-0KE50-E0i201107-201510
GREGE,TRIM4#
main71072-0KE60-B1i201202-201403
MD.GRAY,TRIM1#
main71072-0KF00-B0i201403-201611
MD.GRAY,TRIM1#
main71072-0K670-E2i201202-201603
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71072-0KC41-E0supersedes 71072-0K200-E1i201308-201408
ECUADOR SPEC&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71072-0KQ30-E1supersedes 71072-0K561-E2i201501-201603
SEAT COVER MATERIAL-LEATHER,ORK,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0K120-E1i201107-201510
GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GREGE,TRIM4#
main71073-0K190-E2i201107-201510
GREGE,TRIM4#
main71073-0K280-E0i201201-201501
GREGE,TRIM4#
main71073-0K280-E3i201501-201603
ORK,TRIM4#
main71073-0K290-E1i201201-201501
GREGE,TRIM4#
main71073-0K290-E3i201501-201603
ORK,TRIM4#
main71073-0K300-E1i201201-201501
GREGE,TRIM4#
main71073-0K330-E2i201107-201510
GREGE,TRIM4#
main71073-0K410-E2i201110-201601
GREGE,TRIM4#
main71073-0K420-E2i201110-201601
GREGE,TRIM4#
main71073-0K510-E0i201202-201611
GREGE,TRIM4#
main71073-0K570-B1i201202-201603
MD.GRAY,TRIM1#
main71073-0K580-B1i201202-201603
MD.GRAY,TRIM1#
main71073-0K590-E0i201202-201603
GREGE,TRIM4#
main71073-0KD10-E2i201202-201611
GREGE,TRIM4#
main71073-0KD31-E0i201107-201510
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71073-0KF30-E0i201107-201510
GREGE,TRIM4#
main71073-0KF40-B1i201202-201403
MD.GRAY,TRIM1#
main71073-0KG50-B0i201403-201611
MD.GRAY,TRIM1#
main71073-0K690-E2i201202-201603
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71073-0KU90-E1supersedes 71073-0K300-E2i201501-201603
SEAT COVER MATERIAL-LEATHER,ORK,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71051-0K020i201210-201601
main71511-0K050i201107-201210
7152SEAT BELT
→ Go to FIG 71-52
71537APROTECTOR, FRONT SEAT CUSHION
main71537-0K020×4i201309-201611
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-71010i201107-201611
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0K020i201107-201611
main71551-0K040i201107-201510
main71551-0K050i201201-201603
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0K020i201107-201603
main71640-0K040i201110-201611
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0K020-B1i201202-201603
MD.GRAY,TRIM1#
main71812-0K020-C0i201501-201603
BLACK,TRIM4#
main71812-0K020-E0i201107-201501
GREGE,TRIM4#
main71812-0K040-B1i201403-201611
MD.GRAY,TRIM1#
main71812-0K040-E0i201107-201611
GREGE,TRIM4#
71838APROTECTOR, FRONT SEAT CUSHION EDGE
main71647-0K010×4i201201-201611
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0K020-B1i201202-201603
MD.GRAY,TRIM1#
main71862-0K020-C0i201501-201603
BLACK,TRIM4#
main71862-0K020-E0i201107-201501
GREGE,TRIM4#
main71862-0K040-B1i201202-201611
MD.GRAY,TRIM1#
main71862-0K040-E0i201107-201611
GREGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-0K100-E4×2i201107-201510
GREGE,TRIM4#
main71910-0K100-E5×2i201107-201510
GREGE,TRIM4#
main71910-0K110-E1×2i201107-201510
GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GREGE,TRIM4#
main71910-0K200-E0×2i201201-201501
GREGE,TRIM4#
main71910-0K200-E2×2i201201-201501
GREGE,TRIM4#
main71910-0K200-E3×2i201501-201603
ORK,TRIM4#
main71910-0K200-E5×2i201501-201603
ORK,TRIM4#
main71910-0K210-E1×2i201201-201501
GREGE,TRIM4#
main71910-0K390-E2×2i201110-201601
GREGE,TRIM4#
main71910-0K410-E2×2i201110-201601
GREGE,TRIM4#
main71910-0K450-B1×2i201202-201403
MD.GRAY,TRIM1#
main71910-0K470-E0×2i201202-201611
GREGE,TRIM4#
main71910-0K490-B1×2i201202-201603
MD.GRAY,TRIM1#
main71910-0K500-E0×2i201202-201603
GREGE,TRIM4#
main71910-0K800-E2×2i201202-201303
GREGE,TRIM4#
main71910-0K801-E0×2i201303-201611
GREGE,TRIM4#
main71910-0K821-E0×2i201107-201510
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71910-0KA50-E0×2i201107-201510
GREGE,TRIM4#
main71910-0KB20-B0×2i201202-201403
MD.GRAY,TRIM1#
main71910-0K570-E2×2i201202-201302
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71910-0K571-E0×2i201302-201603
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71910-0KF00-E1×2supersedes 71910-0K210-E3i201501-201603
SEAT COVER MATERIAL-LEATHER,ORK,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-B5×2i201202-201403
W(LOCK),MD.GRAY,TRIM1#
main71930-02050-E1×2i201107-201611
W(LOCK),GREGE,TRIM4#
main71930-02380-C0×2i201501-201603
W(LOCK),BLACK,TRIM4#
main71930-02380-E0×2i201107-201501
W(LOCK),GREGE,TRIM4#
main71931-02030-B5×2i201202-201611
W/O(LOCK),MD.GRAY,TRIM1#
main71931-02030-C0×2i201501-201603
W/O(LOCK),BLACK,TRIM4#
main71931-02030-E1×2i201107-201501
W/O(LOCK),GREGE,TRIM4#
main71930-02050×2i201202-201208
W(LOCK),SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN
main71931-02030×2i201202-201208
W/O(LOCK),SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-0K040i201107-201403
main72120-0K050i201107-201611
72138BCOVER, SEAT TRACK, LH
main72137-0K030-B1i201202-201611
MD.GRAY,TRIM1#
main72137-0K030-C0i201501-201603
BLACK,TRIM42
main72137-0K030-E0i201107-201501
GREGE,TRIM4#
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-0K040i201107-201403
main72140-0K050i201107-201303
main72140-0K051i201303-201611
72158BCOVER, SEAT TRACK BRACKET, INNER LH
main72158-0K020-B1i201202-201611
MD.GRAY,TRIM1#
main72158-0K020-C0i201501-201603
BLACK,TRIM42
main72158-0K020-E0i201501-201603
GREGE,TRIM41
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0K010i201107-201308
main72211-0K030i201201-201603
main72211-0K070i201110-201601
main72211-0K140i201308-201611
72409SHAFT SUB-ASSY, VERTICAL ADJUSTING
main72409-0K030i201107-201603
main72409-0K040i201107-201611
72422AROD, FRONT SEAT ADJUSTER
main72422-0K020i201107-201611
72448PIN, FR SEAT ADJUSTER, NO.2 RH
main72448-0K010i201107-201603
72448APIN, FR SEAT ADJUSTER, NO.2 LH
main72448-0K010i201107-201611
72457DKNOB, VERTICAL SEAT ADJUSTER, LH
main72457-0K010-E0i201107-201510
GREGE,TRIM4#
main72457-0K020-B1i201403-201611
MD.GRAY,TRIM1#
main72457-0K020-E0i201403-201611
GREGE,TRIM4#
72503ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K050i201107-201603
main72503-0K080i201107-201611
72503AARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K060i201403-201611
main72503-0K070i201107-201403
main72503-0K071i201303-201603
72504ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K050i201107-201603
main72504-0K070i201107-201303
main72504-0K071i201303-201611
72504AARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K060i201403-201611
main72504-0K080i201107-201403
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0K040-B1i201202-201403
MD.GRAY,TRIM1#
main72526-0K040-C0i201501-201603
BLACK,TRIM4#
main72526-0K040-E0i201107-201501
GREGE,TRIM4#
72637GSPRING, SEATBACK, LH
main72637-0K010i201107-201611
72992COVER, FRONT SEAT CUSHION, LH
main72991-0K020i201107-201611
443440K010SEAT, SPRING(FOR VANE PUMP)
main44344-0K010
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
791690K080ROD, REAR SEAT HINGE CONNECTOR
main79169-0K080
90119T0001
main90119-T0001
9016740044
main90167-40044
9052001006
main90520-01006
91621B0816
main91621-B0816
91622B1018
main91622-B1018
9616000600
main96160-00600

40 parts on this diagram · 15 diagrams in section
