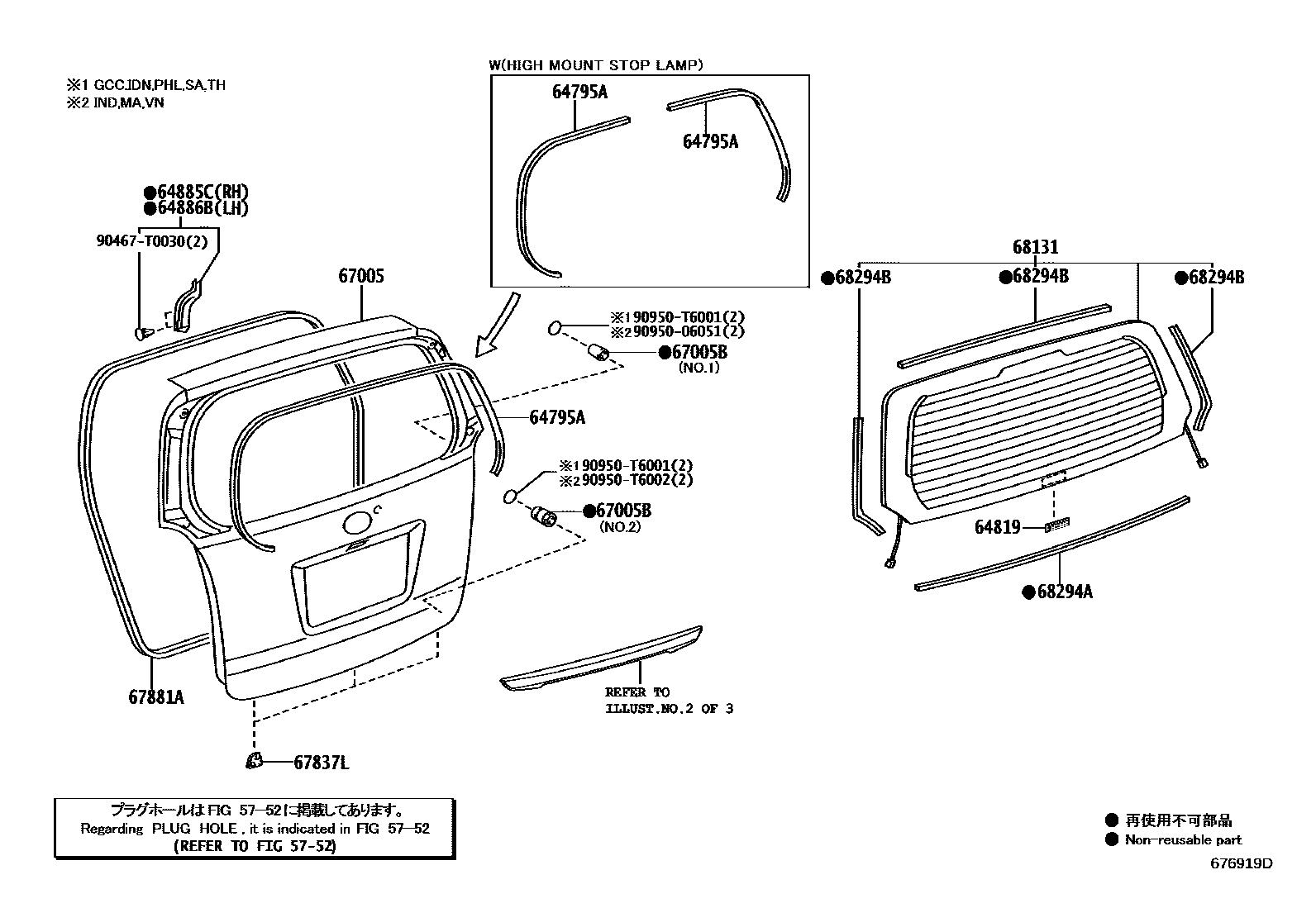

BACK DOOR PANEL & GLASS
5752HOLE PLUG
64795ATRIM, BACK WINDOW OPENING
64819SPACER, BACK WINDOW GLASS, NO.2
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
BACK MONITOR-WITH
BACK MONITOR-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE); FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)&BACK MONITOR-WITHOUT
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)&BACK MONITOR-WITH
67005BCUSHION(FOR BACK DOOR PANEL)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*TT,T=3.1,GREEN
*EHTT,T=3.1,GREEN
*TT,T=3.1,CLEAR
*EHTT,T=3.1,GREEN
68294ADAM, BACK DOOR GLASS ADHESIVE
68294BDAM, BACK DOOR GLASS ADHESIVE
UPPER
RH
LH
90467T0030
main90467-T0030
9095006051
main90950-06051
90950T6001
main90950-T6001
90950T6002
main90950-T6002
16 parts on this diagram · 3 diagrams in section
