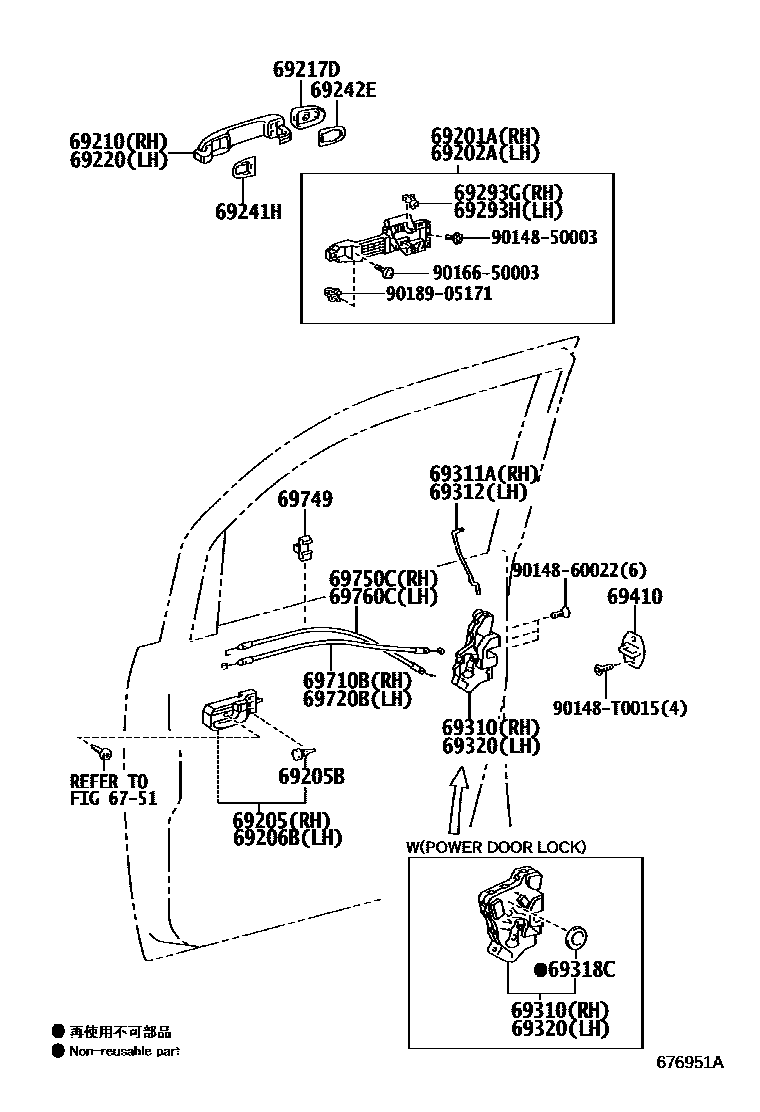

FRONT DOOR LOCK & HANDLE

6751

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main69201-0K030iKUN40,TGN40..IND201201-201603

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main69202-0K030iKUN40,TGN40..IND201201-201603

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0K010-B1iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40..(DLX,STD)..PHL201202-201611

MD.GRAY,TRIM1#

main69205-0K010-E0iKUN40,TGN40..DLX..PHL;KUN40,TGN4#..(DLX,LO,STD)..(GCC,IDN,TH)201107-201510

GREGE,TRIM4#

main69205-0K020-B1iTGN40..5F..DLX..VN201202-201403

MD.GRAY,TRIM1#

main69205-0K020-E0iTGN40..DLX..(MA,VN);KUN40,TGN4#..GL..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

GREGE,TRIM4#

main69205-0K030-E0iKUN40,TGN40..(DLX,STD)..IND201201-201501

GREGE,TRIM4#

main69205-0K030-E1iKUN40..(DLX,STD)..IND201501-201603

ORK,TRIM4#

main69205-0K040-E0iKUN40,TGN40..GL..IND201201-201501

GREGE,TRIM4#

sub69205-0K040

main69205-0K040-E2iKUN40..GL..IND201501-201603

ORK,TRIM4#

sub69205-0K040

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iKUN40,TGN40..IND201107-201611

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0K010-B1iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40..(DLX,STD)..PHL201202-201611

MD.GRAY,TRIM1#

main69206-0K010-E0iKUN40,TGN40..DLX..PHL;KUN40,TGN4#..(DLX,LO,STD)..(GCC,IDN,TH)201107-201510

GREGE,TRIM4#

main69206-0K020-B1iTGN40..5F..DLX..VN201202-201403

MD.GRAY,TRIM1#

main69206-0K020-E0iTGN40..DLX..(MA,VN);KUN40,TGN4#..GL..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

GREGE,TRIM4#

main69206-0K030-E0iKUN40,TGN40..(DLX,STD)..IND201201-201501

GREGE,TRIM4#

main69206-0K030-E1iKUN40..(DLX,STD)..IND201501-201603

ORK,TRIM4#

main69206-0K040-E0iKUN40,TGN40..GL..IND201201-201501

GREGE,TRIM4#

sub69206-0K040

main69206-0K040-E2iKUN40..GL..IND201501-201603

ORK,TRIM4#

sub69206-0K040

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0K010iTGN40..DLX..VN;KUN40,TGN4#..GL..(GCC,IDN,MA,PHL,TH,VN)201107-201611

PLATED

main69210-0K030iKUN40,TGN40..GL..IND201201-201603

PLATED

main69210-0K900iKUN40,TGN40..DLX..IND201201-201603

PAINT REQ.

main69211-0K110iKUN40..STD..IND201201-201603

NO PAINT REQ.

sub69210-0K900

main69211-0K330iKUN40,TGN4#..DLX..(GCC,MA,PHL);KUN40,TGN40..(LO,STD)..(IDN,PHL,VN)201309-201611

NO PAINT REQ.

main69211-0K902iTGN41..SA;TGN40..(DLX,STD)..TH;KUN40,TGN40..DLX..IDN201107-201510

PAINT REQ.

main69211-42010iKUN40,TGN4#..DLX..(GCC,MA,PHL);KUN40,TGN40..(LO,STD)..(IDN,PHL,VN)201107-201308

NO PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0D380iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40,TGN41..LHD..(DLX,STD)201309-201611

BLACK MATERIAL,DRIVER & PASSENGER

main69217-0D380iTGN40..DLX..MA;KUN40,TGN40..(LO,STD)..IDN201309-201601

BLACK MATERIAL,DRIVER SIDE

main69217-0K040iTGN41..GL..GCC201107-201510

*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE

main69217-0K040iTGN40..DLX..VN;KUN40,TGN40..GL..(IDN,MA,PHL,TH,VN)201107-201611

*CR,DRIVER SIDE

main69217-0K040iTGN41..GL..GCC201107-201510

*CR,DRIVER & PASSENGER

main69217-0K120iTGN40..DLX..VN;KUN40,TGN40..GL..(IDN,MA,PHL,TH,VN)201107-201611

*CR,PASSENGER SIDE

main69217-0K130iTGN40..DLX..MA;KUN40,TGN40..(LO,STD)..IDN201107-201601

BLACK,PASSENGER SIDE

main69217-0K180iKUN40..STD..IND201201-201603

BLACK MATERIAL,PASSENGER SIDE

sub69217-0K908

main69217-0K190iKUN40..STD..IND201201-201603

BLACK MATERIAL,DRIVER SIDE

sub69217-0K907

main69217-0K200iKUN40,TGN40..GL..IND201201-201603

*CR,DRIVER SIDE

main69217-0K210iKUN40,TGN40..GL..IND201201-201603

*CR,PASSENGER SIDE

main69217-0K902iTGN41..SA;TGN40..(DLX,STD)..TH;KUN40,TGN40..DLX..IDN201107-201510

LESS COLOR,DRIVER SIDE

main69217-0K903iTGN41..SA;TGN40..(DLX,STD)..TH;KUN40,TGN40..DLX..IDN201107-201510

LESS COLOR,PASSENGER SIDE

main69217-0K907iKUN40,TGN40..DLX..IND201201-201603

LESS COLOR,DRIVER SIDE

main69217-0K908iKUN40,TGN40..DLX..IND201201-201603

LESS COLOR,PASSENGER SIDE

main69217-42010iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40,TGN41..LHD..(DLX,STD)201107-201308

BLACK MATERIAL,DRIVER & PASSENGER

main69217-42010iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40,TGN41..LHD..(DLX,STD)201107-201308

BLACK MATERIAL,DRIVER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0K010iTGN40..DLX..VN;KUN40,TGN4#..GL..(GCC,IDN,MA,PHL,TH,VN)201107-201611

PLATED

main69210-0K030iKUN40,TGN40..GL..IND201201-201603

PLATED

main69210-0K900iKUN40,TGN40..DLX..IND201201-201603

PAINT REQ.

main69211-0K110iKUN40..STD..IND201201-201603

NO PAINT REQ.

sub69210-0K900

main69211-0K330iKUN40,TGN4#..DLX..(GCC,MA,PHL);KUN40,TGN40..(LO,STD)..(IDN,PHL,VN)201309-201611

NO PAINT REQ.

main69211-0K902iTGN41..SA;TGN40..(DLX,STD)..TH;KUN40,TGN40..DLX..IDN201107-201510

PAINT REQ.

main69211-42010iKUN40,TGN4#..DLX..(GCC,MA,PHL);KUN40,TGN40..(LO,STD)..(IDN,PHL,VN)201107-201308

NO PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-06020iKUN40,TGN40..(GL,STD)..IND201201-201309

*299

main69241-06020iKUN40,TGN40..DLX..IND201201-201309

(L)

main69241-06020iKUN40,TGN40..IND201309-201603

main69241-0D180iTGN4#..5F..(GL,STD)..(SA,VN);KUN40,TGN4#..(DLX,LO,STD)..(GCC,IDN,MA,PHL,TH)201309-201611

main69241-42020iTGN40..DLX..VN;KUN40,TGN4#..GL..(GCC,IDN,MA,PHL,TH,VN)201107-201404

main69241-42020iKUN40,TGN40..DLX..IND201201-201305

*303

main69241-42020iKUN40,TGN40..DLX..IND201201-201305

(J)

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0D120iKUN40,TGN41..IND,SA;TGN40..5F..(GL,STD)..(IND,VN);TGN40..(DLX,LO,STD)..(IDN,IND,MA,PHL,TH);KUN40,TGN41..(DLX,LO,STD)..(GCC,IDN,PHL)201309-201611

main69242-42010iTGN40..DLX..VN;KUN40,TGN4#..GL..(GCC,IDN,MA,PHL,TH,VN)201107-201404

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-10010iKUN40,TGN4#201107-201611

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-10020iKUN40,TGN4#201107-201611

69310LOCK ASSY, FRONT DOOR, RH

main69030-0K060iKUN40,TGN4#..(DLX,GL,STD)..(IDN,MA,SA,TH)201107-201601

main69030-0K070iTGN40..STD..VN201107-201611

main69030-0K080iKUN40,TGN40..(DLX,GL)..IND201201-201603

main69310-0K060iKUN40,TGN40..LO201107-201510

main69310-0K070iKUN40..STD..IND201201-201603

main69310-0K080iKUN40,TGN40..STD..PHL201202-201603

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main69311-0K050iKUN40,TGN40..IND201201-201603

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main69312-0K050iKUN40,TGN40..IND201201-201603

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iKUN40..STD..IDN;KUN40,TGN41..DLX,GL;TGN40..LHD..(DLX,GL);TGN40..RHD..(DLX,GL,STD)201107-201611

69320LOCK ASSY, FRONT DOOR, LH

main69040-0K060iKUN40,TGN4#..(DLX,GL,STD)..(IDN,MA,SA,TH)201107-201601

main69040-0K070iKUN40,TGN4#..LHD..(DLX,GL)201107-201611

main69040-0K080iKUN40,TGN40..(DLX,GL)..IND201201-201603

main69320-0K060iKUN40,TGN40..LO201107-201510

main69320-0K070iKUN40..STD..IND201201-201603

main69320-0K080iTGN40..STD..VN201202-201603

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main69410-0K050iKUN40,TGN40..IND201201-201603

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0K070iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH201107-201603

main69710-0K080iKUN40,TGN40..IND201201-201603

main69710-0K110iTGN40..VN201202-201611

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0K070iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH201107-201603

main69710-0K080iKUN40,TGN40..IND201201-201603

main69710-0K110iTGN40..VN201202-201611

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iKUN40,TGN4#201107-201611

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0K070iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH201107-201603

main69750-0K080iKUN40,TGN40..IND201201-201603

main69750-0K110iTGN40..VN201202-201611

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-0K070iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH201107-201603

main69760-0K080iKUN40,TGN40..IND201201-201603

main69760-0K110iTGN40..VN201202-201611

9014850003

main90148-50003

9014860022

main90148-60022

90148T0015

main90148-T0015

9016650003

main90166-50003

9018905171

main90189-05171

29 parts on this diagram · 1 diagram in section
