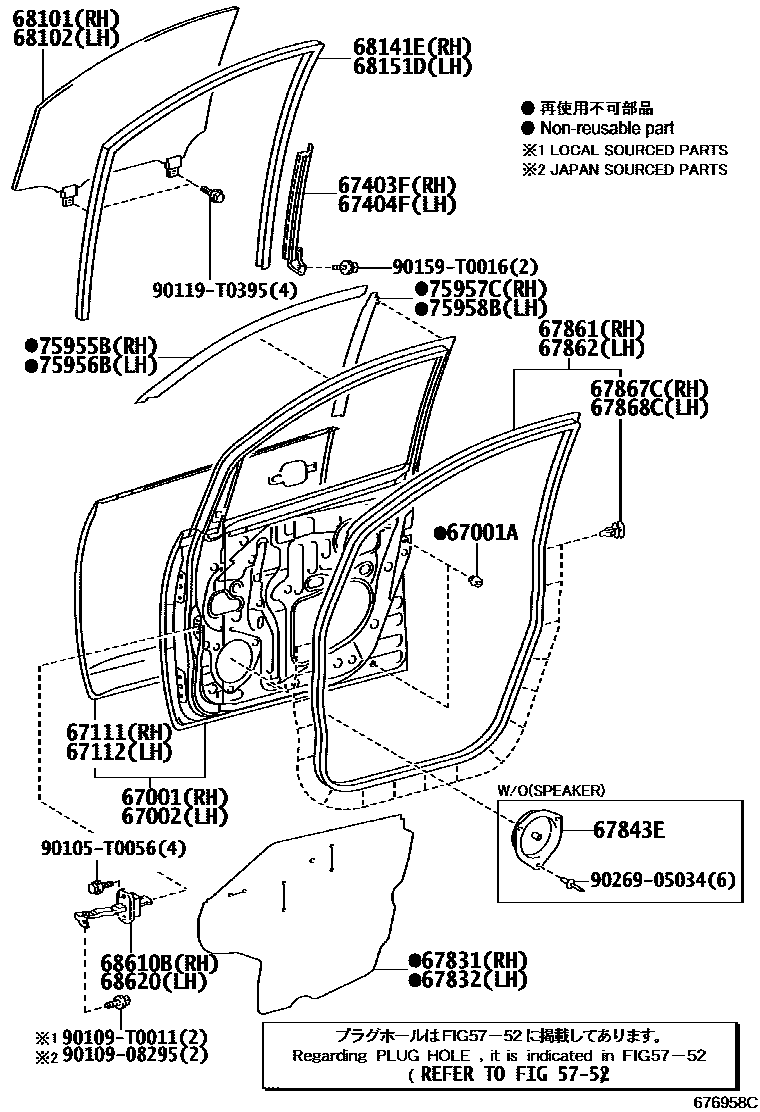

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0K030iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main67001-0K040iTGN4#..GCC,SA,TH201107-201510

main67001-0K121iKUN40,TGN40..IND201201-201603

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iKUN40,TGN4#201107-201611

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0K030iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main67002-0K040iTGN4#..GCC,SA,TH201107-201510

main67002-0K121iKUN40,TGN40..IND201201-201603

67111PANEL, FRONT DOOR, OUTER RH

main67111-0K030iKUN40,TGN4#201107-201611

67112PANEL, FRONT DOOR, OUTER LH

main67112-0K030iKUN40,TGN4#201107-201611

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K020iKUN40,TGN4#201107-201611

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K020iKUN40,TGN4#201107-201611

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K050iKUN40,TGN4#201107-201611

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-0K050iKUN40,TGN4#201107-201611

67843ECOVER, FRONT DOOR SERVICE HOLE, NO.2

main67843-60030×2iKUN40,TGN40..LO201107-201510

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main67861-0K040iKUN40,TGN40..IND201201-201603

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main67862-0K040iKUN40,TGN40..IND201201-201603

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0B010×17iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main67867-12150×17iKUN40,TGN40..IND201201-201603

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iKUN40,TGN40..IND201201-201603

main67868-0B010×17iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K050iKUN40,TGN4#201107-201112

*TT,T=3.5,GREEN

main68101-0K051iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201112-201611

*TT,T=3.5,GREEN

main68101-0K061iKUN40..STD..IND201201-201603

*TT,T=3.5,CLEAR

main68101-0K091iKUN40,TGN40..(DLX,GL)..IND201201-201603

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K050iKUN40,TGN4#201107-201112

*TT,T=3.5,GREEN

main68102-0K051iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201112-201611

*TT,T=3.5,GREEN

main68102-0K061iKUN40..STD..IND201201-201603

*TT,T=3.5,CLEAR

main68102-0K091iKUN40,TGN40..(DLX,GL)..IND201201-201603

*TEM,T=3.5,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-0K030iKUN40,TGN40..MA,PHL201110-201603

main68141-0K040iKUN40,TGN4#..GCC,IDN,IND,SA,TH,VN201107-201611

68151DRUN, FRONT DOOR GLASS, LH

main68151-0K030iKUN40,TGN40..MA,PHL201110-201603

main68151-0K040iKUN40,TGN4#..GCC,IDN,IND,SA,TH,VN201107-201611

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201305

main68610-0K041iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201305-201611

main68610-0K050iKUN40,TGN40..IND201201-201209

main68610-0K051iKUN40,TGN40..IND201209-201603

68620CHECK ASSY, FRONT DOOR, LH

main68620-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201305

main68620-0K041iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201305-201611

main68620-0K050iKUN40,TGN40..IND201201-201209

main68620-0K051iKUN40,TGN40..IND201209-201603

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-0K010iKUN40..GL;KUN40..DLX..IDN;TGN40..GL..(IND,MA,PHL);TGN4#..(DLX,GL)..(GCC,IDN,SA,TH,VN)201107-201611

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-0K010iKUN40..GL;KUN40..DLX..IDN;TGN40..GL..(IND,MA,PHL);TGN4#..(DLX,GL)..(GCC,IDN,SA,TH,VN)201107-201611

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-0K010iKUN40..GL;KUN40..DLX..IDN;TGN40..GL..(IND,MA,PHL);TGN4#..(DLX,GL)..(GCC,IDN,SA,TH,VN)201107-201611

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-0K010iKUN40..GL;KUN40..DLX..IDN;TGN40..GL..(IND,MA,PHL);TGN4#..(DLX,GL)..(GCC,IDN,SA,TH,VN)201107-201611

90105T0056

main90105-T0056

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0395

main90119-T0395

90159T0016

main90159-T0016

9026905034

main90269-05034

31 parts on this diagram · 2 diagrams in section
