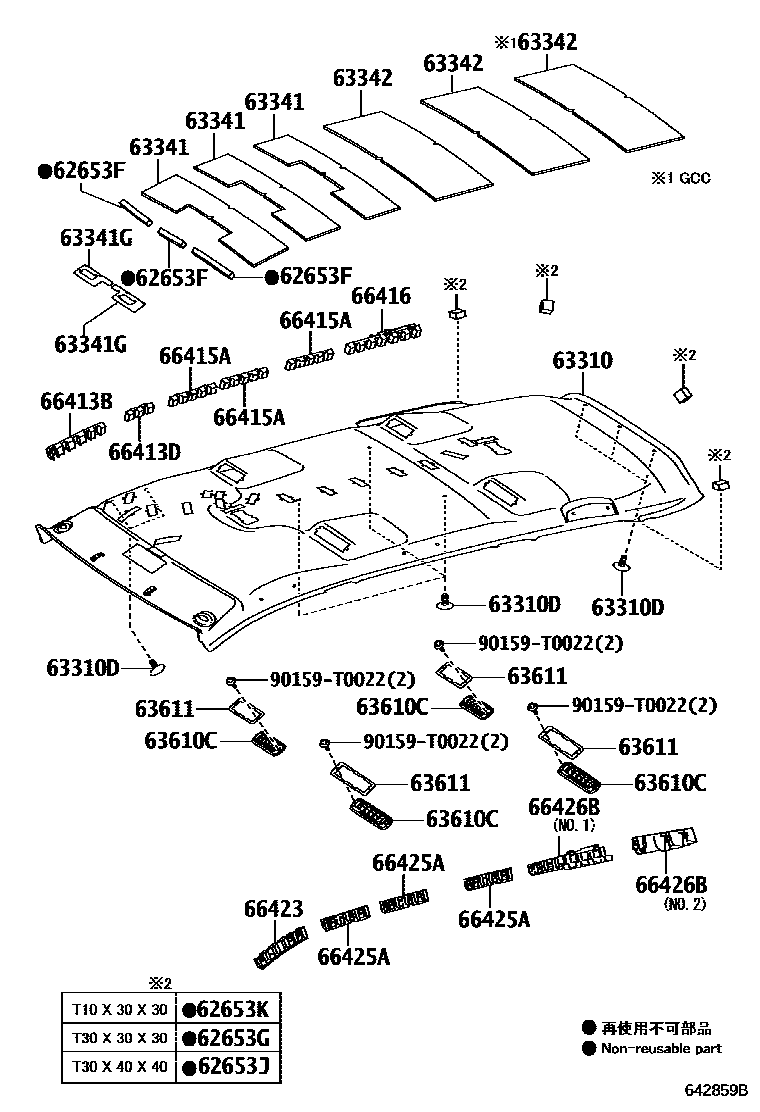

ROOF HEADLINING & SILENCER PAD
62653FPACKING (FOR ROOF HEADLINING)
T30X30X350
T30X30X110
AIR CONDITIONER-AIR CONDITIONER DUAL,T30X30X350; T30X30X350
AIR CONDITIONER-AIR CONDITIONER DUAL,T30X30X110; T30X30X110
62653GPACKING,(FOR ROOF HEADLINING)
T30X30X30
AIR CONDITIONER-AIR CONDITIONER DUAL,T30X30X30; T30X30X30
62653JPACKING
T30X40X40
T30X40X40
62653KPACKING
T10X30X30
T10X30X30
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM1#
main63310-0K120-E1supersedes 63310-0K420-E0iKUN40..DLX..PHL;TGN40..RHD..STD;TGN40..DLX..(IDN,PHL);KUN40,TGN41..(DLX,STD)..(GCC,IDN)201107-201510
GREGE,TRIM4#
LT. GRAY,TRIM1#
GREGE,TRIM4#
LT. GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#
main63310-0K630-E0supersedes 63310-0K151-E1iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND201201-201312
AIR CONDITIONER-AIR CONDITIONER DUAL,GREGE,TRIM4#; GREGE,TRIM4#
AIR CONDITIONER-AIR CONDITIONER DUAL,GREGE,TRIM4#; GREGE,TRIM4#
GREGE,TRIM4#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),GREGE,TRIM4#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),GREGE,TRIM4#
AIR CONDITIONER-AIR CONDITIONER DUAL,GREGE,TRIM4#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&AIR CONDITIONER-AIR CONDITIONER DUAL,GREGE,TRIM4#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0×8iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611
LT.GRAY,TRIM1#
main90467-T0004-E0×8iKUN40..GL;KUN40..(DLX,STD)..IDN;KUN40,TGN40..LHD..DLX;TGN40..GL..(IND,PHL,VN);TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611
GREGE,TRIM4#
63341PAD, ROOF SILENCER, NO.1
63341GPAD, ROOF SILENCER
63342PAD, ROOF SILENCER, NO.2
63610CREGISTER ASSY, AIR OUTLET, NO.1
main63610-0K010-B0×4iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611
LT.GRAY,TRIM1#
main63610-0K010-E0×4iKUN40..GL;KUN40..(DLX,STD)..IDN;KUN40,TGN40..LHD..DLX;TGN40..GL..(IND,PHL,VN);TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611
GREGE,TRIM4#
63611BRACKET, REAR COOLER, NO.1
AIR CONDITIONER-AIR CONDITIONER DUAL
66413BSPACER, SIDE RAIL, FRONT RH
66413DSPACER, SIDE RAIL
66415ASPACER, SIDE RAIL, REAR NO.2 RH
66416SPACER, SIDE RAIL, REAR NO.3 RH
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
66423SPACER, SIDE RAIL, FRONT LH
66425ASPACER, SIDE RAIL, REAR NO.2 LH
66426BSPACER, SIDE RAIL, REAR NO.3 LH
main66426-0K080supersedes 66426-0K100iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
90159T0022
main90159-T0022
19 parts on this diagram · 3 diagrams in section
