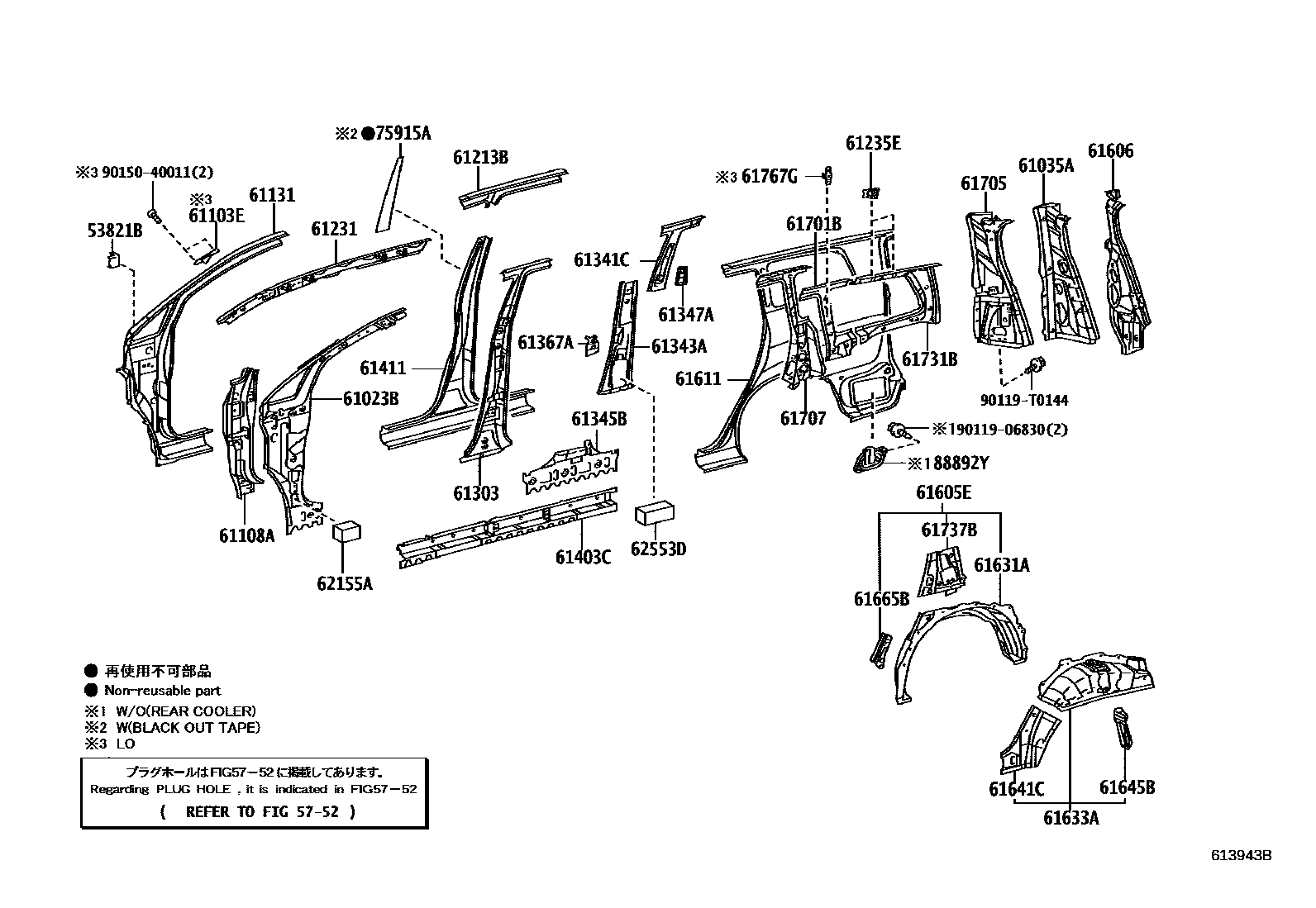

SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE 0003 1RH SIDE 0004 1LH SIDE

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iKUN40,TGN4#201107-201611

5752HOLE PLUG

→ Go to FIG 57-52

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K050iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH201107-201603

main61023-0K070iTGN40..VN201202-201611

main61023-0K160iKUN40,TGN40..IND201201-201603

61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH

main61035-0K010iKUN40,TGN4#201107-201611

61103EORNAMENT, FRONT PILLAR, RH

main86392-0K010iKUN40,TGN40..LO;KUN40..STD..IND201107-201603

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61108-0K040iKUN40,TGN40..IND201201-201603

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K050iTGN40..MA;TGN40..LHD..STD;TGN40..DLX..PHL;KUN40..(DLX,STD)..PHL201110-201611

main61131-0K060iKUN40..DLX..HDCR..IDN; TGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201107-201510

BRUNEI SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN

main61131-0K070iKUN40..STD..IND201201-201603

main61131-0K100iTGN41;TGN40..DLX..(TH,VN);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201107-201611

main61131-0K120iKUN40,TGN40..(DLX,GL)..IND201201-201603

main61131-0K110iKUN40,TGN40..DLX..IDN201107-201510

SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61213-0K030iKUN40,TGN40..IND201201-201603

61231RAIL, ROOF SIDE, INNER RH

main61210-0K030iKUN40,TGN4#201107-201611

61235EBRACKET, ASSIST GRIP, NO.1

main61235-0K030×2iKUN40,TGN4#201107-201611

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61303-0K050iKUN40,TGN40..IND201201-201603

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K020iKUN40,TGN4#201107-201611

61343APILLAR, CENTER BODY, INNER RH

main61343-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61343-0K050iKUN40,TGN40..IND201201-201603

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K040iKUN40,TGN4#..GCC,PHL,SA,TH,VN201107-201611

main61345-0K050iKUN40,TGN40..IDN,IND,MA201107-201603

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-0K030iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K030iKUN40,TGN4#201107-201611

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K020iKUN40,TGN4#..GCC,PHL,SA,TH,VN201107-201611

main61403-0K030iKUN40,TGN40..IDN,MA201107-201601

main61403-0K040iKUN40,TGN40..IND201201-201603

61411PANEL, ROCKER, OUTER RH

main61411-0K020iTGN40..LO,STD;TGN40..GL..MA;TGN40..DLX..(IDN,MA,PHL);KUN40..(DLX,LO,STD)..(IDN,PHL)201107-201611

main61411-0K030iKUN40..STD..IND201201-201603

main61411-0K050iTGN41;TGN40..DLX..(TH,VN);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201107-201611

main61411-0K060iKUN40,TGN40..(DLX,GL)..IND201201-201603

61605EPANEL, QUARTER, RH

main61605-0K020iTGN4#..GCC,SA,TH201107-201510

main61605-0K060iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61705-0K040iKUN40,TGN40..IND201201-201603

61611PANEL, QUARTER, RH

main61611-0K040iTGN40..LO,STD;TGN40..GL..MA;TGN40..DLX..(IDN,MA,PHL);KUN40..(DLX,LO,STD)..(IDN,PHL)201107-201611

main61611-0K050iKUN40..STD..IND201201-201603

main61611-0K080iTGN41;TGN40..DLX..(TH,VN);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201107-201611

main61611-0K090iKUN40,TGN40..(DLX,GL)..IND201201-201603

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0K010iTGN4#..GCC,SA,TH201107-201510

main61631-0K040iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0K010iTGN4#..GCC,SA,TH201107-201510

main61607-0K050iKUN40,TGN40..IND201201-201603

main61607-0K060iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0K010iTGN4#..GCC,SA,TH201107-201510

main61641-0K040iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61645-0K020iKUN40,TGN40..IND201201-201603

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-0K020iKUN40,TGN4#201107-201611

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61701-0K040iKUN40,TGN40..IND201201-201603

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61705-0K090iKUN40,TGN40..IND201201-201603

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61707-0K010iKUN40,TGN4#201107-201611

61731BPANEL, ROOF SIDE, INNER RH

main61731-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main61731-0K060iKUN40,TGN40..IND201201-201603

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61503-0K030iKUN40,TGN4#201107-201611

61767GRETAINER, SEAT BELT ANCHOR, NO.2

main61767-0K020iKUN40,TGN40..IND201201-201603

main61767-44010iKUN40,TGN40..LO201107-201510

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K020×2iKUN40,TGN4#..GCC,IDN,IND,MA,SA,TH,VN201107-201611

main62155-0K060×2iKUN40,TGN40..PHL201202-201603

62553DPAD, PILLAR, NO.3

main62557-0K020×2iKUN40,TGN4#..GCC,IDN,IND,MA,SA,TH,VN201107-201611

main62557-0K070×2iKUN40,TGN40..PHL201202-201603

75915ATAPE, BLACK OUT CENTER PILLAR, RH

main75915-0K010iKUN40..GL;KUN40..DLX..IDN;TGN40..GL..(IND,MA,PHL);TGN4#..(DLX,GL)..(GCC,IDN,SA,TH,VN)201107-201611

88892YCOVER, COOLER, NO.3

main88891-0K040iKUN40,TGN40..LO201107-201510

main88891-0K050iKUN40,TGN40..(DLX,STD)..IND201201-201603

9011906830

main90119-06830

90119T0144

main90119-T0144

9015040011

main90150-40011

39 parts on this diagram · 4 diagrams in section
