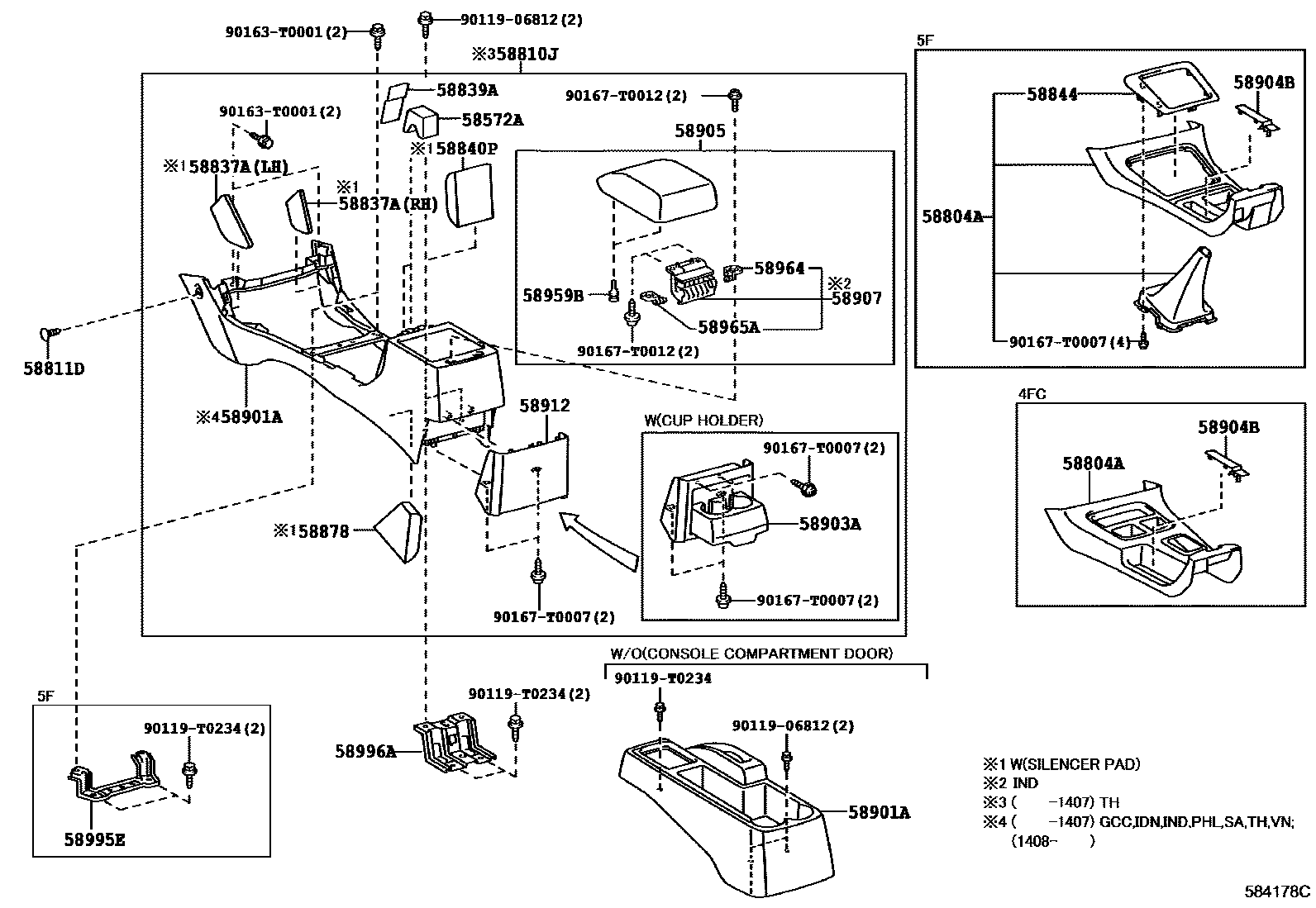

CONSOLE BOX & BRACKET

0001 1 0002 1

58572ACUSHION, CONSOLE BOX

main58872-0K010iKUN40..GL;TGN40..GL..IND;KUN40..(DLX,STD)..(IDN,PHL);TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0K100-C0iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main58804-0K100-E0iKUN40..DLX..IND201201-201501

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER),GREGE,TRIM4#

main58804-0K290-B1iKUN40,TGN40..LHD..5F..(DLX,STD)201202-201611

GRAY,TRIM1#

sub58804-0K330

main58804-0K290-E0iKUN40,TGN4#..LHD..5F..(DLX,GL)201107-201611

GREGE,TRIM4#

sub58804-0K330

main58804-0K350-E0iTGN40..RHD..5F..(GL,STD);TGN40..5F..DLX..(IDN,MA);KUN40,TGN41..5F..(DLX,GL,STD)..(IDN,SA)201107-201601

GREGE,TRIM4#

main58821-0K041-E0iKUN40,TGN40..RHD..4FC201107-201601

GREGE,TRIM4#

main58821-0K081-B1iKUN40,TGN40..4FC..DLX..PHL201202-201603

MD.GRAY,TRIM1#

main58821-0K081-E0iKUN40,TGN4#..LHD..4FC201107-201611

GREGE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-0K160-E0iTGN40..5F..(MA,TH)201107-201408

GREGE,TRIM4#

main58810-0K290-E0iTGN40..4FC..DLX..(MA,TH)201107-201408

GREGE,TRIM4#

main58810-0K300-E0iTGN40..GL..(MA,TH)201107-201408

GREGE,TRIM4#

main58810-0K640-E0iTGN40..5F..MA201408-201601

GREGE,TRIM4#

main58810-0K650-E0iTGN40..4FC..DLX..MA201408-201601

GREGE,TRIM4#

main58810-0K660-E0iTGN40..GL..MA201408-201601

GREGE,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-T0002-B1×2iTGN40..5F..DLX..VN201202-201403

MD.GRAY,TRIM1#

main90467-T0002-E0×2iKUN40,TGN40..GL..IND201107-201212

GREGE,TRIM4#

main90467-T0025-C0×2iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main90467-T0025-E0×2iKUN40,TGN40..GL..IND201301-201501

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER),GREGE,TRIM4#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-0K010iKUN40..DLX..IND201201-201603

RH

main58837-0K020iKUN40..DLX..IND201201-201603

LH

58839ACOVER, CONSOLE BOX HOLE

main58839-0K010-B1iTGN40..5F..DLX..VN201202-201403

MD.GRAY,TRIM1#

main58839-0K010-C0iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main58839-0K010-E0iKUN40..GL..IND201107-201501

GREGE,TRIM4#

58840PPAD, CONSOLE BOX SILENCER, NO.3

main58859-0K010iKUN40..DLX..IND201201-201304

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

main58859-0K020iKUN40..DLX..IND201304-201603

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

58844BEZEL, CONSOLE BOX

main58844-0K020-B1iKUN40,TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main58844-0K020-E0iKUN40,TGN4#..LHD..5F..(DLX,GL)201107-201611

GREGE,TRIM4#

58878PAD, CONSOLE BOX SILENCER, NO.4

main58878-0K010iKUN40..DLX..IND201201-201304

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

main58878-0K020iKUN40..DLX..IND201304-201603

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-0K010-B1iTGN40..LHD..STD;TGN40..5F..DLX..PHL;KUN40..(DLX,STD)..DCR..PHL201202-201406

MD.GRAY,TRIM1#

main58911-0K010-C0supersedes 58901-0K010-C0iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main58911-0K010-E0supersedes 58901-0K010-E0iKUN40,TGN4#..LHD..5F..(DLX,GL)201107-201406

GREGE,TRIM4#

main58911-0K020-E0iTGN40..4FC..TH201408-201510

GREGE,TRIM4#

main58911-0K050-B1iKUN40,TGN40..4FC..DLX..PHL201202-201406

MD.GRAY,TRIM1#

main58911-0K050-E0iKUN40,TGN4#..LHD..4FC201107-201406

GREGE,TRIM4#

main58911-0K130-B0iTGN40..LHD..STD;TGN40..5F..DLX..PHL;KUN40..(DLX,STD)..DCR..PHL201407-201611

MD.GRAY,TRIM1#

main58911-0K130-E1iKUN40,TGN40..5F..GL..PHL;TGN4#..5F..(DLX,GL)..(GCC,VN)201407-201611

GREGE,TRIM4#

main58911-0K160-B0iKUN40,TGN40..4FC..DLX..PHL201407-201603

MD.GRAY,TRIM1#

main58911-0K160-E1iTGN4#..4FC..(GCC,VN);KUN40,TGN40..4FC..GL..PHL201407-201611

GREGE,TRIM4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0K010-B1iTGN40..5F..DLX..VN201202-201403

MD.GRAY,TRIM1#

main58903-0K010-C0iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main58903-0K010-E0iKUN40..GL..IND201107-201501

GREGE,TRIM4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0K010-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main58904-0K010-C0iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main58904-0K010-E0iTGN40..LHD..DLX;KUN40..(DLX,GL)..PHL;TGN40..GL..(IND,PHL,VN);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0K010-C0iKUN40..DLX..IND201501-201603

BLACK,TRIM4#

main58905-0K010-E0iKUN40,TGN40..DLX..IND201201-201501

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER),GREGE,TRIM4#

main58905-0K030-B1iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40..(DLX,STD)..PHL201202-201611

MD.GRAY,TRIM1#

main58905-0K030-E0iTGN40..(DLX,GL)..VN;KUN40,TGN40..GL..PHL;KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12050iKUN40,TGN40..DLX..IND201201-201603

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

58912BOX, REAR CONSOLE, NO.2

main58912-0K020-B1iTGN40..LHD..STD;TGN40..DLX..PHL;KUN40..(DLX,STD)..PHL201202-201611

MD.GRAY,TRIM1#

main58912-0K020-E0iKUN40,TGN40..DLX..PHL201107-201407

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-04079×2iKUN40,TGN40..GL..IND201201-201603

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

main90541-T0008×2iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-0K020iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

main58964-20030iKUN40,TGN40..DLX..IND201201-201603

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-0K040iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

main58965-20040iKUN40,TGN40..GL..IND201201-201603

CONSOLE BOX-WITH(DOOR & REAR CUP HOLDER)

58995EBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0K010iTGN41..5F;KUN40..GL..DCR;TGN40..5F..(GL,STD);TGN40..5F..DLX..(IDN,MA,PHL,VN);KUN40..(DLX,STD)..DCR..(IDN,PHL)201107-201611

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0K010iKUN40..DLX,GL;TGN4#..DLX,GL,STD;KUN40..STD..(IDN,PHL)201107-201611

9011906812

main90119-06812

90119T0234

main90119-T0234

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90167T0012

main90167-T0012

25 parts on this diagram · 2 diagrams in section
