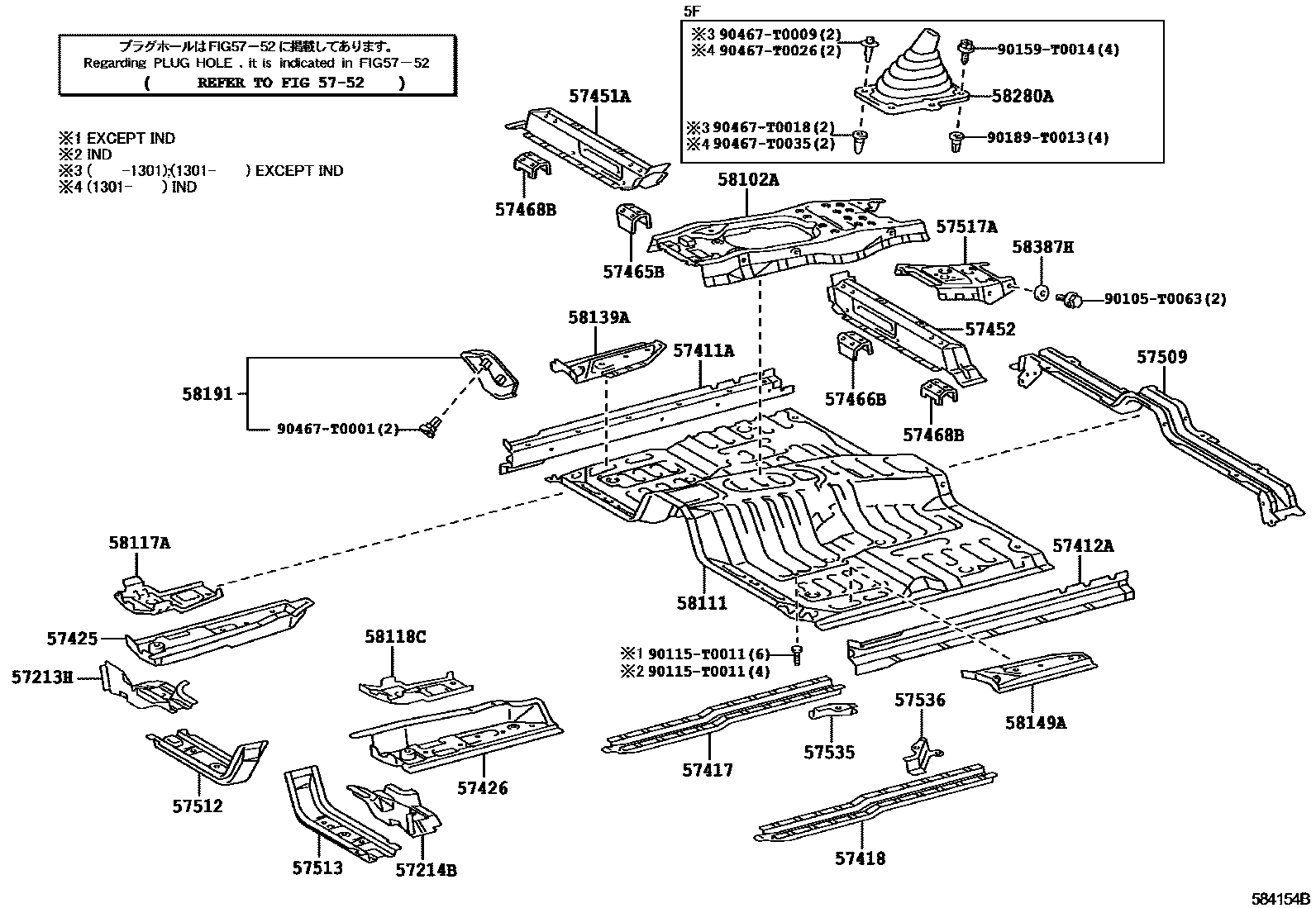

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-0K010iKUN40,TGN4#201107-201611

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-0K010iKUN40,TGN4#201107-201611

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-0K020iKUN40,TGN4#201107-201611

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-0K020iKUN40,TGN4#201107-201611

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iKUN40,TGN4#201107-201611

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57418-0K030iKUN40,TGN40..IND201401-201603

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-0K010iKUN40,TGN4#201107-201611

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-0K010iKUN40,TGN4#201107-201611

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-0K010iKUN40..IND201107-201501

main57451-0K030iKUN40..IND201502-201603

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-0K020iKUN40,TGN4#201107-201611

57465BBRACKET, FRONT SEAT, INNER

main57465-0K010iKUN40,TGN4#201107-201611

57466BBRACKET, FRONT SEAT, INSIDE LH

main57466-0K010iKUN40,TGN4#201107-201611

57468BBRACKET, FRONT SEAT, REAR

main57468-0K010×2iKUN40,TGN4#201107-201611

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-0K020iKUN40,TGN40..MA,PHL,VN201107-201611

main57509-0K060iKUN40,TGN4#..GCC,IDN,SA,TH201502-201510

main57509-0K070iKUN40..IND201510-201603

main57509-0K080iKUN40,TGN40..IND201201-201510

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K010iKUN40,TGN40..MA,PHL,VN201107-201206

main57512-0K030iKUN40,TGN40..MA,PHL,VN201206-201611

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iKUN40,TGN4#201107-201611

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57516-0K010iKUN40,TGN4#..LHD..4FC201107-201611

main57516-0K020iKUN40,TGN4#..LHD..5F201107-201611

main57517-0K010iKUN40,TGN40..RHD..4FC201107-201601

main57517-0K020iKUN40,TGN4#..RHD..5F201107-201603

5752HOLE PLUG

→ Go to FIG 57-52

57535BRACE, FRONT FLOOR, RH

main57535-0K010iKUN40,TGN4#..GCC,IDN,SA,TH201107-201501

main57535-KK010iKUN40,TGN4#..GCC,IDN,SA,TH201502-201611

57536BRACE, FRONT FLOOR, LH

main57536-0K010iKUN40,TGN4#..GCC,IDN,SA,TH201107-201501

main57536-KK010iKUN40,TGN4#..GCC,IDN,SA,TH201502-201611

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0K010iKUN40,TGN4#..4FC201107-201611

main58102-0K020iKUN40,TGN4#..5F..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

main58102-0K040iKUN40,TGN40..IND201201-201603

58111PAN, FRONT FLOOR

main58111-0K010iKUN40,TGN4#..4FC201107-201611

main58111-0K030iKUN40,TGN4#..5F201107-201611

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-0K010iKUN40,TGN4#201107-201611

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-0K010iKUN40,TGN4#201107-201611

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-0K010iKUN40,TGN4#201107-201611

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-0K010iKUN40,TGN4#201107-201611

58191FOOTREST, FRONT FLOOR

main58191-0K010iKUN40,TGN4#..(DLX,GL,STD)..(IDN,MA,SA,TH)201107-201601

58280ABOOT ASSY, SHIFT LEVER

main58280-0K010iTGN40..5F201107-201611

main58280-0K020iTGN41..5F201107-201510

main58280-0K040iKUN40..DCR201107-201603

58387HPLATE, REAR FLOOR

main58387-0K010×2iKUN40,TGN4#201107-201611

90105T0063

main90105-T0063

90115T0011

main90115-T0011

90159T0014

main90159-T0014

90189T0013

main90189-T0013

90467T0001

main90467-T0001

90467T0009

main90467-T0009

90467T0018

main90467-T0018

90467T0026

main90467-T0026

90467T0035

main90467-T0035

38 parts on this diagram · 1 diagram in section
