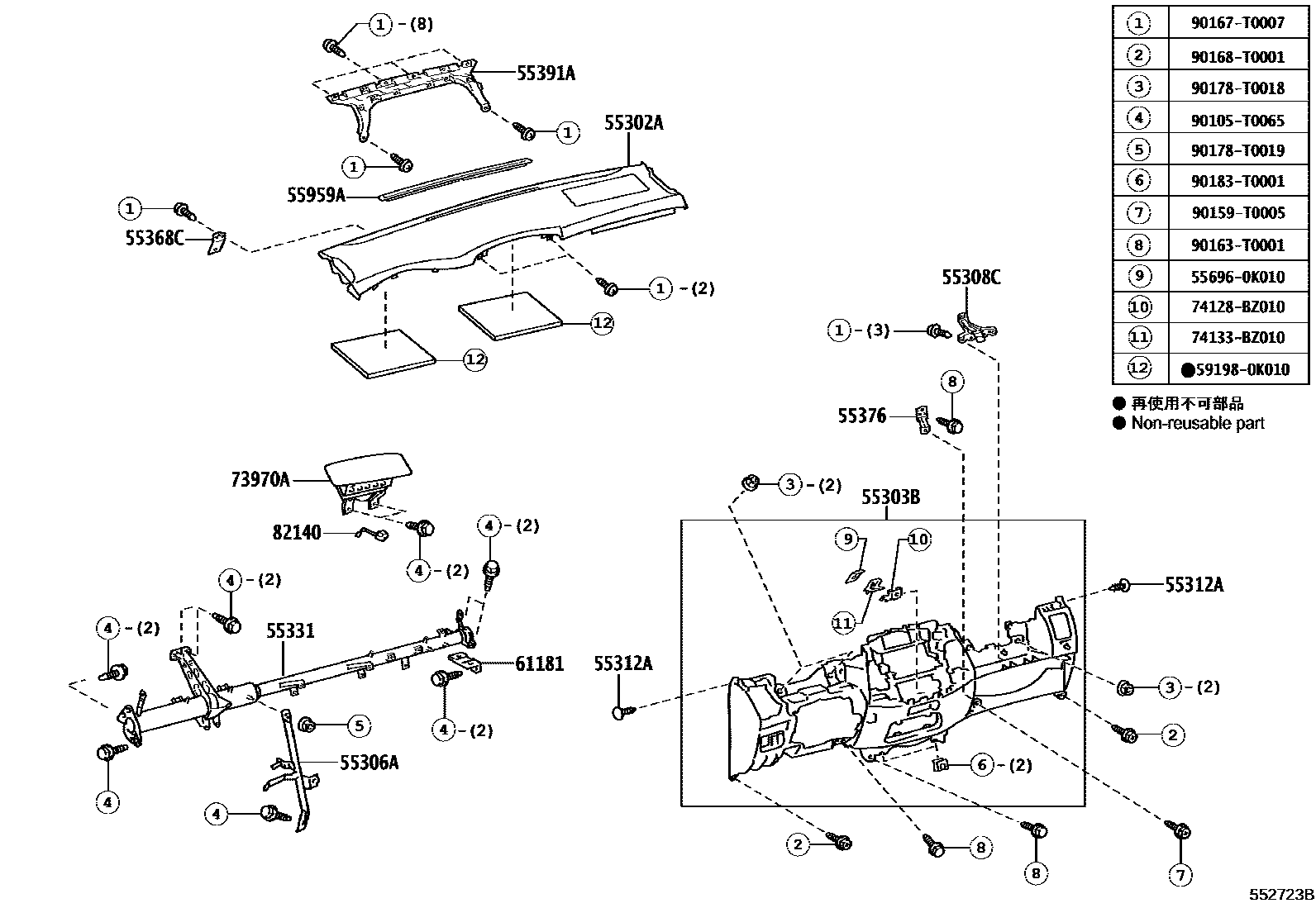

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0K030-E1iTGN40..DLX..MA201107-201207

ASH BROWN,TRIM4#

main55302-0K040-E1iKUN40,TGN40..GL..(IDN,MA,TH)201107-201601

ASH BROWN,TRIM4#

main55302-0K070-E1iKUN40,TGN40..(DLX,STD)..IND201201-201501

ASH BROWN,TRIM4#

main55302-0K080-C0iKUN40..(DLX,STD)..IND201501-201603

BLACK,TRIM4#

main55302-0K080-E1iTGN40..GL..IND201201-201501

ASH BROWN,TRIM4#

main55302-0K110-B0iTGN40..5F..VN201202-201303

DK.GRAY,TRIM1#

main55302-0K120-B0iKUN40,TGN40..(DLX,STD)..PHL201302-201611

DK.GRAY,TRIM1#

main55302-0K120-E0iTGN40..5F..DLX..VN201303-201611

ASH BROWN,TRIM4#

main55302-0K150-E0iKUN40,TGN40..LO201107-201308

ASH BROWN,TRIM4#

main55302-0K160-C0iKUN40..GL..IND201501-201603

BLACK,TRIM4#

main55302-0K160-E0iKUN40..GL..IND201201-201501

ASH BROWN,TRIM4#

main55302-0K230-E0iTGN41..SA201107-201510

ASH BROWN,TRIM4#

main55302-0K110-E0iTGN41..DLX201308-201510

SRS AIR BAG-WITH(DRIVER ONLY),ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0K030-E0iKUN40,TGN40..(DLX,GL,STD)..(IDN,MA,TH)201107-201601

GREGE,TRIM4#

main55303-0K040-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main55303-0K040-E0iKUN40,TGN4#..LHD..(DLX,GL)201107-201611

GREGE,TRIM4#

main55303-0K050-E0iTGN4#..IND,SA201107-201510

GREGE,TRIM4#

main55303-0K050-E1iKUN40..IND201501-201603

ORK,TRIM4#

main55303-0K130-E0iKUN40,TGN40..LO201107-201510

GREGE,TRIM4#

main55303-0K150-E0iTGN41..DLX201308-201510

REAR WINDOW DEFOGGER-WITHOUT,GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0K050iKUN40,TGN4#..RHD201107-201603

main55306-0K060iKUN40,TGN4#..LHD201107-201611

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0K030iKUN40,TGN4#201107-201611

55312ACLIP, INSTRUMENT PANEL

main90467-T0002-B1×2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main90467-T0002-E0×2iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main90467-T0025-E0×2iKUN40,TGN40..IND201301-201501

GREGE,TRIM4#

main90467-T0025-E3×2iKUN40..IND201501-201603

ORK,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0K090iTGN40..5F..MA201107-201207

main55330-0K100iKUN40,TGN40..5F..(DLX,LO,STD)..(IDN,TH)201308-201601

main55330-0K110iKUN40,TGN40..4FC..(DLX,STD)..(IDN,TH)201107-201308

main55330-0K120iKUN40,TGN40..RHD..4FC..GL201107-201601

main55330-0K130iTGN40..5F..VN201202-201303

main55330-0K140iKUN40,TGN40..5F..(DLX,STD)..PHL201302-201611

main55330-0K150iKUN40,TGN40..4FC..DLX..PHL201202-201302

main55330-0K160iTGN4#..4FC..(GCC,VN);KUN40,TGN40..4FC..GL..PHL201107-201611

main55330-0K170iKUN40,TGN40..(DLX,STD)..IND201201-201501

main55330-0K180iKUN40..(DLX,STD)..IND201501-201603

55368CBRACKET, METER MOUNTING

main55368-0K020iKUN40,TGN4#201107-201611

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0K010iKUN40,TGN4#201107-201611

55391APANEL, INSTRUMENT PANEL REINF, INNER NO.1

main55391-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201404

main55391-0K030iKUN40,TGN4#..GCC,IDN,SA,TH201404-201510

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-0K010-B0iKUN40,TGN40..(DLX,STD)..PHL201202-201603

DK.GRAY,TRIM1#

main55959-0K010-E1iKUN40,TGN40..DLX..(MA,PHL)201107-201601

ASH BROWN,TRIM4#

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-0K030iKUN40,TGN4#..LHD201107-201611

main61182-0K010iKUN40,TGN4#..RHD201107-201603

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0K031-E1iTGN40..DLX..MA201207-201601

ASH BROWN,TRIM4#

main73970-0K041-B0iKUN40,TGN40..(DLX,STD)..PHL201302-201611

DK.GRAY,TRIM1#

main73970-0K041-E1iTGN41..GCC;TGN40..4FC..DLX..VN;KUN40,TGN40..LHD..GL201107-201611

ASH BROWN,TRIM4#

main73970-0K060-C0iKUN40..IND201501-201603

BLACK,TRIM4#

main73970-0K060-E1iKUN40,TGN40..GL..IND201201-201501

ASH BROWN,TRIM4#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0K010iTGN40..DLX..MA201207-201611

556960K010

main55696-0K010

591980K010SEAL, NOISE SHUTTER

main59198-0K010

74128BZ010SUPPORT, FRONT ASH RECEPTACLE RETAINER

main74128-BZ010

74133BZ010SEAL, FRONT ASH RECEPTACLE

main74133-BZ010

90105T0065

main90105-T0065

90159T0005

main90159-T0005

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90168T0001

main90168-T0001

90178T0018

main90178-T0018

90178T0019

main90178-T0019

90183T0001

main90183-T0001

25 parts on this diagram · 8 diagrams in section
