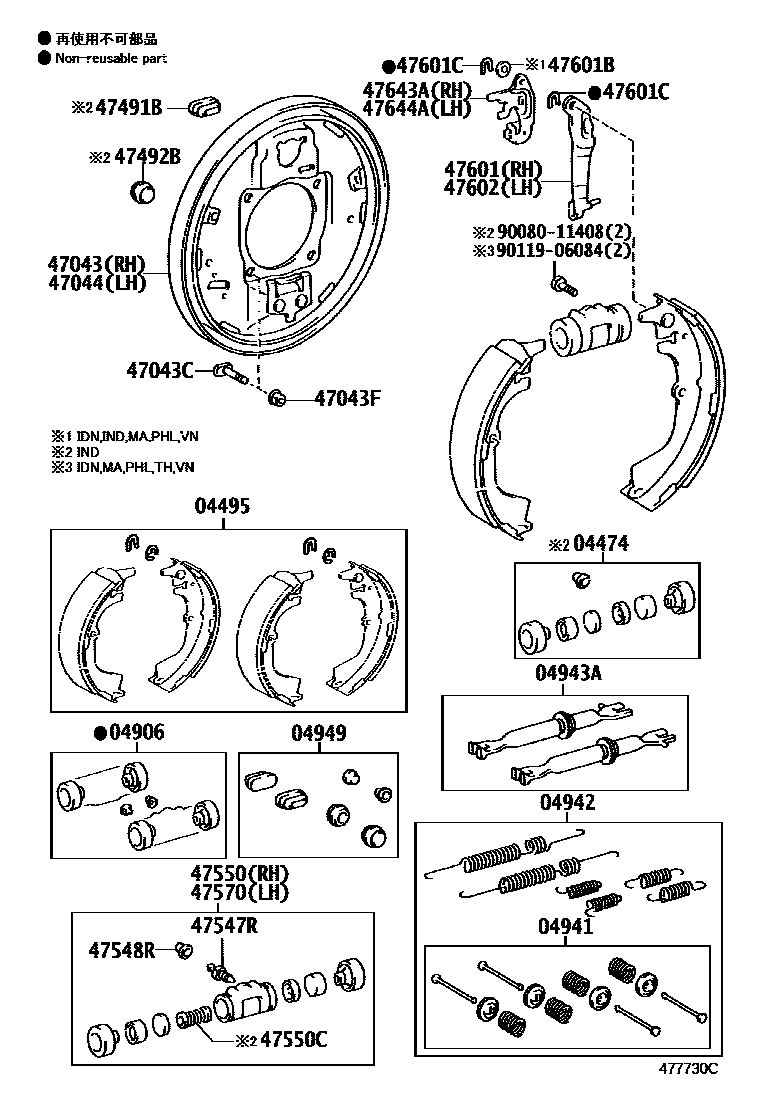

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04495SHOE KIT, REAR BRAKE
MARK NSA LN512
MARK NSA D9033
MARK RANE D9033,TYPE A:REFER ILLUST.
04906CUP KIT, REAR WHEEL CYLINDER
TYPE B:REFER ILLUST.
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
TYPE A:REFER ILLUST.
04942SPRING KIT, REAR BRAKE
04943ASTRUT KIT, REAR BRAKE
TYPE A:REFER ILLUST.
04949PLUG KIT, REAR BRAKE
TYPE B:REFER ILLUST.
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
*10-1.25PX46-21
*10-1.25PX37-18.5
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
47491BPLUG, HOLE(FOR REAR BRAKE)
TYPE A:REFER ILLUST.
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
TYPE A:REFER ILLUST.
47601BSHIM, REAR PARKING BRAKE SHOE LEVER
T=0.2
T=0.3
T=0.4
T=0.5
T=0.6
T=0.9
T=0.2
T=0.3,TYPE A:REFER ILLUST.
T=0.4,TYPE A:REFER ILLUST.
T=0.5,TYPE A:REFER ILLUST.
T=0.6,TYPE A:REFER ILLUST.
T=0.9,TYPE A:REFER ILLUST.
47601CWASHER, C(FOR REAR BRAKE)
T=1.2,TYPE A:REFER ILLUST.
T=1.6,TYPE A:REFER ILLUST.
T=1.2
T=1.6
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
TYPE B:REFER ILLUST.
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
TYPE B:REFER ILLUST.
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
TYPE B:REFER ILLUST.
9008011408
main90080-11408
9011906084
main90119-06084
26 parts on this diagram · 3 diagrams in section
