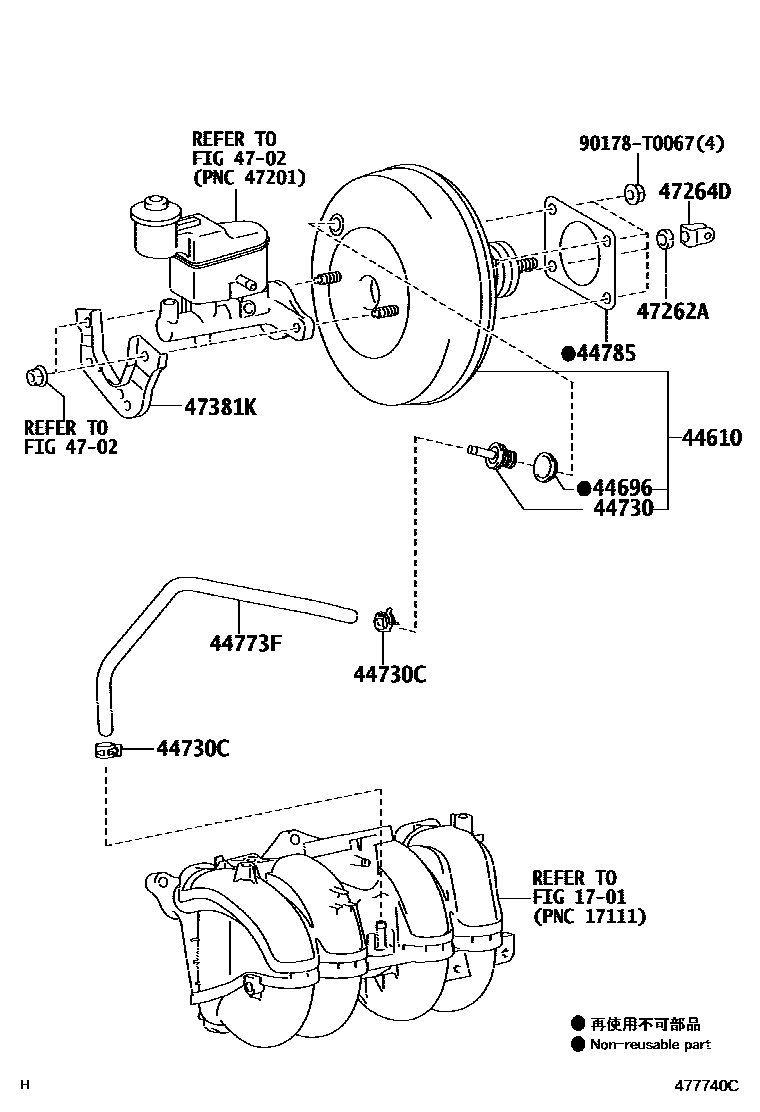

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-09300iKUN40..IND201201-201312

main44610-09301iKUN40..IND201312-201603

main44610-09320iTGN40..IND201201-201312

main44610-09321iTGN40..IND201312-201501

main44610-0K110iTGN40..5F..MA201107-201601

main44610-0K120iKUN40..IDN201107-201510

main44610-0K220iTGN4#..LHD201107-201611

main44610-0K230iKUN40..PHL201202-201603

44696GROMMET, CHECK VALVE

main90080-48050iTGN40..5F..MA201107-201611

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iTGN40..5F..MA201107-201611

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019iTGN40..RHD;KUN40,TGN41..PHL,SA201107-201611

44773FHOSE, UNION TO CHECK VALVE

main44773-0K010iTGN4#..LHD201107-201611

44785GASKET, BRAKE BOOSTER

main44785-17010iTGN40..MA201107-201611

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iKUN40,TGN40..IND201201-201603

main90016-AC101iTGN40..5F..MA201107-201611

(L)

main94120-41000iTGN40..5F..MA201107-201611

(J)

main94120-41000iKUN40..IDN;TGN40..RHD..4FC201107-201601

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0B010iKUN40,TGN40..IND201201-201603

main47264-0K010iTGN40..5F..MA201107-201611

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09030iKUN40,TGN40..IND201201-201603

main47381-0K010iTGN40..5F..MA201107-201611

90178T0067

main90178-T0067

12 parts on this diagram · 4 diagrams in section
