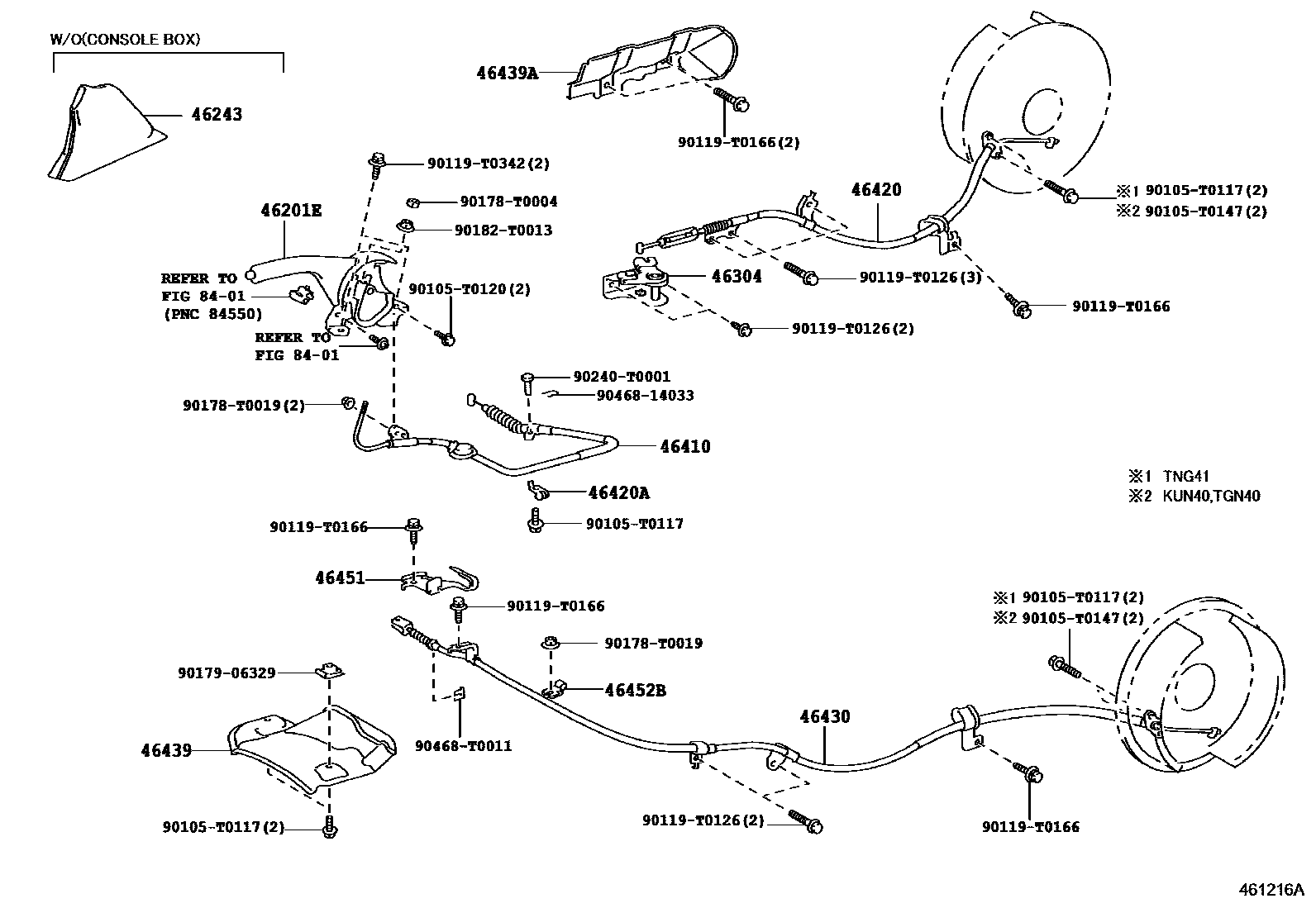

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K020-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main46201-0K020-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main46201-0K050-C0iKUN40..IND201501-201603

BLACK,TRIM4#

main46201-0K050-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

46243COVER, PARKING BRAKE LEVER

main46243-0K010-C0iKUN40..STD..IND201308-201510

BLACK,TRIM42

main46243-0K010-C0iKUN40..STD..IND201510-201603

BLACK,TRIM4#

main46243-0K010-E0iKUN40..STD..IND201308-201510

GREGE,TRIM41

main46243-0K010-E0iKUN40..STD..IND201107-201510

GREGE,TRIM4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K010iKUN40,TGN4#..GCC,IDN,IND,PHL,SA,TH,VN201107-201611

main46304-0K030iTGN40..MA201110-201601

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main46410-0K030iKUN40,TGN40..IND201201-201603

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K061iTGN41201107-201510

main46420-0K070iKUN40..IND201201-201603

*303

main46420-0K070iKUN40..IDN,PHL201107-201603

main46420-0K080iKUN40..IND201201-201603

*306

main46420-0K110iTGN40..IDN,MA,PHL,TH,VN201107-201611

main46420-0K120iTGN40..IND201201-201501

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iKUN40,TGN4#201107-201611

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K060iTGN41201107-201510

main46430-0K070iKUN40,TGN40..IDN,MA,PHL,TH,VN201107-201611

main46430-0K070iKUN40..IND201201-201603

*303

main46430-0K080iTGN40..IND201201-201501

main46430-0K080iKUN40..IND201201-201603

*306

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iKUN40,TGN40..IND,MA,PHL,VN201110-201611

main46439-0K030iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K020iKUN40,TGN40..IND,MA,PHL,VN201204-201611

*299

main46439-0K020iKUN40,TGN40..IND,MA,PHL,VN201110-201204

main46439-0K040iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

main46439-0K040iKUN40,TGN40..IND,MA,PHL,VN201204-201611

*303

46451BRACKET, CABLE SUPPORT

main46451-0K040iKUN40,TGN4#201107-201611

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iKUN40,TGN4#201107-201611

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90105T0147

main90105-T0147

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

25 parts on this diagram · 1 diagram in section
