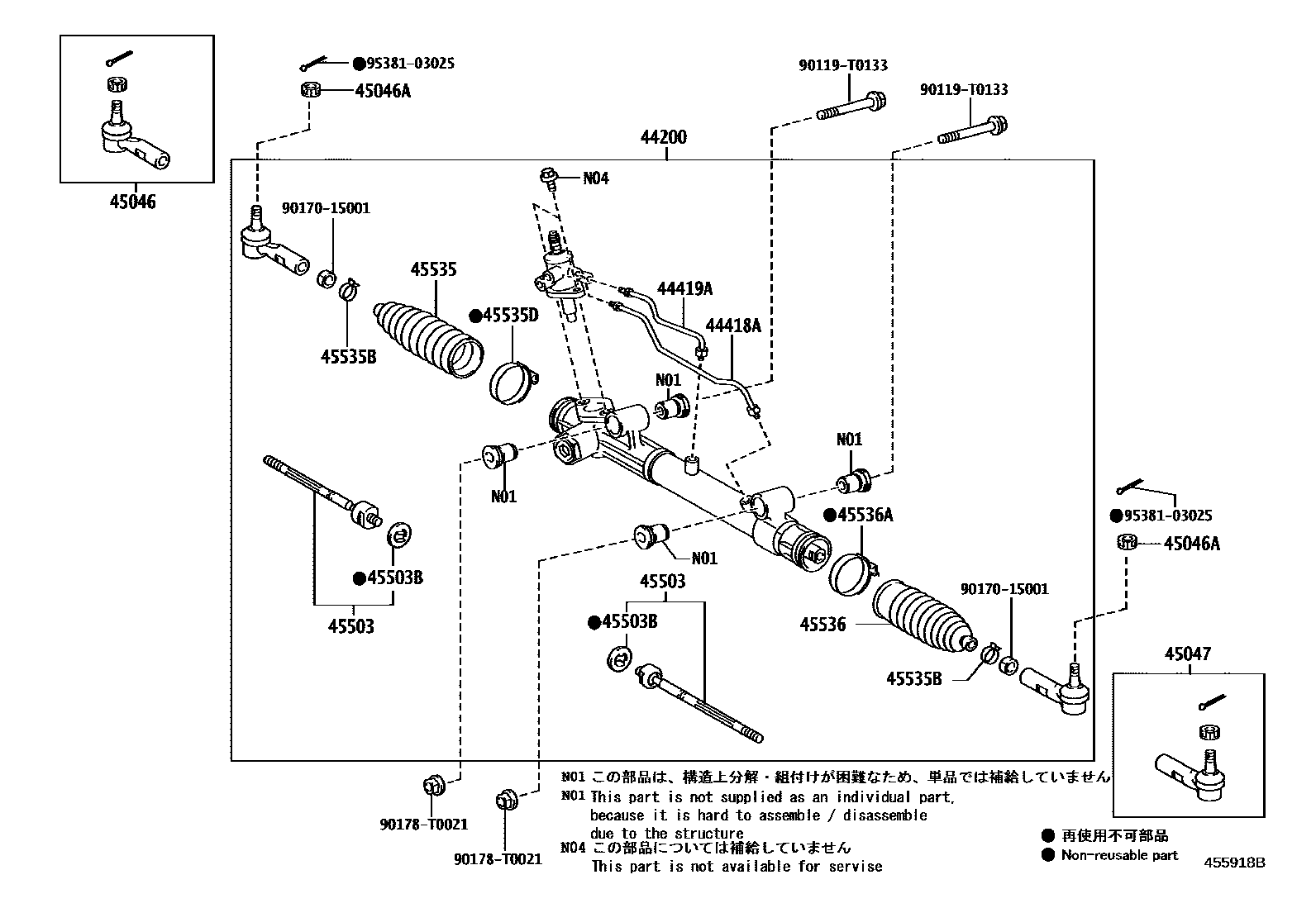

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1POWER STEERING 0005 1

44200LINK ASSY, POWER STEERING

main44200-0K240iKUN40,TGN4#..RHD201107-201111

main44200-0K260iTGN41..GCC201107-201111

main44200-0K400iKUN40,TGN4#..IDN,MA,SA,TH201112-201601

main44200-0K410iKUN40,TGN40..(DLX,GL)..IND201201-201603

main44200-0K420iKUN40,TGN4#..LHD201112-201611

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K100iKUN40,TGN4#..IDN,MA,SA,TH201107-201601

main44418-0K110iKUN40,TGN40..(DLX,GL)..IND201201-201603

main44418-0K130iKUN40,TGN4#..LHD201107-201611

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K100iKUN40,TGN4#..IDN,MA,SA,TH201107-201601

main44419-0K110iKUN40,TGN40..(DLX,GL)..IND201201-201603

main44419-0K130iKUN40,TGN4#..LHD201107-201611

45046END SUB-ASSY, TIE ROD, RH

main45046-09261iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main45046-09320iKUN40,TGN40..IND201201-201603

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0004×2iKUN40,TGN4#201107-201611

45047END SUB-ASSY, TIE ROD, LH

main45046-09261iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main45046-09320iKUN40,TGN40..IND201201-201603

45503END SUB-ASSY, STEERING RACK

main45503-09331×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main45503-09350×2supersedes 45503-09410iKUN40,TGN40..(DLX,GL)..IND201201-201603

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-T0002×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

OD=43

main90214-T0003×2iKUN40,TGN40..IND201201-201603

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-0K010iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46334×2iKUN40,TGN40..IND201201-201603

main90466-T0005×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-T0001iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90460-T0003iKUN40,TGN40..(DLX,GL)..IND201201-201603

45536BOOT, STEERING RACK, NO.2

main45536-0K010iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-T0001iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90460-T0003iKUN40,TGN40..(DLX,GL)..IND201201-201603

90119T0133

main90119-T0133

9017015001

main90170-15001

90178T0021

main90178-T0021

9538103025

main95381-03025

17 parts on this diagram · 5 diagrams in section
