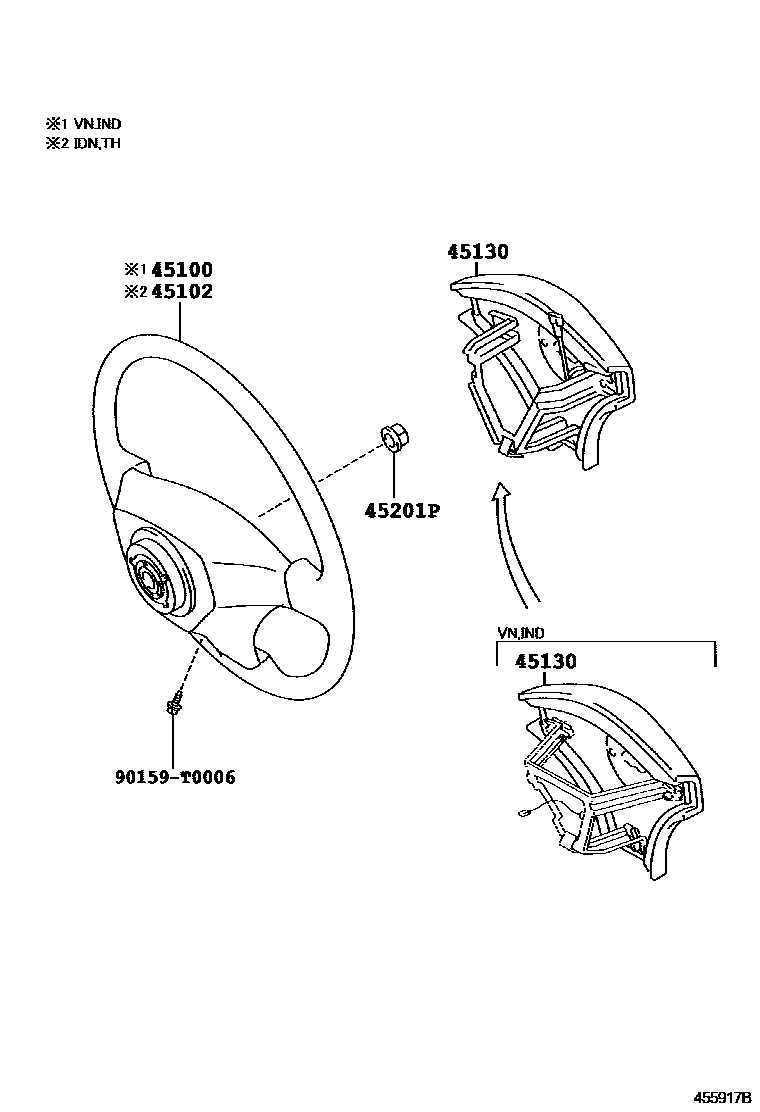

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#,MARK=PA0
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-WITH,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,BLACK,TRIM1#,MARK=PA2
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,DK.GRAY,TRIM10
4-SPOKE,URETHANE,BLACK,TRIM1#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-WITH,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
main45100-0KK00-E0iKUN40,TGN40..4FC..GL..PHL; KUN40,TGN40..GL..(IDN,MA,TH,VN); TGN41..GL..GCC201308-201405
4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,BLACK,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
3-SPOKE,URETHANE,ASH BROWN,TRIM4#
3-SPOKE,URETHANE,STEERING-POWER STEERING,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER ONLY),ASH BROWN,TRIM4#
4-SPOKE,URETHANE,AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER ONLY),ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,BLACK,TRIM4#
45102WHEEL SUB-ASSY, STEERING
ASH BROWN,TRIM4#,LEATHER
ASH BROWN,TRIM4#
ASH BROWN,TRIM4#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM4#
45130BUTTON ASSY, HORN
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
main45130-0K110-E0iTGN40..5F..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..4FC..(DLX,STD)..IDN; TGN41;KUN40,TGN40..DLX..(MA,PHL,TH,VN);KUN40,TGN40..GL..(IDN,MA,PHL,TH,VN)201107-201308
ASH BROWN,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
DK.GRAY,TRIM10
BLACK,TRIM1#
main45130-0K111-E0iTGN40..(DLX,GL)..VN;KUN40,TGN40..GL..PHL;KUN40,TGN4#..GCC,IDN,MA,SA,TH201308-201611
ASH BROWN,TRIM4#
BLACK,TRIM42; SRS AIR BAG-WITH(DRIVER ONLY),BLACK,TRIM42
main45130-0K160-E0supersedes 45130-0K100-E1iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND201201-201401
ASH BROWN,TRIM4#; SRS AIR BAG-WITH(DRIVER ONLY),ASH BROWN,TRIM4#
ASH BROWN,TRIM4#
STEERING-POWER STEERING,ASH BROWN,TRIM4#
45201PNUT, STEERING WHEEL SET
90159T0006
main90159-T0006
5 parts on this diagram · 3 diagrams in section
