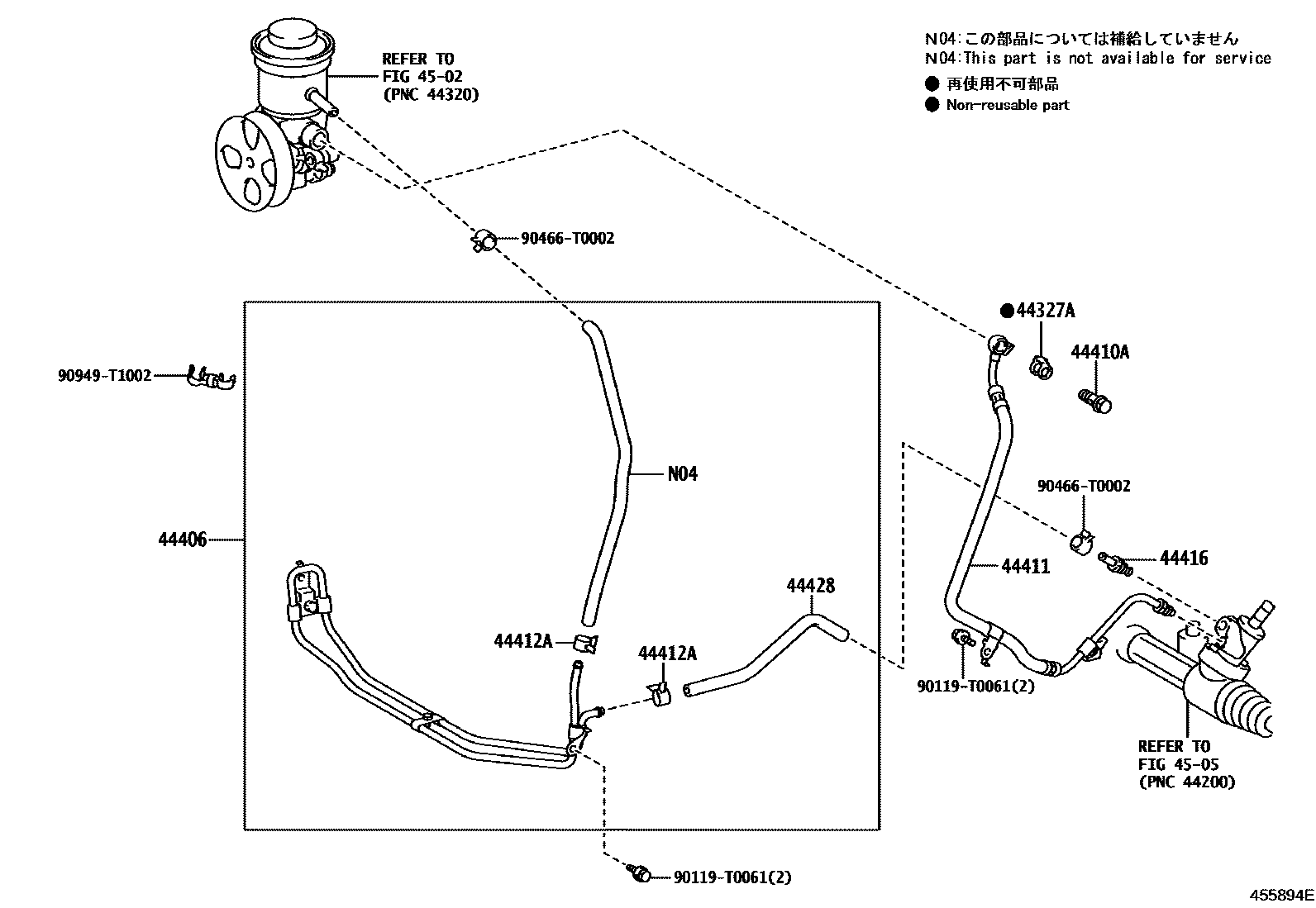

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iTGN4#201107-201611

44406TUBE SUB-ASSY, RETURN

main44406-0K020iKUN40..PHL201202-201603

main44406-0K100iTGN4#..LHD201107-201611

44410TUBE ASSY, PRESSURE FEED

main44410-0K010iTGN4#..RHD201107-201601

main44410-0K050supersedes 44410-0K170iKUN40..IDN201107-201510

main44410-0K170iKUN40..STD..IND201201-201301

STEERING-POWER STEERING

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iTGN4#201107-201611

44411HOSE, PRESSURE FEED

main44411-0K010iKUN40..PHL201202-201603

main44411-0K070iTGN4#..LHD201107-201611

44412ACLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)

main90466-T0002×2iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K010iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611

44428HOSE, RETURN, NO.2

main44428-0K010iKUN40..PHL201202-201603

main44428-0K060iTGN4#..LHD201107-201611

main44428-0K070iTGN4#..RHD201107-201601

main44428-0K080iKUN40..STD..IDN;KUN40..RHD..(DLX,GL,LO)201107-201603

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

90466T0002

main90466-T0002

90949T1002

main90949-T1002

13 parts on this diagram · 5 diagrams in section
