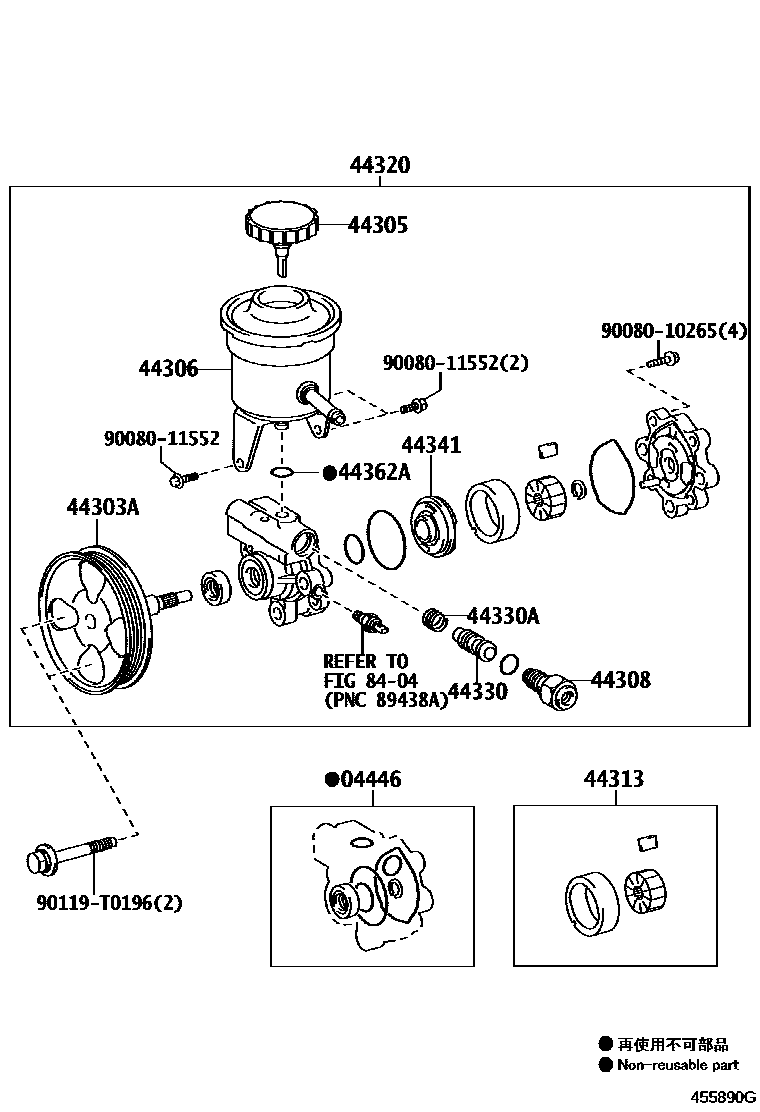

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
main04446-0K010supersedes 04446-0K010iKUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201603 44303ASHAFT SUB-ASSY, W/PULLEY
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
main44305-0K042supersedes 44305-0K041iKUN40..IDN,PHL201208-201603 44306RESERVOIR SUB-ASSY, VANE PUMP OIL
44308UNION SUB-ASSY, PRESSURE PORT
main44308-0K020supersedes 44308-0K020iKUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201603 44313ROTOR, VANE PUMP
main44313-09010supersedes 44313-09010iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 44320PUMP ASSY, VANE
main44310-0K020supersedes 44310-0K020iKUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201603 44330VALVE ASSY, FLOW CONTROL
main44330-0K130iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 MARK A
main44330-0K140iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 MARK B
main44330-0K150iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 MARK C
main44330-0K160iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 MARK D
main44330-0K170iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 MARK E
main44330-0K180supersedes 44330-0K180iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
main90501-T0001supersedes 90501-T0001iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 44341PLATE, VANE PUMP SIDE, FRONT
main44341-06010supersedes 44341-06010iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
main90080-30093supersedes 90080-30093iTGN4#;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201611 15 parts on this diagram · 3 diagrams in section
