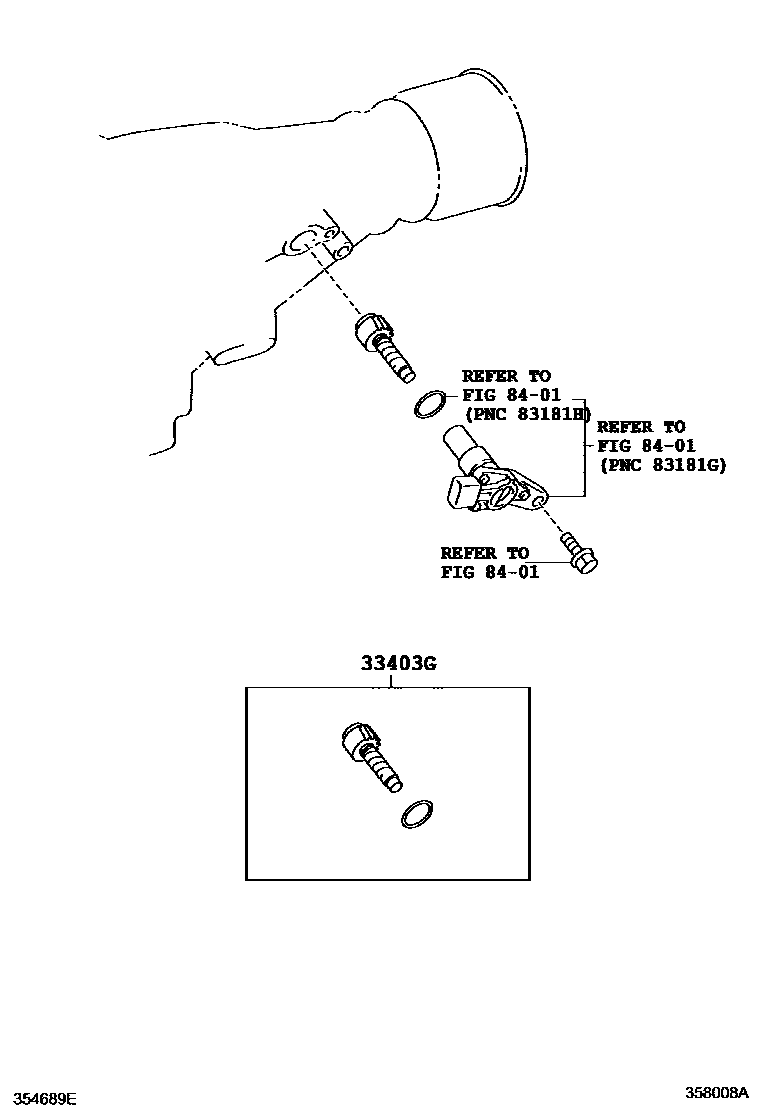

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E,A343E 0002 1A45DE

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29205iTGN41..4FC201107-201510

N=19,MARK 19:6

main33482-29235iTGN40..4FC201107-201611

N=22,MARK 22:6

main33482-59025iKUN40..HDCR201107-201603

N=18,MARK 18:6

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2 parts on this diagram · 2 diagrams in section
