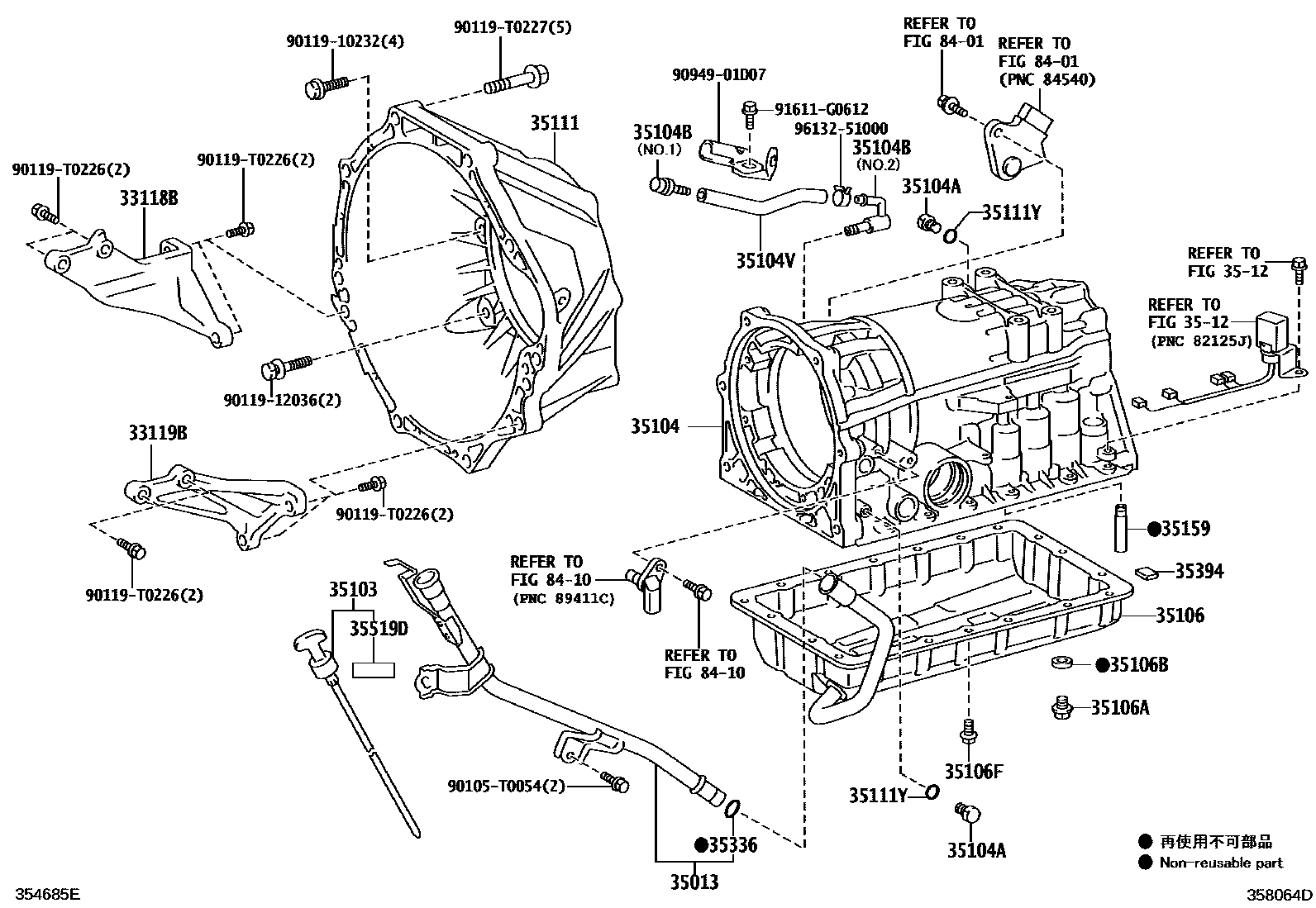

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A343E 0003 1A45DE

33118BPLATE, STIFFENER, RH(ATM)

main33118-04020iKUN40..HDCR201107-201603

33119BPLATE, STIFFENER, LH(ATM)

main33119-0K020iKUN40..HDCR201107-201603

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0K010iTGN40..4FC201107-201611

main35013-0K020iTGN41..4FC201107-201510

main35013-0K030iKUN40..HDCR201107-201603

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0K010iTGN40..4FC201107-201611

main35103-0K020iTGN41..4FC201107-201510

main35103-0K030iKUN40..HDCR201107-201603

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26061iKUN40..HDCR201107-201603

main35104-28060iTGN40..4FC201107-201611

main35104-35022iTGN41..4FC201107-201510

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKUN40,TGN4#..4FC201107-201611

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKUN40,TGN41..4FC201107-201603

NO.2

main90930-03168iKUN40,TGN4#..4FC201107-201611

NO.1

main90930-03174iTGN40..4FC201107-201611

NO.2

35104VHOSE (FOR BREATHER PLUG)

main90445-11118iKUN40,TGN41..4FC201107-201603

main90447-11054iTGN40..4FC201107-201611

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-25050iTGN40..4FC201107-201611

main35106-71010iTGN41..4FC201107-201510

main35106-71020iKUN40..HDCR201107-201603

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iKUN40,TGN4#..4FC201107-201611

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iKUN40,TGN4#..4FC201107-201611

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iTGN40..4FC201107-201301

main90119-06173×14iTGN40..4FC201301-201611

main90119-06513×19iKUN40,TGN41..4FC201107-201603

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-26070iTGN40..4FC201107-201611

main35111-35090iKUN40..HDCR201107-201603

main35111-71010iTGN41..4FC201107-201510

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iKUN40,TGN4#..4FC201107-201611

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35159GASKET, BRAKE DRUM

main35159-30010iKUN40,TGN41..4FC201107-201603

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKUN40,TGN4#..4FC201107-201611

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iKUN40,TGN41..4FC201107-201603

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iKUN40,TGN4#..4FC201107-201611

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90105T0054

main90105-T0054

9011910232

main90119-10232

9011912036

main90119-12036

90119T0226

main90119-T0226

90119T0227

main90119-T0227

9094901D07

main90949-01D07

91611G0612

main91611-G0612

9613251000

main96132-51000

29 parts on this diagram · 3 diagrams in section
