TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

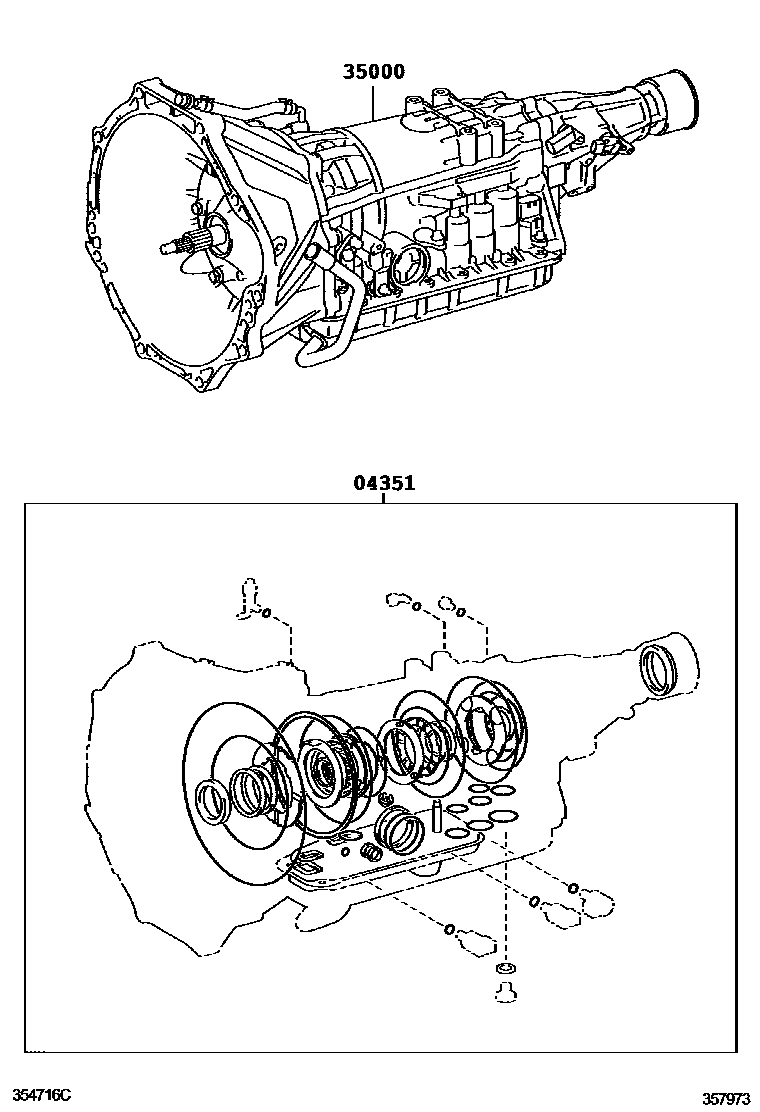

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30630i201107-201603

main04351-35270i201107-201510

main04351-71100i201107-201611

35000TRANSMISSION ASSY, AUTOMATIC

main35000-71020i201107-201510

A343E

main35000-71100i201107-201603

A340E

main35000-71130i201107-201611

A45DE

2 parts on this diagram · 2 diagrams in section
