TRANSMISSION GEAR (MTM)

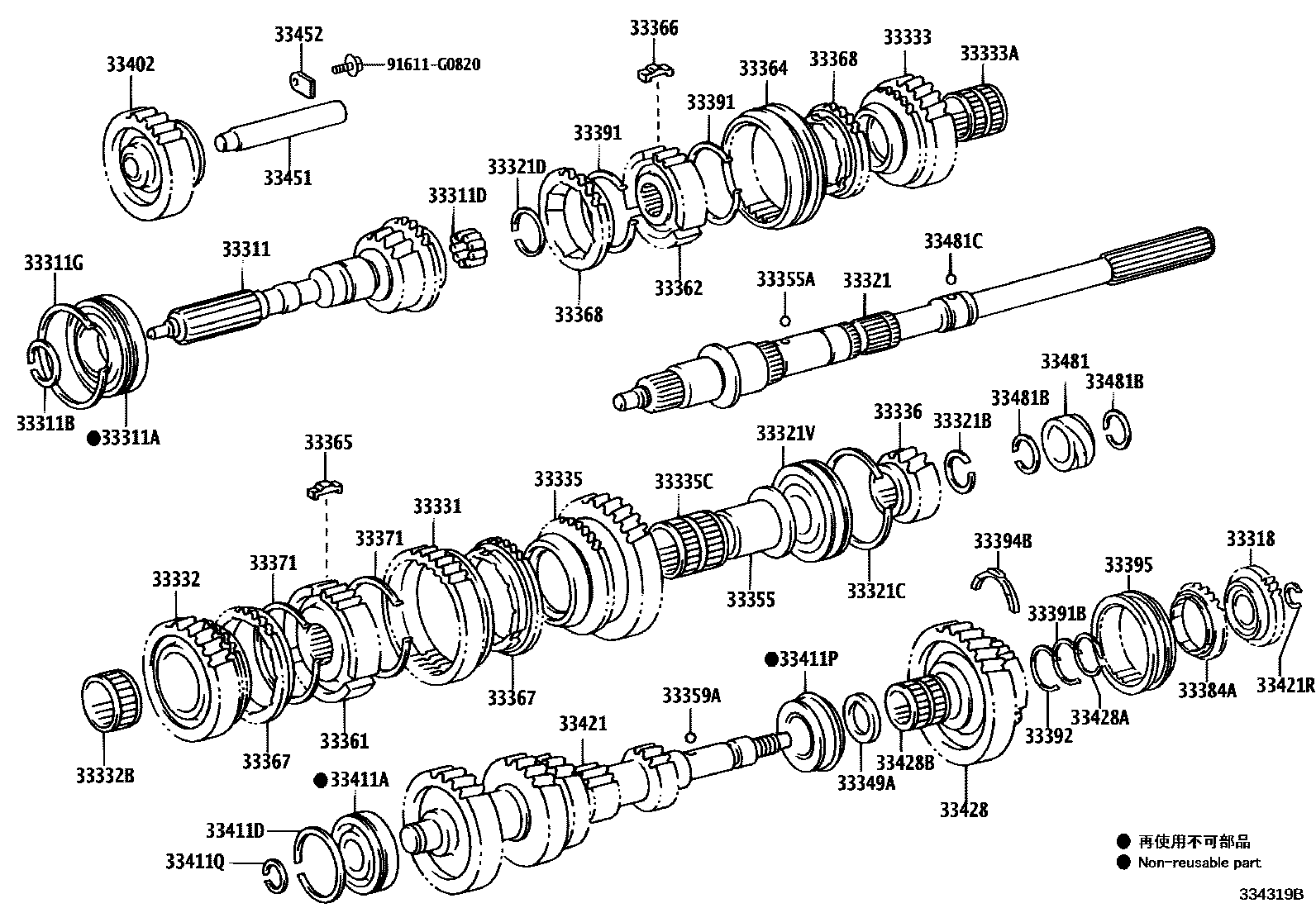

Parts diagram
33311SHAFT, INPUT
main33301-0K010i201107-201208
TYPE C:REFER 33-01
main33301-0K011i201208-201410
TYPE C:REFER 33-01
main33301-0K012i201410-201510
TYPE C:REFER 33-01
main33301-0K050i201107-201305
TYPE D:REFER 33-01
main33301-0K051i201305-201510
TYPE D:REFER 33-01
main33301-0W060i201107-201508
TYPE D:REFER 33-01
main33301-26050i201404-201408
TYPE A:REFER 33-01
main33301-35080i201508-201611
TYPE A:REFER 33-01
main33301-60050i201204-201404
TYPE A:REFER 33-01
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-32024i201107-201508
TYPE D:REFER 33-01
main90363-40050i201204-201408
TYPE A:REFER 33-01
main90363-T0010i201107-201509
TYPE C:REFER 33-01
main90363-T0030i201405-201510
TYPE D:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-30214i201508-201611
T=2.05,MARK 0,TYPE A:REFER 33-01
main90520-30215i201107-201508
T=2.10,MARK 1,TYPE D:REFER 33-01
main90520-30216i201107-201508
T=2.15,MARK 2,TYPE D:REFER 33-01
main90520-30217i201508-201611
T=2.20,MARK 3,TYPE A:REFER 33-01
main90520-30218i201107-201508
T=2.25,MARK 4,TYPE D:REFER 33-01
main90520-30219i201508-201611
T=2.30,MARK 5,TYPE A:REFER 33-01
main90520-38008i201107-201501
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-38009i201107-201510
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-38010i201107-201510
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-38011i201204-201408
T=2.25,MARK D,TYPE A:REFER 33-01
main90520-38012i201107-201510
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-38013i201204-201408
T=2.35,MARK F,TYPE A:REFER 33-01
main90520-38014i201204-201408
T=2.40,MARK G,TYPE A:REFER 33-01
main90520-T0239i201502-201510
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-T0240i201502-201510
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-T0241i201502-201510
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-T0242i201502-201510
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-T0243i201502-201510
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-T0244i201502-201510
T=2.35,MARK F,TYPE D:REFER 33-01
main90520-T0245i201502-201510
T=2.40,MARK G,TYPE D:REFER 33-01
33311DBEARING, INPUT SHAFT
main90361-06002×13i201508-201611
TYPE A:REFER 33-01
main90364-25012i201204-201408
TYPE A:REFER 33-01
main90364-T0014i201107-201510
TYPE C:REFER 33-01
main90364-T0024i201107-201510
TYPE D:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-76002i201508-201611
TYPE A:REFER 33-01
main90520-88001i201204-201408
TYPE A:REFER 33-01
main90520-T0037i201107-201510
TYPE C:REFER 33-01
main90520-T0038i201107-201510
TYPE D:REFER 33-01
33318PIECE, GEAR SPLINE, NO.5
main33318-0K010i201107-201510
TYPE C:REFER 33-01
main33318-0K020i201107-201508
TYPE D:REFER 33-01
main33318-0K040i201107-201510
TYPE D:REFER 33-01
main33318-60030i201204-201408
TYPE A:REFER 33-01
main33318-71010i201508-201611
TYPE A:REFER 33-01
33321SHAFT, OUTPUT
main33321-0B020i201107-201508
TYPE D:REFER 33-01
main33321-0K020i201107-201312
TYPE C:REFER 33-01
main33321-0K060i201107-201510
TYPE D:REFER 33-01
main33321-0K120i201312-201510
TYPE C:REFER 33-01
main33321-35092i201508-201611
TYPE A:REFER 33-01
main33321-35190i201204-201312
TYPE A:REFER 33-01
main33321-35191i201312-201408
TYPE A:REFER 33-01
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-25005i201107-201508
T=2.67-2.72,MARK A,TYPE D:REFER 33-01
main90520-25006i201107-201508
T=2.73-2.78,MARK B,TYPE D:REFER 33-01
main90520-25009i201508-201611
T=2.79-2.84,MARK C,TYPE A:REFER 33-01
main90520-25010i201508-201611
T=2.85-2.90,MARK D,TYPE A:REFER 33-01
main90520-25011i201508-201611
T=2.91-2.96,MARK E,TYPE A:REFER 33-01
main90520-25012i201107-201508
T=2.97-3.02,MARK F,TYPE D:REFER 33-01
main90520-25013i201508-201611
T=3.03-3.08,MARK G,TYPE A:REFER 33-01
main90520-25014i201107-201508
T=3.09-3.14,MARK H,TYPE D:REFER 33-01
main90520-25015i201508-201611
T=3.15-3.20,MARK J,TYPE A:REFER 33-01
main90520-25016i201107-201508
T=3.21-3.26,MARK K,TYPE D:REFER 33-01
main90520-25017i201107-201508
T=3.27-3.32,MARK L,TYPE D:REFER 33-01
main90520-28031i201107-201510
T=2.65,MARK A,TYPE C:REFER 33-01
main90520-28032i201107-201510
T=2.70,MARK B,TYPE C:REFER 33-01
main90520-28033i201204-201408
T=2.75,MARK C,TYPE A:REFER 33-01
main90520-28034i201107-201501
T=2.80,MARK D,TYPE D:REFER 33-01
main90520-28035i201107-201501
T=2.85,MARK E,TYPE D:REFER 33-01
main90520-28037i201204-201408
T=2.90,MARK F,TYPE A:REFER 33-01
main90520-28039i201107-201510
T=2.95,MARK G,TYPE C:REFER 33-01
main90520-28042i201107-201510
T=3.00,MARK H,TYPE C:REFER 33-01
main90520-28043i201107-201510
T=3.05,MARK J,TYPE C:REFER 33-01
main90520-28045i201204-201408
T=3.10,MARK K,TYPE A:REFER 33-01
main90520-28046i201107-201510
T=3.15,MARK L,TYPE C:REFER 33-01
main90520-28047i201107-201510
T=3.20,MARK M,TYPE C:REFER 33-01
main90520-28048i201107-201510
T=3.25,MARK N,TYPE C:REFER 33-01
main90520-28049i201204-201408
T=3.30,MARK P,TYPE A:REFER 33-01
main90520-28050i201107-201510
T=3.35,MARK Q,TYPE C:REFER 33-01
main90520-28051i201107-201510
T=3.40,MARK R,TYPE C:REFER 33-01
main90520-28052i201204-201408
T=3.45,MARK S,TYPE A:REFER 33-01
main90520-T0252i201502-201510
T=2.65,MARK A,TYPE D:REFER 33-01
main90520-T0253i201502-201510
T=2.70,MARK B,TYPE D:REFER 33-01
main90520-T0254i201502-201510
T=2.75,MARK C,TYPE D:REFER 33-01
main90520-T0255i201502-201510
T=2.80,MARK D,TYPE D:REFER 33-01
main90520-T0256i201502-201510
T=2.85,MARK E,TYPE D:REFER 33-01
main90520-T0257i201502-201510
T=2.90,MARK F,TYPE D:REFER 33-01
main90520-T0258i201502-201510
T=2.95,MARK G,TYPE D:REFER 33-01
main90520-T0259i201502-201510
T=3.00,MARK H,TYPE D:REFER 33-01
main90520-T0260i201502-201510
T=3.05,MARK J,TYPE D:REFER 33-01
main90520-T0261i201502-201510
T=3.10,MARK K,TYPE D:REFER 33-01
main90520-T0262i201502-201510
T=3.15,MARK L,TYPE D:REFER 33-01
main90520-T0263i201502-201510
T=3.20,MARK M,TYPE D:REFER 33-01
main90520-T0264i201502-201510
T=3.25,MARK N,TYPE D:REFER 33-01
main90520-T0265i201502-201510
T=3.30,MARK P,TYPE D:REFER 33-01
main90520-T0266i201502-201510
T=3.35,MARK Q,TYPE D:REFER 33-01
main90520-T0267i201502-201510
T=3.40,MARK R,TYPE D:REFER 33-01
main90520-T0268i201502-201510
T=3.45,MARK S,TYPE D:REFER 33-01
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-71221i201508-201611
T=1.65,ID=71.1,TYPE A:REFER 33-01
main90520-81001i201204-201408
T=1.65,ID=81.4,TYPE A:REFER 33-01
main90520-88001i201107-201510
T=2.36-2.46,TYPE D:REFER 33-01
main90520-T0038i201107-201510
T=1.7,TYPE C:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-28010i201508-201611
T=1.85-1.90,MARK D-1,TYPE A:REFER 33-01
main90520-28011i201107-201508
T=1.95-2.00,MARK E-1,TYPE D:REFER 33-01
main90520-28012i201508-201611
T=1.75-1.80,MARK C-1,TYPE A:REFER 33-01
main90520-28013i201107-201508
T=2.05-2.10,MARK F-1,TYPE D:REFER 33-01
main90520-28245i201107-201508
T=1.80-1.85,MARK D,TYPE D:REFER 33-01
main90520-28246i201508-201611
T=1.90-1.95,MARK E,TYPE A:REFER 33-01
main90520-28248i201107-201508
T=2.00-2.05,MARK F,TYPE D:REFER 33-01
main90520-30014i201107-201501
T=1.80,MARK A,TYPE D:REFER 33-01
main90520-30015i201107-201501
T=1.85,MARK B,TYPE D:REFER 33-01
main90520-30016i201107-201501
T=1.90,MARK C,TYPE D:REFER 33-01
main90520-30017i201204-201408
T=1.95,MARK D,TYPE A:REFER 33-01
main90520-30018i201204-201408
T=2.00,MARK E,TYPE A:REFER 33-01
main90520-30019i201204-201408
T=2.05,MARK F,TYPE A:REFER 33-01
main90520-30020i201107-201510
T=2.10,MARK G,TYPE C:REFER 33-01
main90520-T0276i201502-201510
T=1.80,MARK A,TYPE D:REFER 33-01
main90520-T0277i201502-201510
T=1.85,MARK B,TYPE D:REFER 33-01
main90520-T0278i201502-201510
T=1.90,MARK C,TYPE D:REFER 33-01
main90520-T0279i201502-201510
T=1.95,MARK D,TYPE D:REFER 33-01
main90520-T0280i201502-201510
T=2.00,MARK E,TYPE D:REFER 33-01
main90520-T0281i201502-201510
T=2.05,MARK F,TYPE D:REFER 33-01
main90520-T0282i201502-201510
T=2.10,MARK G,TYPE D:REFER 33-01
33321VBEARING (FOR OUTPUT SHAFT CENTER)
main90363-30059i201508-201611
TYPE A:REFER 33-01
main90363-35039i201204-201408
TYPE A:REFER 33-01
main90363-T0011i201107-201312
TYPE D:REFER 33-01
main90363-T0031i201312-201510
TYPE D:REFER 33-01
33331GEAR, REVERSE
main33331-0K010i201107-201203
TYPE C:REFER 33-01
main33331-0K011i201203-201503
TYPE C:REFER 33-01
main33331-0K020i201107-201508
TYPE D:REFER 33-01
main33331-0K040i201107-201510
TYPE D:REFER 33-01
main33331-0K060i201503-201510
TYPE C:REFER 33-01
main33331-60041i201204-201408
TYPE A:REFER 33-01
main33331-71010i201508-201611
TYPE A:REFER 33-01
33332GEAR, 2ND
main33033-0K020i201107-201504
TYPE C:REFER 33-01
main33033-0K060i201107-201510
TYPE D:REFER 33-01
main33033-0K080i201504-201510
TYPE C:REFER 33-01
main33033-0W020i201107-201508
TYPE D:REFER 33-01
main33033-35021i201508-201611
TYPE A:REFER 33-01
main33033-60040i201204-201408
TYPE A:REFER 33-01
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-38002i201508-201611
TYPE A:REFER 33-01
main90364-47003i201204-201408
TYPE A:REFER 33-01
main90364-T0011i201107-201510
TYPE C:REFER 33-01
main90364-T0016i201107-201508
TYPE D:REFER 33-01
main90364-T0026i201107-201510
TYPE D:REFER 33-01
33333GEAR, 3RD
main33034-0K010i201107-201503
TYPE C:REFER 33-01
main33034-0K030i201107-201508
TYPE D:REFER 33-01
main33034-0K050i201107-201505
TYPE D:REFER 33-01
main33034-0K060i201503-201506
TYPE C:REFER 33-01
main33034-0K080i201505-201510
TYPE D:REFER 33-01
main33034-0K110i201507-201510
TYPE C:REFER 33-01
main33034-60030i201204-201408
TYPE A:REFER 33-01
main33034-71010i201508-201611
TYPE A:REFER 33-01
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-35005i201508-201611
TYPE A:REFER 33-01
main90364-38011i201204-201408
TYPE A:REFER 33-01
main90364-T0012i201107-201510
TYPE C:REFER 33-01
main90364-T0017i201107-201508
TYPE D:REFER 33-01
main90364-T0027i201107-201510
TYPE D:REFER 33-01
33335GEAR, 1ST
main33032-0K010i201107-201210
TYPE C:REFER 33-01
main33032-0K011i201210-201504
TYPE C:REFER 33-01
main33032-0K080i201107-201210
TYPE D:REFER 33-01
main33032-0K081i201210-201510
TYPE D:REFER 33-01
main33032-0K120i201504-201510
TYPE C:REFER 33-01
main33032-0W050i201107-201508
TYPE D:REFER 33-01
main33032-26020i201508-201611
TYPE A:REFER 33-01
main33032-60051i201204-201408
TYPE A:REFER 33-01
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-39005i201204-201408
TYPE A:REFER 33-01
main90364-39011i201508-201611
TYPE A:REFER 33-01
main90364-T0010i201107-201510
TYPE C:REFER 33-01
main90364-T0015i201107-201508
TYPE D:REFER 33-01
main90364-T0025i201107-201510
TYPE D:REFER 33-01
33336GEAR, 5TH
main33336-0K010i201107-201405
TYPE C:REFER 33-01
main33336-0K011i201405-201410
TYPE C:REFER 33-01
main33336-0K012i201410-201510
TYPE C:REFER 33-01
main33336-0K030i201107-201507
TYPE D:REFER 33-01
main33336-0K031i201508-201510
TYPE D:REFER 33-01
main33336-0W010i201107-201508
TYPE D:REFER 33-01
main33336-26020i201404-201408
TYPE A:REFER 33-01
main33336-28020i201508-201611
TYPE A:REFER 33-01
main33336-35100i201204-201312
TYPE A:REFER 33-01
main33336-35101i201312-201404
TYPE A:REFER 33-01
33349WASHER, 5TH GEAR THRUST
main33346-0K020i201107-201510
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main33346-71010i201204-201408
TYPE A:REFER 33-01
33349AWASHER, 4TH GEAR
main33349-0K010i201107-201508
T=8.0,TYPE D:REFER 33-01
main33349-35010i201508-201611
OD=43,TYPE A:REFER 33-01
33355RACE, 1ST GEAR BEARING INNER
main33355-0W010i201107-201508
TYPE D:REFER 33-01
main33355-35020i201508-201611
TYPE A:REFER 33-01
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
main90360-06004i201107-201508
TYPE D:REFER 33-01
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
main90360-06004i201107-201508
TYPE D:REFER 33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0K010i201107-201203
TYPE C:REFER 33-01
main33361-0K011i201203-201510
TYPE C:REFER 33-01
main33361-0K060i201107-201510
TYPE D:REFER 33-01
main33361-0W010i201107-201508
TYPE D:REFER 33-01
main33361-35020i201508-201611
TYPE A:REFER 33-01
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K020i201107-201406
TYPE D:REFER 33-01
main33362-0K050i201407-201510
TYPE D:REFER 33-01
main33362-0W010i201107-201508
TYPE D:REFER 33-01
main33362-35040i201508-201611
TYPE A:REFER 33-01
main33362-60030i201204-201404
TYPE A:REFER 33-01
main33362-60031i201404-201408
TYPE A:REFER 33-01
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0K010i201107-201503
TYPE C:REFER 33-01
main33364-0K030i201107-201510
TYPE D:REFER 33-01
main33364-0K060i201503-201510
TYPE C:REFER 33-01
main33364-0W010i201107-201508
TYPE D:REFER 33-01
main33364-26020i201508-201611
TYPE A:REFER 33-01
main33364-60070i201204-201408
TYPE A:REFER 33-01
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-0K020×3i201107-201510
TYPE C:REFER 33-01
main33365-35021×3i201107-201508
TYPE D:REFER 33-01
main33365-35060×3i201107-201510
TYPE D:REFER 33-01
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33365-30060×3i201503-201510
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main33366-0K020×3i201107-201503
TYPE C:REFER 33-01
main33366-35041×3i201508-201611
TYPE A:REFER 33-01
main33366-35050×3i201204-201408
TYPE A:REFER 33-01
33367RING, SYNCHRONIZER, NO.1
main33368-20012×2i201107-201508
TYPE D:REFER 33-01
33368RING, SYNCHRONIZER, NO.2
main33367-14010×2i201107-201508
TYPE D:REFER 33-01
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-14031×2i201107-201508
TYPE D:REFER 33-01
33384ARING, SYNCHRONIZER, OUTER NO.3
main33384-0K010i201405-201510
TYPE C:REFER 33-01
main33384-0K030i201503-201510
TYPE D:REFER 33-01
main33384-60090i201107-201503
TYPE D:REFER 33-01
main33384-71010i201508-201611
TYPE A:REFER 33-01
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
main33371-14010×2i201107-201508
TYPE D:REFER 33-01
33391BSPRING, SYNCHROMESH SHIFTING KEY, NO.4
main33392-71010i201107-201508
TYPE D:REFER 33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-0K010i201312-201510
T/P C:SEE 33-01,NO.2
main33392-60020i201107-201206
T/P D:SEE 33-01,NO.1
main33392-60030i201107-201206
T/P D:SEE 33-01,NO.2
main33392-60040i201201-201312
T/P C:SEE 33-01,NO.2
main33392-71020i201508-201611
TYPE A:REFER 33-01
33394BKEY, SYNCHROMESH SHIFTING, NO.3
main33394-0K010×2i201312-201510
TYPE C:REFER 33-01
main33394-0K020×2i201509-201510
TYPE D:REFER 33-01
main33394-60020×2i201107-201508
TYPE D:REFER 33-01
main33394-71010×2i201107-201508
TYPE D:REFER 33-01
33395SLEEVE, TRANSMISSION HUB, NO.3
main33395-0K010i201107-201503
TYPE C:REFER 33-01
main33395-0K020i201107-201508
TYPE D:REFER 33-01
main33395-0K050i201107-201510
TYPE D:REFER 33-01
main33395-0K060i201503-201510
TYPE C:REFER 33-01
main33395-60050i201204-201408
TYPE A:REFER 33-01
main33395-71010i201508-201611
TYPE A:REFER 33-01
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-0K010i201107-201405
TYPE C:REFER 33-01
main33402-0K020i201107-201508
TYPE D:REFER 33-01
main33402-0K040i201107-201405
TYPE D:REFER 33-01
main33402-0K050i201405-201510
TYPE C:REFER 33-01
main33402-0K060i201405-201510
TYPE D:REFER 33-01
main33402-60030i201204-201408
TYPE A:REFER 33-01
main33402-71010i201508-201611
TYPE A:REFER 33-01
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-25019i201204-201408
TYPE A:REFER 33-01
main90365-25023i201107-201508
TYPE D:REFER 33-01
main90365-25027i201508-201611
TYPE A:REFER 33-01
main90365-T0006i201107-201510
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
main90520-49222i201107-201508
T=1.07,OD=55.6,TYPE D:REFER 33-01
main90520-56002i201204-201408
T=1.07,OD=62,TYPE A:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
main90365-31006i201107-201508
TYPE D:REFER 33-01
main90365-34005i201204-201408
TYPE A:REFER 33-01
main90365-T0007i201107-201510
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
main90520-23057i201107-201501
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-23058i201107-201510
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-23059i201107-201510
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-23060i201107-201501
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-23061i201107-201501
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-23062i201107-201510
T=2.35,MARK F,TYPE C:REFER 33-01
main90520-23089i201508-201611
T=2.10-2.15,TYPE A:REFER 33-01
main90520-23090i201107-201508
T=2.20-2.25,TYPE D:REFER 33-01
main90520-23115i201508-201611
T=2.05-2.10,TYPE A:REFER 33-01
main90520-23143i201107-201508
T=2.15-2.20,TYPE D:REFER 33-01
main90520-23144i201107-201508
T=2.25-2.30,TYPE D:REFER 33-01
main90520-23145i201107-201508
T=2.30-2.35,TYPE D:REFER 33-01
main90520-T0246i201502-201510
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-T0247i201502-201510
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-T0248i201502-201510
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-T0249i201502-201510
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-T0250i201502-201510
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-T0251i201502-201510
T=2.35,MARK F,TYPE D:REFER 33-01
33421GEAR, COUNTER
main33421-0K022i201107-201308
TYPE C:REFER 33-01
main33421-0K023i201308-201410
TYPE C:REFER 33-01
main33421-0K024i201410-201510
TYPE C:REFER 33-01
main33421-0K050i201107-201508
TYPE D:REFER 33-01
main33421-0K090i201107-201306
TYPE D:REFER 33-01
main33421-0K091i201306-201510
TYPE D:REFER 33-01
main33421-60180i201204-201305
TYPE A:REFER 33-01
main33421-60181i201305-201404
TYPE A:REFER 33-01
main33421-60220i201404-201408
TYPE A:REFER 33-01
main33421-71030i201508-201611
TYPE A:REFER 33-01
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
main90520-19008i201107-201508
T=2.85,TYPE D:REFER 33-01
main90520-19009i201107-201508
T=2.90,TYPE D:REFER 33-01
main90520-19010i201107-201508
T=2.95,TYPE D:REFER 33-01
main90520-19011i201508-201611
T=3.00,TYPE A:REFER 33-01
main90520-19012i201508-201611
T=3.05,TYPE A:REFER 33-01
main90520-19013i201107-201508
T=3.10,TYPE D:REFER 33-01
main90520-19014i201508-201611
T=3.15,TYPE A:REFER 33-01
main90520-22016i201204-201408
T=2.85,MARK A,T/P A:SEE 33-01,NO.1
main90520-22017i201204-201408
T=2.90,MARK B,T/P A:SEE 33-01,NO.1
main90520-22018i201204-201408
T=2.95,MARK C,T/P A:SEE 33-01,NO.1
main90520-22019i201107-201510
T=3.00,MARK D,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22020i201107-201510
T=3.05,MARK E,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22021i201107-201510
T=3.10,MARK F,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22022i201107-201510
T=3.15,MARK G,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-33021i201107-201510
T=1.00,T/P C:SEE 33-01,NO.2,T/P D:SEE 33-01,NO.2
33428GEAR, COUNTERSHAFT 5TH
main33428-0K010i201107-201308
TYPE C:REFER 33-01
main33428-0K011i201308-201510
TYPE C:REFER 33-01
main33428-0K040i201107-201508
TYPE D:REFER 33-01
main33428-0K060i201107-201306
TYPE D:REFER 33-01
main33428-0K061i201306-201510
TYPE D:REFER 33-01
main33428-26020i201404-201408
TYPE A:REFER 33-01
main33428-60040i201204-201305
TYPE A:REFER 33-01
main33428-60041i201305-201404
TYPE A:REFER 33-01
main33428-71010i201508-201611
TYPE A:REFER 33-01
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
main90520-34029i201107-201508
TYPE D:REFER 33-01
33428BBEARING (FOR COUNTER 5TH GEAR)
main90364-26002i201508-201611
TYPE A:REFER 33-01
main90364-30009i201204-201408
TYPE A:REFER 33-01
main90364-T0013i201107-201510
TYPE C:REFER 33-01
main90364-T0018i201107-201508
TYPE D:REFER 33-01
main90364-T0028i201107-201510
TYPE D:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
main33451-0K010i201107-201510
TYPE C:REFER 33-01
main33451-0K020i201107-201508
TYPE D:REFER 33-01
main33451-0K040i201107-201510
TYPE D:REFER 33-01
main33451-28011i201508-201611
TYPE A:REFER 33-01
main33451-35030i201204-201408
TYPE A:REFER 33-01
33452STOPPER, REVERSE IDLER GEAR SHAFT
main33452-0K010i201107-201508
TYPE D:REFER 33-01
main33452-36030i201508-201611
TYPE A:REFER 33-01
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-20070i201508-201611
N=5,MARK 5X17-19,TYPE A:REFER 33-01
main33481-22010i201508-201603
N=6,MARK 6X18-20,TYPE A:REFER 33-01
main33481-35130i201204-201408
N=10,MARK 10X31-33,TYPE A:REFER 33-01
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
main90520-26061×2i201508-201611
T=1.50,OD=31.3,TYPE A:REFER 33-01
main90520-28030×2i201204-201408
T=1.5,TYPE A:REFER 33-01
main90520-T0283×2i201502-201510
T=1.5,TYPE D:REFER 33-01
33481CBALL, REVERSE SHIFT RESTRICT
main90360-06004i201107-201510
TYPE C:REFER 33-01; TYPE D:REFER 33-01
91611G0820
main91611-G0820

54 parts on this diagram · 2 diagrams in section

TRANSMISSION GEAR (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
