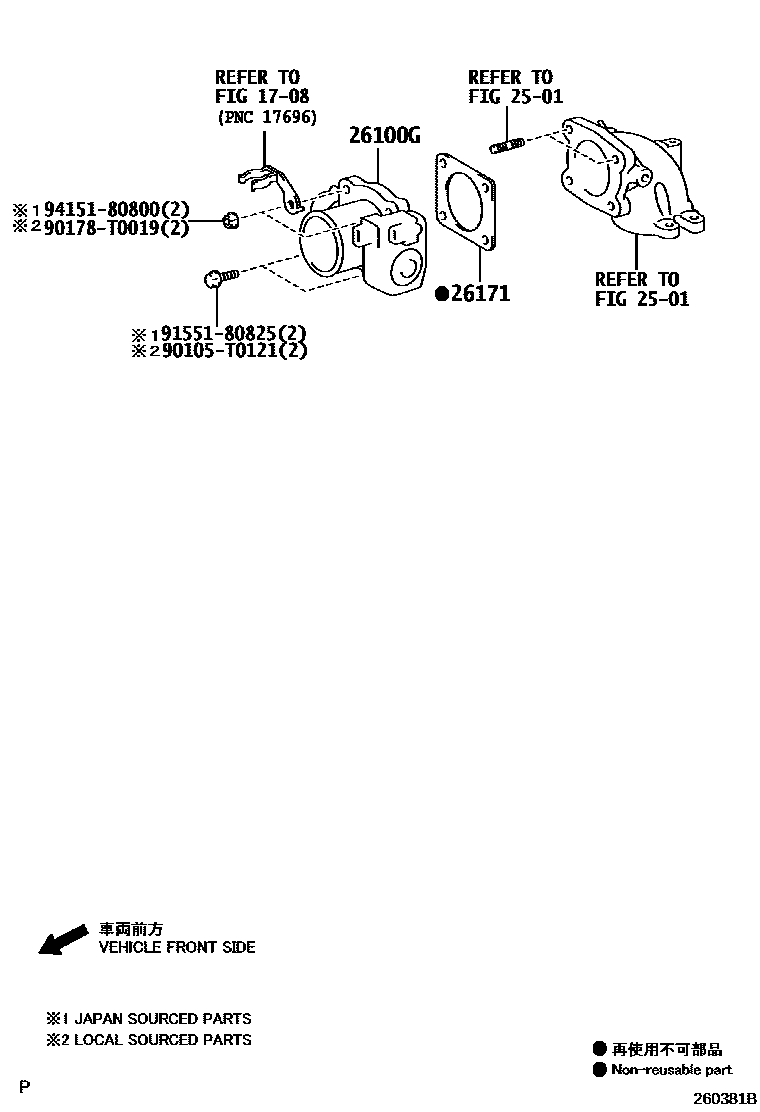

VENTURI

1708VACUUM PIPING

→ Go to FIG 17-08

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-0L010i2KDFTV..KUN40201107-201603

*130

main26100-30070i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

26171GASKET, VENTURI

main26171-0L020i2KDFTV..KUN40201107-201603

*130

main26171-30020i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

90105T0121

main90105-T0121

90178T0019

main90178-T0019

9155180825

main91551-80825

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
