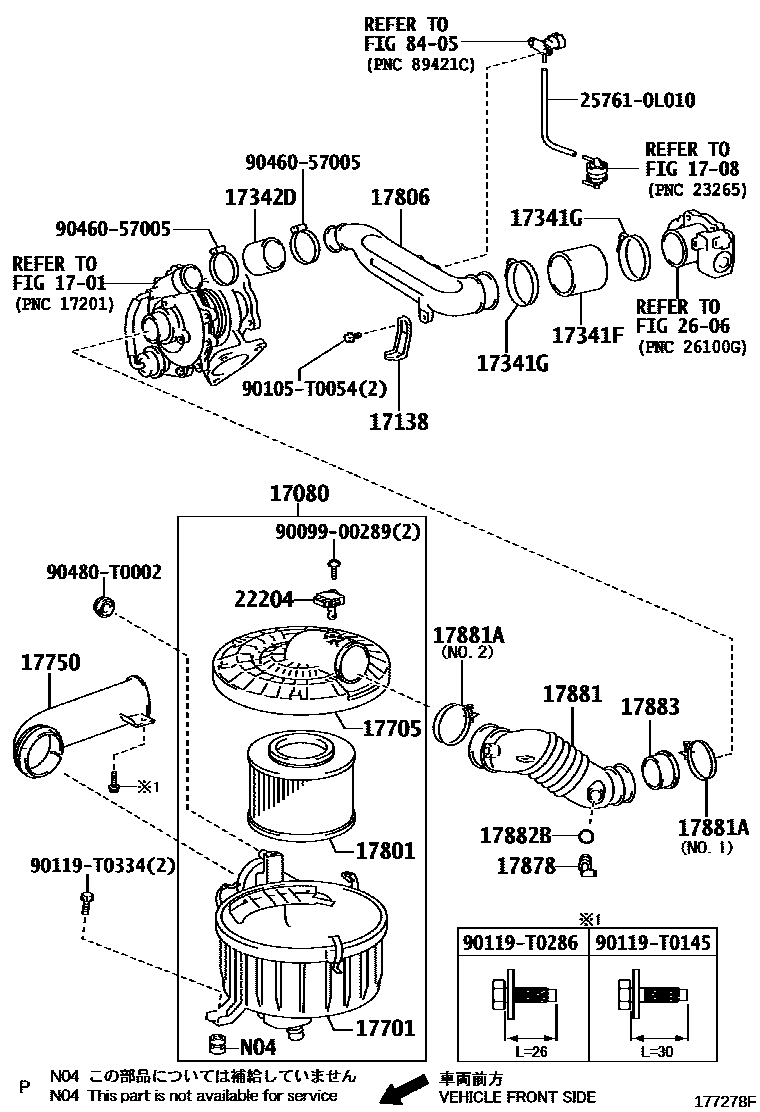

AIR CLEANER

0001 1 0002 1 0003 1EURO 4 REGULATION 0004 1

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

17080CLEANER ASSY, AIR W/AIR FLOW METER

main17080-0L081i2KDFTV..KUN40..PHL201202-201603

main17080-0L120i2KDFTV..KUN40..IDN201107-201510

17138STAY, INTAKE PIPE OR HOSE

main17138-0L010i2KDFTV..KUN40..IDN,PHL201107-201603

17341FHOSE, AIR, NO.1

main17341-30060i2KDFTV..KUN40201107-201603

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90460-80006×2i2KDFTV..KUN40201107-201603

17342DHOSE, AIR, NO.2

main17342-30050i2KDFTV..KUN40..IDN,PHL201107-201603

17701CASE SUB-ASSY, AIR CLEANER

main17701-0C081i1TRFE..TGN40..MA201110-201601

main17701-0C091i1TRFE,2TRFE..TGN4#..GCC,IDN,PHL,SA,TH,VN201107-201611

main17701-0C121i2KDFTV..KUN40..IND201201-201603

main17701-0L081i2KDFTV..KUN40..PHL201202-201603

17705CAP SUB-ASSY, AIR CLEANER

main17705-0C070i1TRFE..TGN40..MA201110-201601

main17705-0C080i1TRFE,2TRFE..TGN4#..GCC,IDN,PHL,SA,TH,VN201107-201611

main17705-0C110i1TRFE..TGN40..IND201201-201501

main17705-0L100i2KDFTV..KUN40..PHL201202-201603

main17705-0L160i2KDFTV..KUN40..IDN201107-201510

main17705-0L200i2KDFTV..KUN40..IND201201-201603

17750COVER ASSY, AIR CLEANER INLET, SEAL

main17750-0C020i1TRFE,2TRFE..TGN4#201107-201611

main17751-0L020i2KDFTV..KUN40..IDN201107-201510

main17751-0L050i2KDFTV..KUN40..IND201201-201603

main17751-0L070i2KDFTV..KUN40..PHL201202-201603

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0C010i2KDFTV..KUN40201107-201603

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17113-0L020supersedes 17113-0L040i2KDFTV..KUN40..IDN,PHL201107-201603

17878PIPE, INTAKE AIR CONNECTOR, NO.3

main17878-0L011i2KDFTV..KUN40..IND201201-201603

main17878-0L021i2KDFTV..KUN40..IDN201107-201510

main17878-0L030i2KDFTV..KUN40..PHL201202-201603

17881HOSE, AIR CLEANER, NO.1

main17881-0C050i1TRFE..TGN40..IND,MA201110-201601

main17881-0C060i1TRFE,2TRFE..TGN4#..GCC,IDN,PHL,SA,TH201107-201603

main17881-0C100i1TRFE..TGN40..VN201202-201611

main17881-0L082i2KDFTV..KUN40..IND201201-201603

main17881-0L150i2KDFTV..KUN40..IDN201107-201510

main17881-0L160i2KDFTV..KUN40..PHL201202-201603

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0004i2KDFTV..KUN40201107-201603

NO.1

main90460-T0005i2KDFTV..KUN40201107-201603

NO.2

17882BCLAMP(FOR COOL AIR INTAKE)

main90466-30001i2KDFTV..KUN40201401-201603

main90467-31110i2KDFTV..KUN40201107-201312

17883HOSE, AIR CLEANER, NO.3

main17883-0L010i2KDFTV..KUN40..IND201201-201603

main17883-0L020i2KDFTV..KUN40..IDN201107-201510

main17883-0L030i2KDFTV..KUN40..PHL201202-201603

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1TRFE,2TRFE..TGN4#201107-201611

main22204-0L010i2KDFTV..KUN40201107-201603

2606VENTURI

→ Go to FIG 26-06

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

257610L010HOSE, VACCUM TRANSMITTING, NO.1

main25761-0L010

9009900289

main90099-00289

90105T0054

main90105-T0054

90119T0145

main90119-T0145

90119T0286

main90119-T0286

90119T0334

main90119-T0334

9046057005

main90460-57005

90480T0002

main90480-T0002

28 parts on this diagram · 4 diagrams in section
